Mercedes A1119900029 - БОЛТ М8

2538/L,2544/L,3238,3244,2550/L 658.043

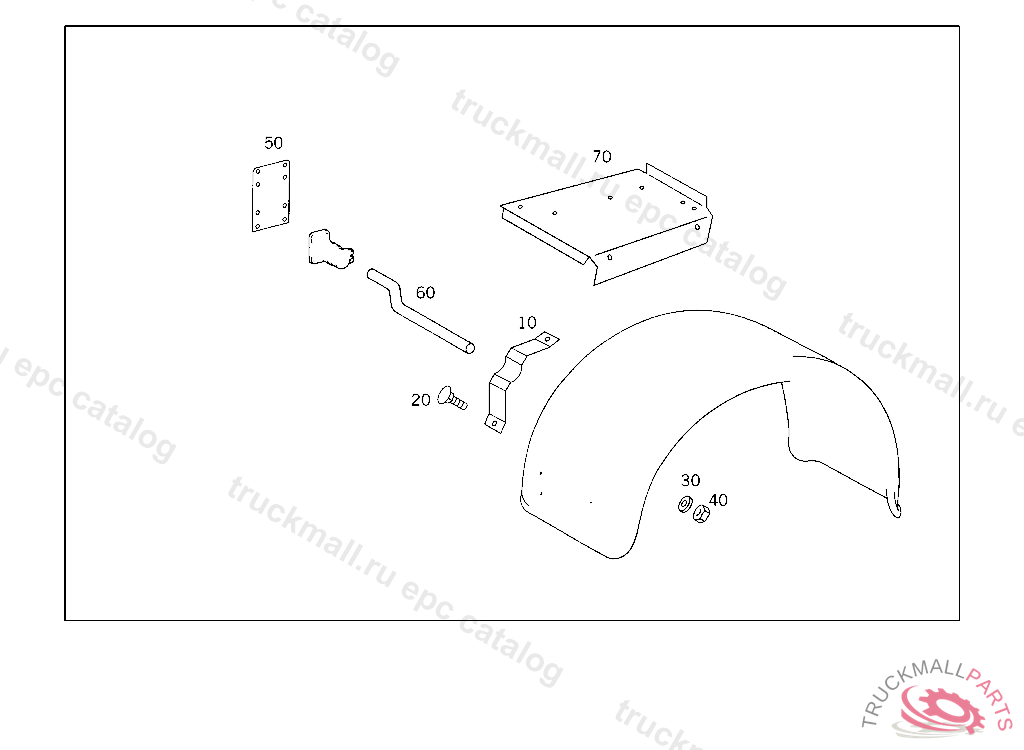

52 SHEET METAL,AIR INTAKE - 001 FENDERS ON FRONT AXLE II

Поз.
Артикул
Описание
10
A6555229440
BRACKET ,K 104588
20
A1119900029
SCREW BRACKET TO FENDER,K 104588
20
A2013231371
SCREW , Replaced By: A1119900029
30
A6312670276
WASHER FENDER BRACKET TO FENDER, Replaced By: A0049902582
30
A1159904540
WASHER , Replaced By: A6312670276
40
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
40
N913004008004
NUT , Replaced By: N913004008001
50
A6235210049
MOUNTING PLATE FRONT FENDER
60
A0805220040
BRACKET FENDER FIXTURE
70
A6255202133
SUPPORT AIR CLEANER
999
A6525220701
FENDER , TO BE ADAPTED DURING ASSEMBLY
