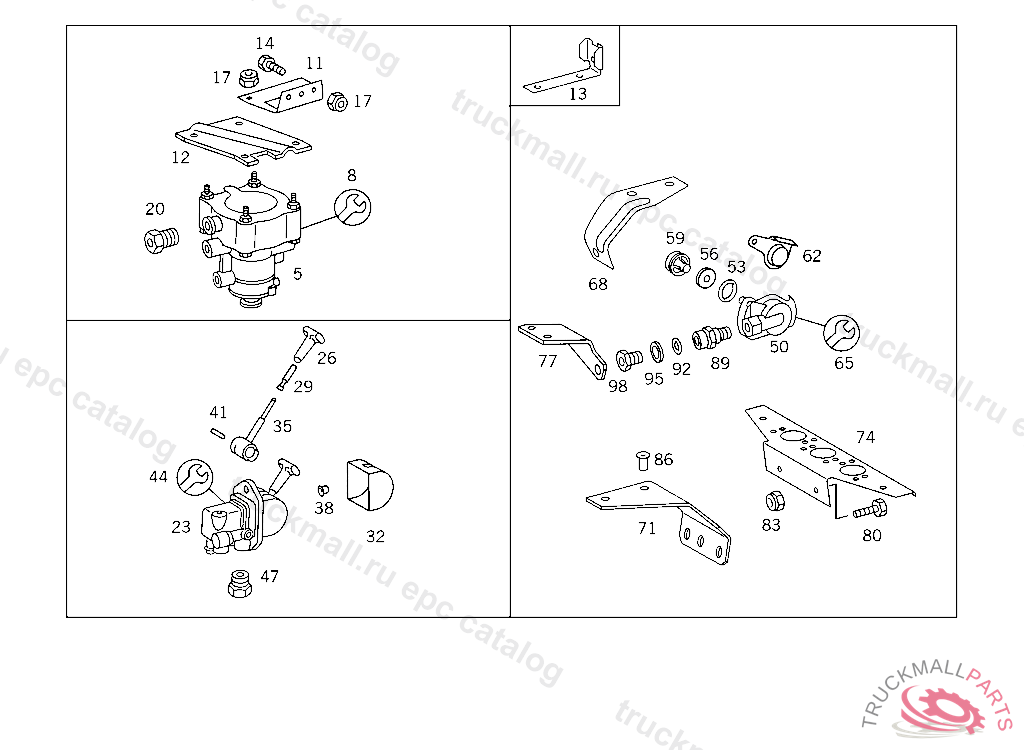

Поз.
Артикул
Описание
5
BRAKE VALVE (TRAILER CONTROL VALVE) "GRAU", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE VALVE (TRAILER CONTROL VALVE) "GRAU", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE VALVE (TRAILER CONTROL VALVE) "BOSCH"
5
BRAKE VALVE (TRAILER CONTROL VALVE) "BOSCH"
5
TRAILER CONTROL VALVE (TRAILER CONTROL VALVE) "KNORR"
5
BRAKE VALVE (TRAILER CONTROL VALVE) "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE VALVE (TRAILER CONTROL VALVE) "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
REPAIR KIT TRAILER CONTROL VALVE "GRAU"
8
REPAIR KIT TRAILER CONTROL VALVE "WABCO"
11
BRACKET TRAILER CONTROL VALVE
11
BRACKET TRAILER CONTROL VALVE,K 213085
11
BRACKET TRAILER CONTROL VALVE,5 749903
12
BRACKET TRAILER CONTROL VALVE
13
BRACKET COMPRESSED AIR PIPING
13
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
14
SCREW , Replaced By: N304017008018
14
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
14
SCREW , Replaced By: N910142008009
14
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
14
SCREW SUPPORT TO FENDER
14
SCREW CLAMP TO BRACKET,5 597426
14
SCREW , Replaced By: N304017008034
14
SCREW BRACKET TO CROSS CONNECTION STRUT
14
SCREW CLAMP TO BRACKET,5 597426
14
SCREW , Replaced By: N304017008023
14
SCREW , Replaced By: N910142008001
14
SCREW CABLE HARNESS MOUNTING
14
SCREW BRACKET TO BRACKET
14
NUT BRACKET TO BRACKET
17
NUT , Replaced By: N913004008001
17
NUT BRACKET TO BRACKET
17
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
17
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
17
NUT BRACKET TO BRACKET
17
NUT BRACKET TO BRACKET
20
SCREW. UNION SCREW , Replaced By: A0009973734
20
SCREW. UNION SCREW LINE CONNECTION
20
SCREW. UNION SCREW LINE CONNECTION
23
VALVE PARKING BRAKE WITH TRAILER CONTROL "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
23
VALVE PARKING BRAKE WITH TRAILER CONTROL "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
23
VALVE PARKING BRAKE WITH TRAILER CONTROL "BOSCH"
23
VALVE PARKING BRAKE WITH TRAILER CONTROL "KNORR"
26
HANDLETO 002 430 93 81
29
BUSHING"WABCO"
29
BUSHINGTO 002 430 93 81
32
PROTECTIVE CAP PARKING BRAKE VALVE WABCO
32
PROTECTIVE CAPTO 002 430 93 81
35
LEVER PARKING BRAKE VALVE WABCO
35
LEVERTO 002 430 93 81
38
SPRING RETAINERTO 002 430 93 81
41
PINTO 002 430 90 81
41
PINTO 002 430 93 81
44
REPAIR KIT HAND BRAKE VALVE "WABCO"
44
REPAIR KITBOSCH,TO 002 430 93 81
47
SCREW. UNION SCREW , Replaced By: A0009973734
47
SCREW. UNION SCREW LINE CONNECTION
50
BRAKE LINE COUPLING BRAKE,YELLOW "GRAU"
50
BRAKE LINE COUPLING BRAKE,YELLOW "KNORR"
50
BRAKE LINE COUPLING BRAKE,YELLOW "BOSCH"
50
BRAKE LINE COUPLING BRAKE,YELLOW "WABCO"
50
BRAKE LINE COUPLING BRAKE,YELLOW "WABCO"
50
BRAKE LINE COUPLING SUPPLY, RED "GRAU"
50
BRAKE LINE COUPLING SUPPLY, RED "KNORR"
50
BRAKE LINE COUPLING SUPPLY, RED "BOSCH"
50
BRAKE LINE COUPLING SUPPLY, RED "BOSCH"
50
BRAKE LINE COUPLING SUPPLY, RED "WABCO"
53
SEAL RING33X2.5 MM,BOSCH
53
SEAL RING33X2.5 MM,BOSCH
53
SEAL RING25X2 MM,BOSCH
53
SEAL RING25X2 MM,BOSCH
53
SEAL RING30X2 MM,BOSCH
53
SEAL RING30X2 MM,BOSCH
56
SEAL RING22X4 MM,BOSCH
56
SEAL RING22X4 MM,BOSCH
56
SEAL RING22X4 MM,BOSCH
56
SEAL RING"GRAU"
59
VALVE TAPPET22X4 MM,BOSCH
59
VALVE TAPPET22X4 MM,BOSCH
62
COVER BRAKE,YELLOW "WABCO"
62
COVER SUPPLY, RED "WABCO"
65
REPAIR KIT BRAKE LINE COUPLING "WABCO"
68
BRACKET AT FRAME
68
BRACKET AT FRAME
71
BRACKET AT FRAME
71
BRACKET AT FRAME
74
BRACKET TRAILER PLUG SOCKET,BRAKE LINE COUPLINGS
77
BRACKET BRAKE LINE COUPLING,"BRAKE",K 119510 FROM IDENT NO.,SEE SPECIAL VERSION 46347, 46753, 46756
80
SCREW END PIECE TO EXHAUST PIPE M 10X25
83
NUT STRAP TO BRACKET
83
NUT , Replaced By: N910113010000
86
RIVET14X55 MM, TO BE ADAPTED DURING ASSEMBLY
86
RIVET14X55 MM, TO BE ADAPTED DURING ASSEMBLY
89
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "40",5 509133
92
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
95
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
98
SCREW. UNION SCREW LINE CONNECTION
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
HANDLE"WABCO"
999
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
NUT CHECK VALVE TO AIR RESERVOIR
