Поз.
Артикул
Описание

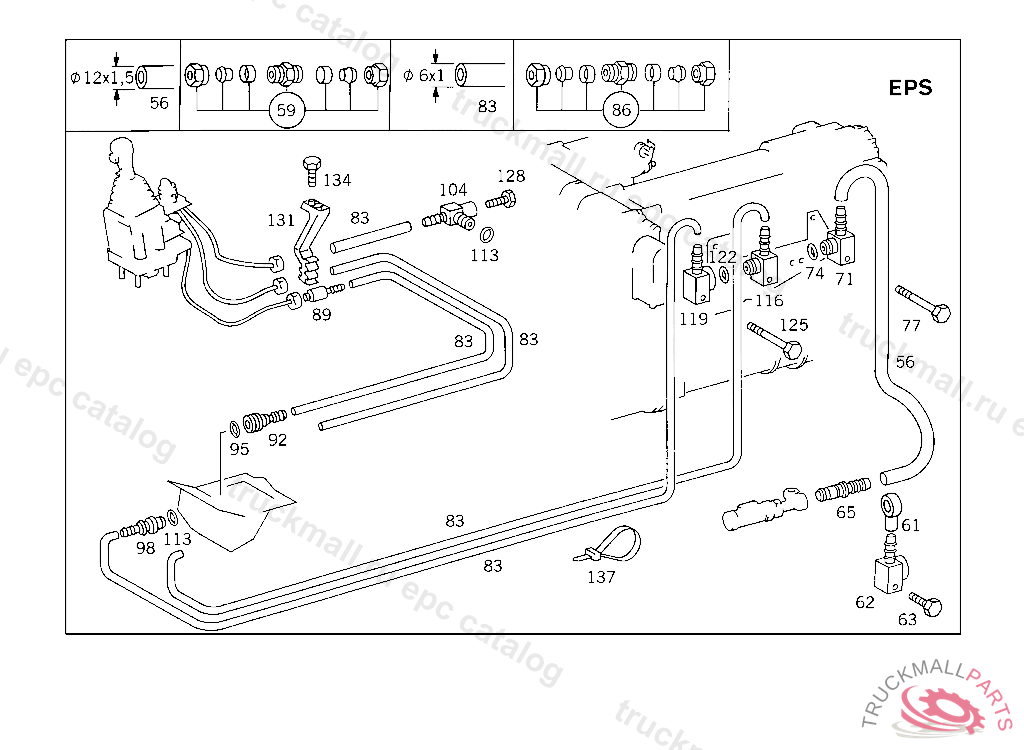

56
HOSE , Replaced By: A0009872827
56
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
56
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
56
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
59
FITTING (PARTS KIT),LINE RUPTURE
61
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
62
CONNECTOR , Replaced By: A0019904078
62
CONNECTOR RELEASE BEARING LUBRICATION
63
SCREW CONNECTOR TO TRANSMISSION
65
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
71
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
74
SEAL RING , Replaced By: A0229973948
74
SEAL RING CONNECTOR 11.8X2 MM
77
SCREW CONNECTOR
83
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
83
PLASTIC PIPE RISING PIPE 4X6 MM
83
PLASTIC PIPE RISING PIPE 4X6 MM
86
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
89
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
92
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
95
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
98
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
104
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
113
SEAL RING
116
CONNECTOR
119
CONNECTOR
122
SEAL RING , Replaced By: A0229973948
122
SEAL RING CONNECTOR 11.8X2 MM
128
SCREW EXHAUST BRAKE SEPARATION POINT
131
BRACKET LINE MOUNTING
134
SCREW , Replaced By: N304017006018
134
SCREW COVER PLATE TO COVER PLATE M 6 X 12
137
LOOM TIE LINE MOUNTING 280 MM
