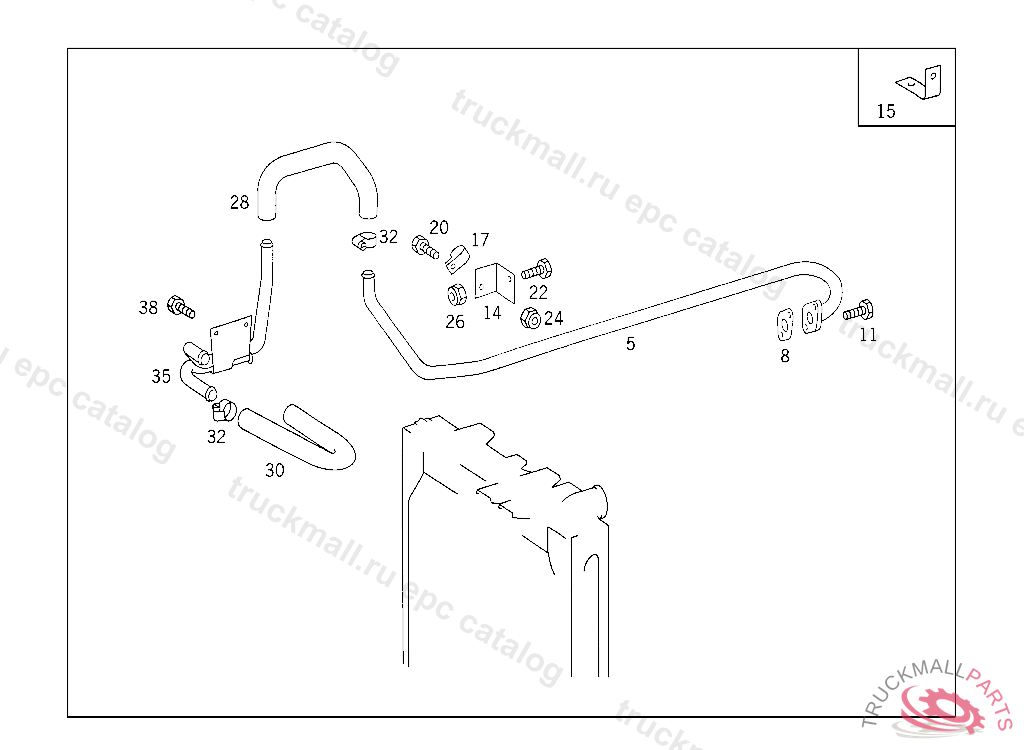

Поз.
Артикул
Описание
5
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
8
GASKET HEATING PIPE TO ENGINE
11
SCREW PIPE CLAMP
11
SCREW , Replaced By: N304017008021
14
BRACKET FEED LINE TO THERMOSTAT
15
ANGLE LINE MOUNTING
17
CLAMP FEED LINE TO THERMOSTAT
20
SCREW PUMP TO BRACKET
20
SCREW PUMP TO BRACKET
20
SCREW , Replaced By: N304017006016
20
SCREW COVER PLATE TO BRACKET
24
NUT PUMP TO BRACKET
24
NUT PUMP TO BRACKET
24
NUT , Replaced By: N913004006001
28
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR,K 068297
28
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
28
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
30
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
30
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
32
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
32
CLAMP , Replaced By: N000000000667
35
LINE HEATING AND BREATHING,K 096750
35
LINE HEATING AND BREATHING,5 708091K 096749
35
LINE HEATING LINES,K 003669
35
LINE FEED AND RETURN LINES TO HEATING
35
LINE HEATING AND BREATHING
38
SCREW PUMP TO BRACKET
38
SCREW , Replaced By: N304017006016
