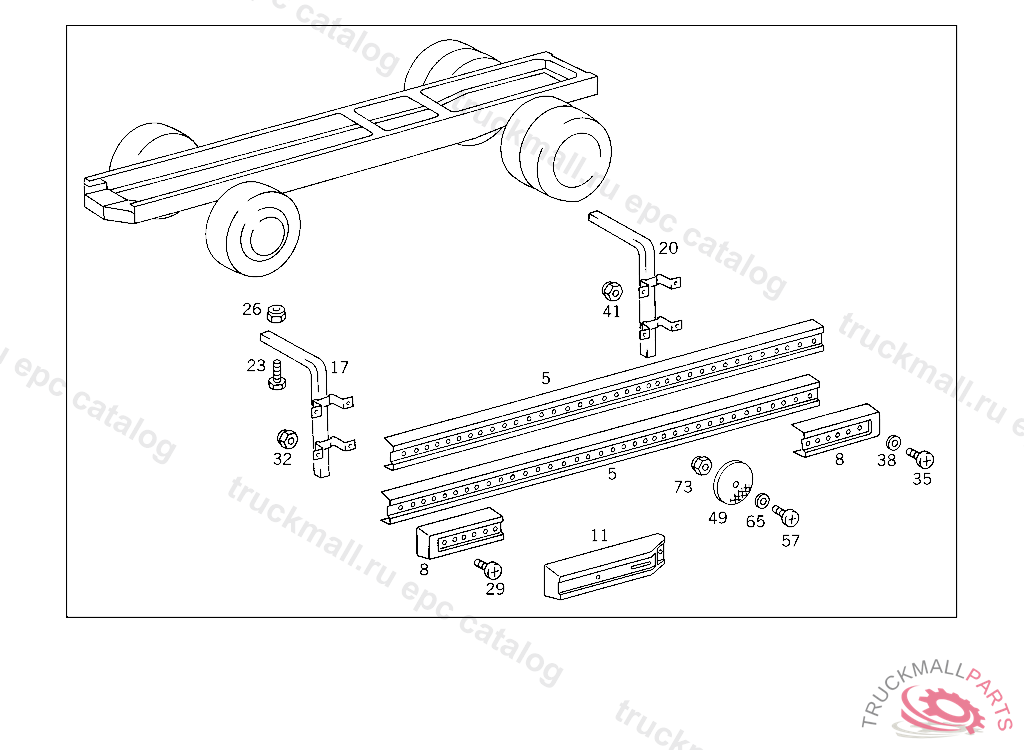

Поз.
Артикул
Описание
5
PROTECTIVE RAIL UNDERRUN PROTECTION,LEFT 4590 MM, TO BE ADAPTED DURING ASSEMBLY
5
PROTECTIVE RAIL UNDERRUN PROTECTION,LEFT 4590 MM, TO BE ADAPTED DURING ASSEMBLY
8
BUMPERETTE RAIL
11
CAP UNDERRUN PROTECTION
11
CAP LEFT AND RIGHT,FRONT AND REAR
17
BRACKET UNDERRUN PROTECTION
20
BRACKET UNDERRUN PROTECTION
23
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
23
SCREW END PIECE TO EXHAUST PIPE M 10X25
23
SCREW END PIECE TO EXHAUST PIPE M 10X25
26
NUT , Replaced By: N910113010000
26
NUT STRAP TO BRACKET
29
SCREW BUSHING AND LEVER TO CAB
29
SCREW BUSHING AND LEVER TO CAB
32
NUT , Replaced By: N913004008001
32
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
35
SCREW , Replaced By: N304017008016
35
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
SCREW EXHAUST MUFFLER TO STRAP
35
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
SCREW EXHAUST MUFFLER TO STRAP
38
WASHER , Replaced By: N000125008443
38
WASHER EXHAUST MUFFLER TO STRAP
38
WASHER EXHAUST MUFFLER TO STRAP
41
NUT , Replaced By: N913004008001
41
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
41
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
41
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
41
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
49
REFLECTOR AMBER
49
REFLECTOR AMBER
49
REFLECTOR REAR LEFT AND RIGHT
49
REFLECTOR FENDER
49
REFLECTOR FENDER
57
SCREW REFLECTOR TO UNDERRUN PROTECTION
65
WASHER , Replaced By: N009021005205
65
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
73
NUT TWO-WAY VALVE TO BRACKET
