Поз.
Артикул
Описание
5

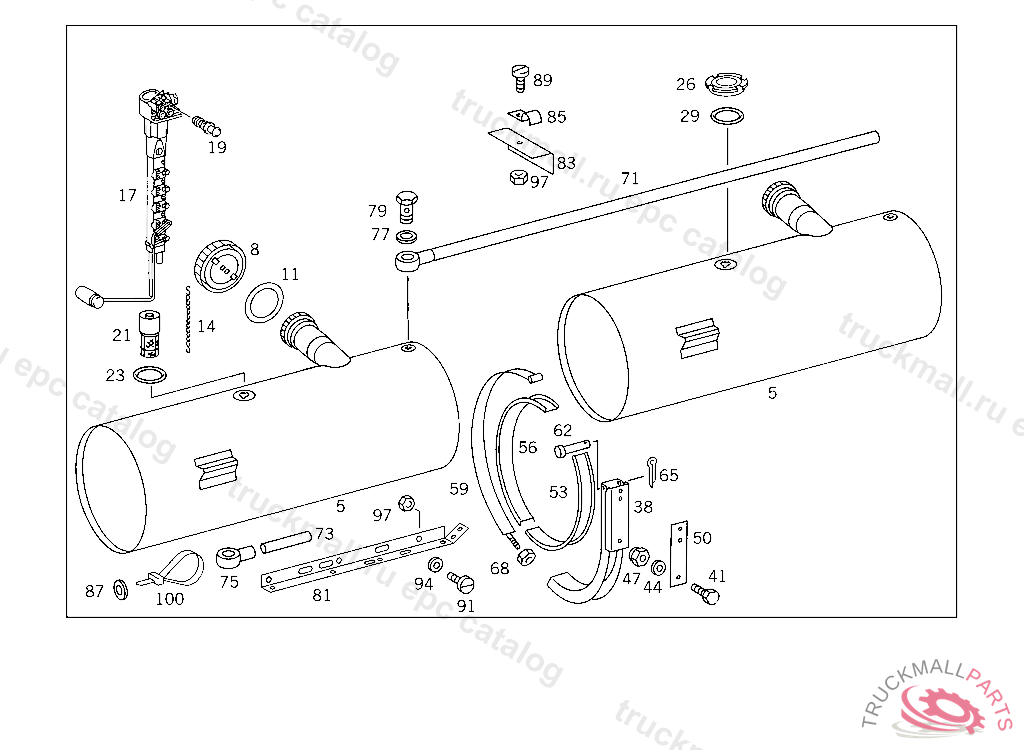

FUEL TANK LESS SENDER UNIT AND LESS SCREW CONNECTION PARTS
8
FILLER CAP
8
FILLER CAP , Replaced By: A0004700305
11
SEAL RING
14
CHAIN FILLER CAP
17
SENDER UNIT FUEL GAUGE,K 169123
17
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426317, +001A0005409917
17
SENDER UNIT , Replaced By: A0085428317
19
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
21
FUEL STRAINER FUEL TANK,K 169122
21
FUEL STRAINER FUEL TANK,K 169123
23
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
26
FILLER CAP IN PLACE OF FUEL GAUGE SENDER UNIT
29
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
38
SUPPORT FUEL TANK
38
SUPPORT FUEL TANK
38
SUPPORT FUEL TANK
38
SUPPORT REAR FUEL TANK,NO.1 CONSOLE
38
SUPPORT FUEL TANK
38
SUPPORT FUEL TANK
41
SCREW STEERING SUPPORT TO FRAME M 14X55
41
SCREW MOUNTING TO CONSOLE M 14X35
41
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
41
SCREW APPARATUS SUPPORT TO FRAME
41
SCREW SUPPORT TO SIDE MEMBER M 14X45
41
SCREW , Replaced By: N308676014012
41
SCREW , Replaced By: N308676014008
41
SCREW , Replaced By: A9429901304
44
WASHER SPARE WHEEL CARRIER
47
NUT STEERING SUPPORT TO FRAME
47
NUT , Replaced By: N910113014000
50
SHIM FUEL TANK TO FRAME
50
SHIM SUPPORT TO SIDE MEMBER
50
BASE SUPPORT TO SIDE MEMBER
53
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
56
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
59
STRAP FUEL TANK
62
PIN STRAP TO SUPPORT
65
COTTER PIN STRAP TO SUPPORT
68
NUT STRAP TO SUPPORT
71
LINE , Replaced By: A3404701265, +001A3054760126, +001N916017011000
71
LINE FUEL COMPENSATING
73
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
75
BANJO UNION , Replaced By: N000000000363
77
SEAL RING FUEL LINE TO FEED PUMP
79
HOLLOW SCREW , Replaced By: N915036010108
79
HOLLOW SCREW FUEL LINE TO FEED PUMP
81
PROTECTIVE PLATE TO MOUNT FUEL LINES
83
BRACKET HEATING PIPE
83
BRACKET , Replaced By: A6764760136
85
CLAMP , Replaced By: A1109950401
85
CLAMP FUEL LINE TO BRACKET
87
WASHER BRACKET TO LEFT SIDE MEMBER
89
SCREW FUEL LINE TO BRACKET
91
SCREW PROTECTION PLATE TO BRACKET
94
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
94
WASHER COMPRESSED AIR LINE TO BRACKET
97
NUT , Replaced By: N913004006001
97
NUT PUMP TO BRACKET
100
LOOM TIE LINE MOUNTING
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
NUT , Replaced By: N304032005005
999
CLAMP , Replaced By: A1109950401
999
BRACKET FUEL LINE
999
RUBBER PAD FUEL LINE TO BRACKET
