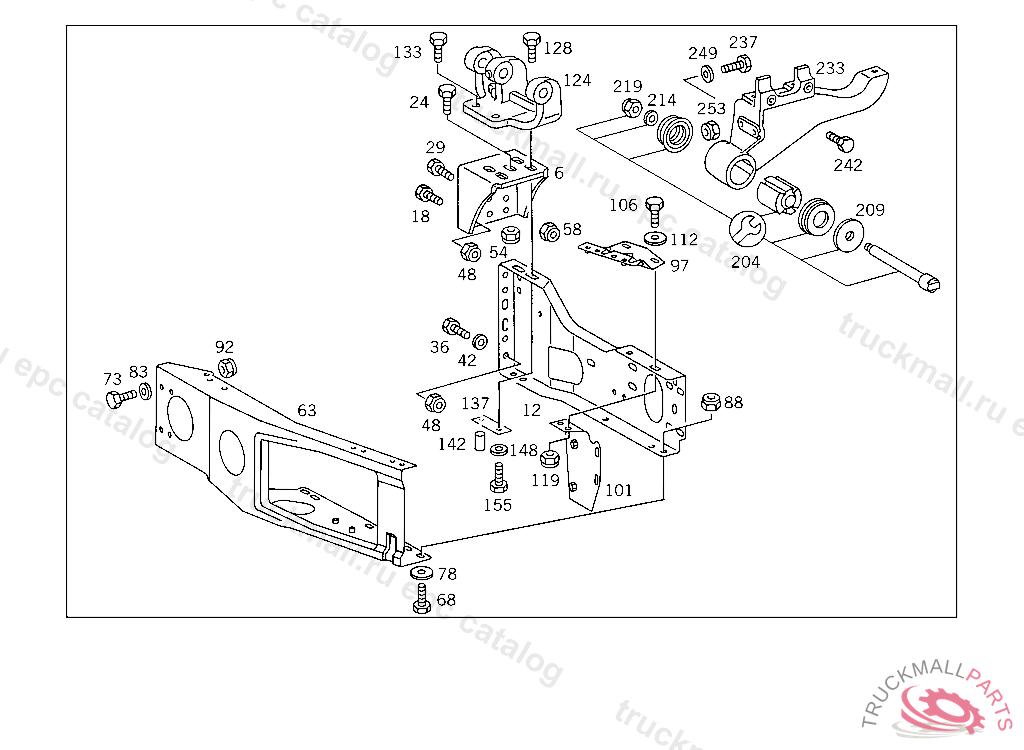

Поз.
Артикул
Описание
6
CONSOLE CAB SUSPENSION,FRONT
6
CONSOLE CAB SUSPENSION,FRONT
12
STRUT BUMPER,LEFT
12
STRUT BUMPER,RIGHT
18
SCREW APPARATUS SUPPORT TO FRAME
18
SCREW SUPPORT TO SIDE MEMBER M 14X45
18
SCREW MOUNTING TO CONSOLE M 14X35
18
SCREW , Replaced By: N308676014012
18
SCREW , Replaced By: N308676014008
18
SCREW , Replaced By: A9429901304
24
SCREW , Replaced By: N308676016020
24
SCREW , Replaced By: N308676016013
24
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
24
SCREW CONSOLE TO FRAME
29
SCREW BEARING BRACKET ON BEARING BRACKET FOR LONGITUDINAL CONTROL ARM M 18X1,5X35,K 164363
36
SCREWM 16X18X18X40
36
SCREWM 16X18X26X48
42
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
48
NUT STEERING SUPPORT TO FRAME
48
NUT , Replaced By: N910113014000
54
NUT , Replaced By: N910113016001
54
NUT CONSOLE TO SUPPORT
58
NUT TORSION BAR TO BEARING BRACKET,5 904661
63
STRUT FRONT RIGHT
63
STRUT FRONT LEFT
68
SCREW END PIECE TO EXHAUST PIPE M 10X25
73
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
78
WASHER BRACKET TO COVERING
78
WASHER , Replaced By: N009021010209
83
WASHER
88
NUT STRAP TO BRACKET
88
NUT , Replaced By: N910113010000
92
NUT SUPPORT TO SIDE MEMBER
97
PLATE LEFT REINFORCEMENT
97
PLATE RIGHT REINFORCEMENT
101
BRACKET LEFT ROCKER PANEL, INAPPLICABLE TO TYP 652.146
101
BRACKET RIGHT STEP, INAPPLICABLE TO TYP 652.146
106
SCREW END PIECE TO EXHAUST PIPE M 10X25
106
SCREW CENTRAL LOCK TO CAB M 10X16
112
WASHER BRACKET TO COVERING
112
WASHER , Replaced By: N009021010209
119
NUT , Replaced By: N910113010000
119
NUT STRAP TO BRACKET
124
MOUNTING RIGHT SIDE MEMBER
124
MOUNTING RIGHT SIDE MEMBER
124
MOUNTING , Replaced By: A6558910420
124
MOUNTING , Replaced By: A6558910320
124
MOUNTING CAB,LEFT
128
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
128
SCREW , Replaced By: N308676014008
128
SCREW , Replaced By: N308676014003
128
SCREW MOUNTING TO CONSOLE M 14X35
128
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
128
SCREW MOUNTING TO CONSOLE M 14X55
133
SCREW HYDRAULIC CYLINDER BEARING BRACKET TO FRAME M 16X25
133
SCREW CONSOLE TO FRAME
133
SCREW , Replaced By: N308676016020
137
SHIM MOUNTING TO CONSOLE
142
DOWEL PIN MOUNTING TO CONSOLE
148
WASHER SPARE WHEEL CARRIER
155
NUT , Replaced By: N910113014000
155
NUT STEERING SUPPORT TO FRAME
204
REPAIR KIT CAB SUSPENSION,FRONT
209
WASHER BEARING BRACKET
214
WASHER TORSION BAR TO BEARING BRACKET
214
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
219
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
219
NUT COMBINATION CYLINDER TO BEARING BRACKET
233
MOUNTING CAB, RIGHT
233
MOUNTING CAB,LEFT
237
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
237
SCREW , Replaced By: N308676012011
237
SCREW , Replaced By: N308676012031
242
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
242
SCREW , Replaced By: N000961014064
242
SCREW BRACKET TO SIDE MEMBER
242
SCREW BRACKET TO CAB CONSOLE,K 035197
249
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
249
WASHER BRACKET TO SIDE MEMBER,5 703114
249
WASHER , Replaced By: N000125015019
253
NUT , Replaced By: N910113014001
253
NUT BRACKET TO SIDE MEMBER
999
PIN LEVER
999
BUSHING TILTING LEVER
999
REPAIR KIT , Replaced By: A3879920003, +002A6208910017, +001A3638910023
999
RIVET BUSHING AND LEVER TO CAB
