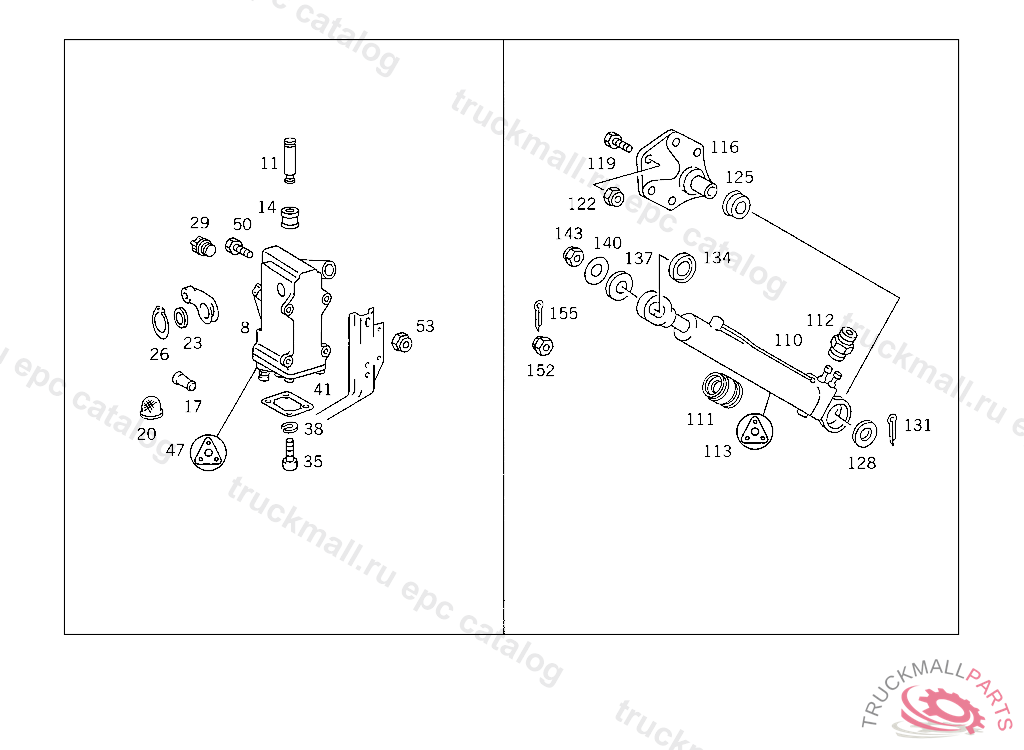

Поз.
Артикул
Описание
8
PUMP (HAND PUMP) WEBER
8
PUMP , Replaced By: A0005537901, +001A0015534205
11
PISTONTO 000 553 79 01,WEBER
14
VALVETO 000 553 79 01,WEBER
17
FILTER
20
FILTERHUNGER
23
FITTED WASHER
26
LOCK RING
29
SCREW
29
SCREW OIL FILLING HUNGER
35
SCREW
35
SCREW , Replaced By: N000000000190
35
SCREW , Replaced By: N000912008201
35
SCREW BOX COVER TO 000 553 79 01,000 553 89 01
38
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
41
GASKETHUNGER
47
GASKET KIT HAND PUMP
47
GASKET KIT HAND PUMP TO 000 553 68 01
50
SCREW , Replaced By: N304017010002
50
SCREW END PIECE TO EXHAUST PIPE M 10X25
50
SCREW BRACKET TO SIDE MEMBER
53
NUT , Replaced By: N910113010000
53
NUT STRAP TO BRACKET
110
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
110
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING HUNGER
111
GUIDEWEBER,TO 001 553 45 05
113
GASKET KIT HYDRAULIC CYLINDER WEBER
113
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
116
BEARING BRACKET , Replaced By: A6555530238
116
BEARING BRACKET HYDRAULIC CYLINDER
119
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
119
SCREW HYDRAULIC CYLINDER BEARING BRACKET TO FRAME M 16X25
119
SCREW , Replaced By: N308676016013
125
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
128
WASHER HYDRAULIC CYLINDER TO CAB
131
COTTER PIN6,3X36 MM
140
WASHER HYDRAULIC CYLINDER TO CAB
152
NUT , Replaced By: N000979016008
152
NUT LEVER
155
COTTER PIN STRAP TO SUPPORT
