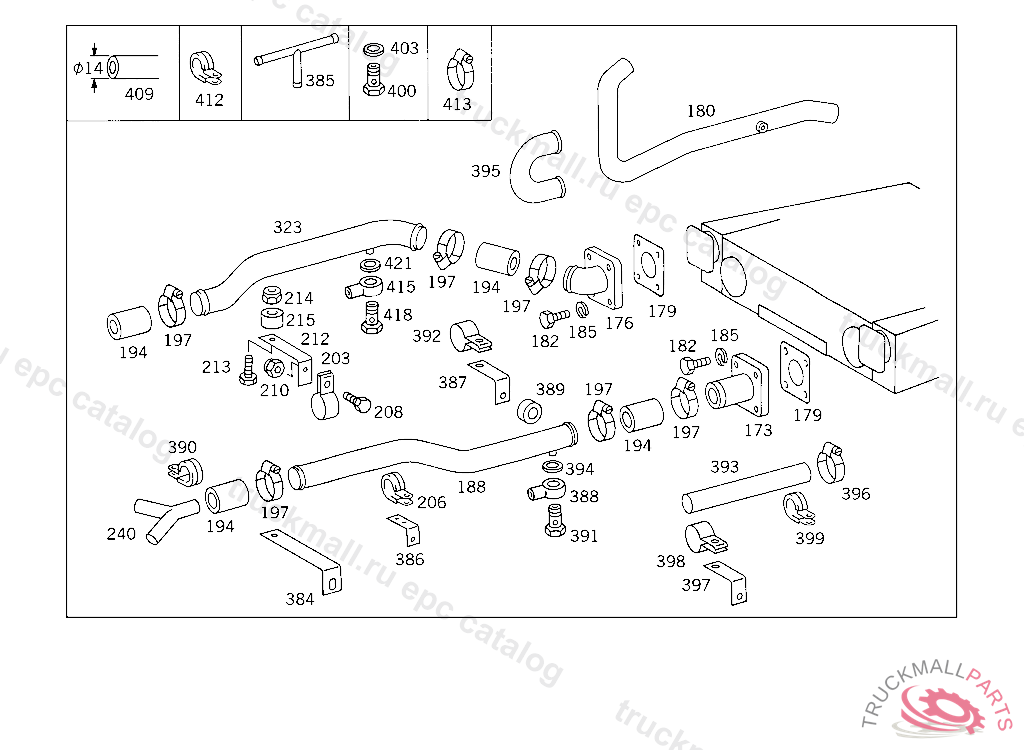

Поз.
Артикул
Описание
173
FILLER NECK RETURN, FROM OIL COOLER TO HOSE
173
OUTLET TRANSMISSION OIL COOLER
173
FLANGE , Replaced By: A6995000008
176
OUTLET TRANSMISSION OIL COOLER
176
FITTING TRANSMISSION OIL COOLER
176
OUTLET HEAT EXCHANGER,LEFT
176
OUTLET RETURN, FROM RETARDER TO ENGINE
179
GASKET FITTING TO OIL COOLER
180
LINE CONNECTION OF COOLING WATER LINES
182
SCREW BRACKET TO CROSS CONNECTION STRUT
182
SCREW , Replaced By: N304017008034
185
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
188
LINE RETURN
188
COOLING WATER LINE FEED, OIL COOLER
188
COOLING WATER LINE FEED, OIL COOLER
188
LINE FEED, REAR
188
LINE FEED, OIL COOLER
188
COOLING WATER LINE FEED, OIL COOLER
194
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
194
HOSE FEED AND RETURN LINE CONNECTION
194
HOSE FEED AND RETURN LINES TO OIL COOLER
197
CLAMP HOSE FASTENING 50-70X13 MM
197
CLAMP , Replaced By: N000000000672
203
CLAMP , Replaced By: A9424310043
203
CLAMP , Replaced By: N000000001641
203
CLAMP LINE MOUNTING
206
CLAMP LINE MOUNTING
208
SCREW BRACKET TO CROSS CONNECTION STRUT
208
SCREW , Replaced By: N304017008034
210
NUT , Replaced By: N913004008001
210
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
212
BRACKET OIL RETURN, SIMPLE PART-PLEASE HAVE SHOP MADE
212
BRACKET FEED AND RETURN LINES TO TRANSMISSION
212
BRACKET CABLE HARNESS MOUNTING
212
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
212
BRACKET DELIVERY LINE TO FRAME
212
BRACKET FUEL LINE TO BELL HOUSING
212
BRACKET , Replaced By: A6205244040
212
BRACKET , Replaced By: A6224760136
212
BRACKET , Replaced By: A6205244040
213
SCREW , Replaced By: N304017008034
213
SCREW BRACKET TO CROSS CONNECTION STRUT
214
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
214
NUT , Replaced By: N913004008001
215
BUSHING BRACKET TO EXPANSION TANK
215
BUSHING COOLING WATER LINE TO TRANSMISSION 50 MM
215
BUSHING RETURN LINE TO TRANSMISSION
240
LINE FEED LINE TO RETARDER
323
LINE FRAME,REAR
323
LINE FRONT
384
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
384
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
385
LINE DE-AERATION LINE TO TRANSMISSION COOLING WATER LINE
386
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
386
BRACKET COOLING WATER FEED LINE
386
BRACKET , Replaced By: A3604292940
387
BRACKET FUEL LINES TO TRANSMISSION
387
BRACKET FEED LINE TO THERMOSTAT, TO BE ADAPTED DURING ASSEMBLY
388
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
388
BANJO UNION HOSE WIDTH, / I.D., 8/12 MM
389
BUSHING RETURN LINE TO TRANSMISSION
389
BUSHING BRACKET TO EXPANSION TANK
389
BUSHING COOLING WATER LINE TO TRANSMISSION 50 MM
390
CLAMP COOLING WATER PIPE TO ENGINE MOUNTING, FRONT LEFT
391
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
391
SCREW DE-AERATION LINE TO TRANSMISSION COOLING WATER LINE
391
HOLLOW SCREW LINE CONNECTION
391
HOLLOW SCREW FUEL LINE TO FEED PUMP
391
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
391
HOLLOW SCREW , Replaced By: N915036010108
392
CLAMP , Replaced By: A9424310043
392
CLAMP , Replaced By: N000000001641
392
CLAMP LINE MOUNTING
393
COOLING WATER LINE EXTENSION
394
SEAL RING LINE CONNECTION
394
SEAL RING FITTING TO AXLE HOUSING
395
COOLING WATER LINE HEAT EXCHANGER I TO HEAT EXCHANGER II
396
CLAMP HOSE FASTENING 50-70X13 MM
396
CLAMP , Replaced By: N000000000672
397
BRACKET PIPE LINE TO FRAME
397
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
397
BRACKET FUEL LINES TO TRANSMISSION
398
CLAMP LINE MOUNTING
398
CLAMP , Replaced By: A9424310043
398
CLAMP , Replaced By: N000000001641
399
CLAMP , Replaced By: A3829950101
399
CLAMP LINE MOUNTING
399
CLAMP COOLING WATER HOSES
400
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
400
HOLLOW SCREW HEATING CONNECTION
403
SEAL RING LINE CONNECTION
409
HOSE DE-AERATION LINE, ORDER BY THE METER
409
HOSE DE-AERATION LINE, ORDER BY THE METER, Replaced By: A9575011982
409
HOSE , Replaced By: A0805013482
412
CLAMP , Replaced By: A0059970190
412
CLAMP , Replaced By: A1409950036
412
HOSE CLAMP LINE MOUNTING
413
CLAMP HOSE TO FITTING AND TO OIL TANK
415
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
415
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
418
HOLLOW SCREW LINE CONNECTION
421
SEAL RING PNEUMATIC VALVE
421
SEAL RING , Replaced By: N007603010110
999
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
999
SCREW , Replaced By: N910142008009
999
LINE FEED, OIL COOLER
999
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
999
HOSE COOLING WATER FEED LINE
999
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
999
SPACER TUBE SHOCK ABSORBER TO BRACKET
999
BRACKET DE-AERATION, FROM ENGINE TO EXPANSION TANK
999
SUPPORT OIL COOLER, WHEELBASE: 5150 MM
999
SUPPORT OIL COOLER, WHEELBASE: 6100 MM
999
HOSE OIL RETURN
999
SCREW CLAMP TO BRACKET,5 597426
999
HOLLOW SCREW LINE CONNECTION
