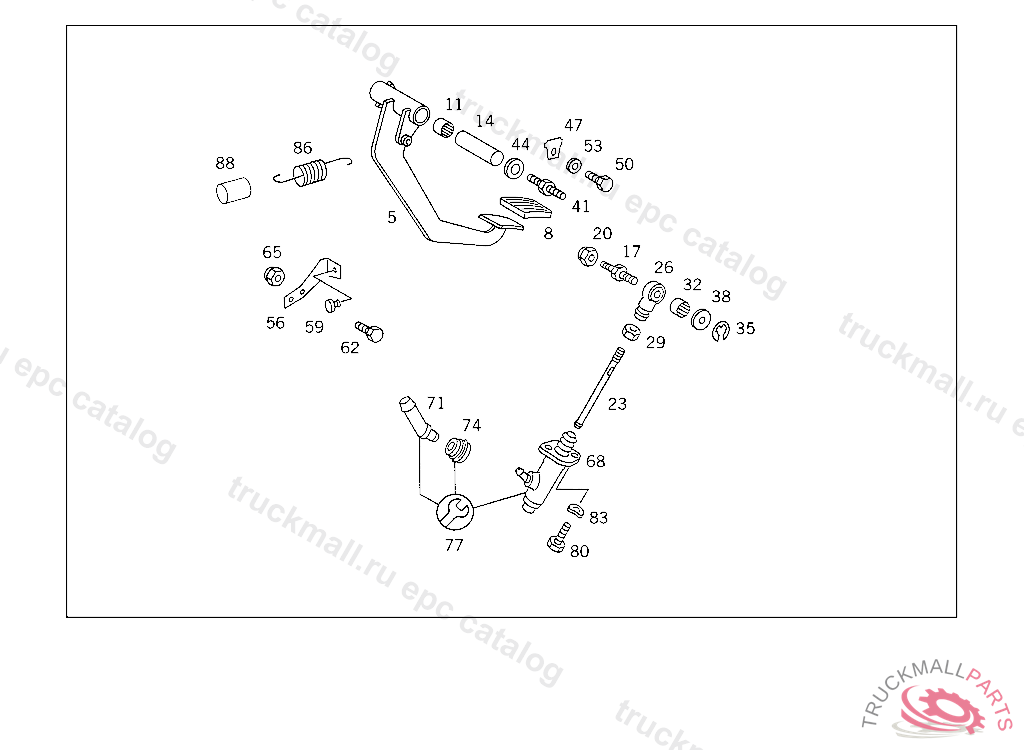

Поз.
Артикул
Описание
5
PEDAL CLUTCH
5
PEDAL CLUTCH
8
PAD CLUTCH PEDAL
11
NEEDLE BEARING CLUTCH PEDAL
11
NEEDLE BEARING CLUTCH PEDAL
14
SPACER TUBE CLUTCH PEDAL
17
PIN CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
20
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
NUT , Replaced By: N913004008001
23
ROD CLUTCH MASTER CYLINDER
26
ARTICULATION PIECE CLUTCH MASTER CYLINDER
26
ARTICULATION PIECE CLUTCH MASTER CYLINDER
29
NUT CLUTCH PEDAL PISTON ROD
32
NEEDLE BEARING JOINT TO PIN
32
NEEDLE BEARING JOINT TO PIN
32
NEEDLE BEARING JOINT TO PIN
32
NEEDLE BEARING JOINT TO PIN
35
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
38
WASHER BRACKET TO FENDER BRACKET
41
PIN CLUTCH PEDAL TO BEARING BRACKET
44
WASHER CLUTCH PEDAL TO BEARING BRACKET
47
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
50
SCREW , Replaced By: N304017006016
50
SCREW PUMP TO BRACKET
53
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
53
WASHER COMPRESSED AIR LINE TO BRACKET
56
STOP CLUTCH PEDAL,5 957975
56
BRACKET CLUTCH PEDAL,5 957976
59
STOP CLUTCH PEDAL AND BRAKE PEDAL
62
SCREW COVER PLATE TO BRACKET
65
NUT , Replaced By: N913004006001
65
NUT PUMP TO BRACKET
68
MASTER CYLINDER CLUTCH
68
MASTER CYLINDER CLUTCH
68
MASTER CYLINDER CLUTCH
68
MASTER CYLINDER CLUTCH
68
MASTER CYLINDER CLUTCH
71
INTERMEDIATE PIECE
74
PLUG
77
REPAIR KIT CLUTCH MASTER CYLINDER
77
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER
77
REPAIR KIT CLUTCH MASTER CYLINDER
77
REPAIR KIT CLUTCH MASTER CYLINDER
77
REPAIR KIT CLUTCH MASTER CYLINDER
80
SCREW COVER PLATE TO BRACKET
83
SPRING WASHER CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET
86
SPRING CLUTCH-PEDAL/BRAKE-PEDAL RESET
88
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
88
PAD , Replaced By: N040621014200
