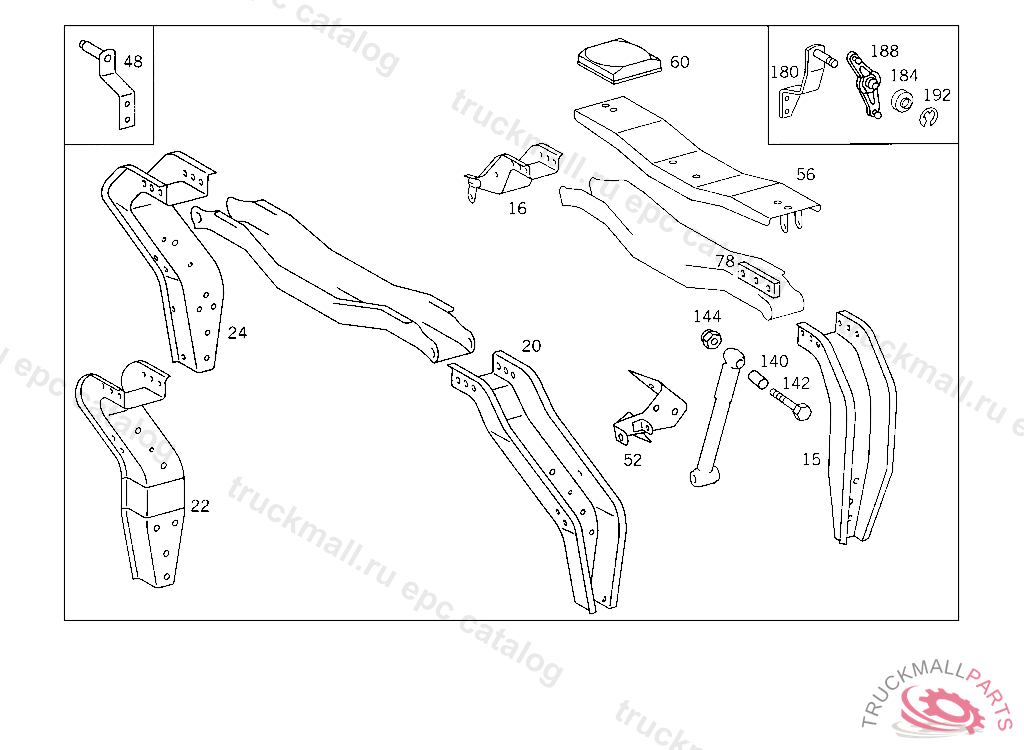

Поз.
Артикул
Описание
15
CONSOLE ADDITIONAL WORK ON FRAME
16
CONSOLE CAB SUSPENSION,REAR
20
CONSOLE CAB SUSPENSION,REAR LEFT
20
CONSOLE CAB SUSPENSION,REAR LEFT
20
CONSOLE CAB SUSPENSION,REAR LEFT, TO BE ADAPTED DURING ASSEMBLY
22
CONSOLE CAB SUSPENSION,REAR RIGHT
24
CONSOLE CAB SUSPENSION,REAR RIGHT
48
BEARING BRACKET INTERMEDIATE LEVER,5 943507
52
MOUNTING LEFT VIBRATION ABSORBER
56
RAIL CAB SUSPENSION,REAR
56
RAIL , Replaced By: A3978900122
60
MOUNTING CAB SUSPENSION,REAR
60
MOUNTING , Replaced By: A3878910072
60
MOUNTING CAB SUSPENSION,REAR
78
SHIM STRUT TO CONSOLE
140
SPACER TUBE MOUNTING TO CONSOLE
140
SPACER TUBE SHOCK ABSORBER TO RAIL
142
SCREW VIBRATION ABSORBER TO CONSOLE
142
SCREW , Replaced By: N000960018072
144
NUT , Replaced By: N910113018004
144
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
180
BEARING BRACKET INTERMEDIATE BEARING
184
COVERING INTERMEDIATE BEARING
188
LEVER INTERMEDIATE BEARING
188
LEVER , Replaced By: A6203000628, +001N071803013208
192
LOCK PLATE INTERMEDIATE BEARING
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT STRAP TO BRACKET
999
SCREW , Replaced By: N304014008001
999
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
999
WASHER BRACKET TO COVERING
999
WASHER , Replaced By: N009021010209
999
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
CLAMPING SLEEVE CAB LOCKING MECHANISM
999
BEARING BRACKET FENDER BRACKET TO CLAMP,RIGHT
999
BEARING BRACKET FENDER BRACKET TO CLAMP,LEFT
999
BRACKET FENDER TO BEARING BRACKET,RIGHT
999
BRACKET FENDER TO BEARING BRACKET,LEFT
999
BRACKET FENDER/TAIL-LAMP FIXTURE
999
COUPLING
999
LOCKING MECHANISM CAB, RIGHT,5 719572
999
TOOTHED SEGMENT
999
BRACKET TAIL LAMP
999
BEARING BRACKET FENDER
999
GUIDE RIGHT
999
GUIDE LEFT
999
SHIM GUIDE TO CAB
999
LATCH CAB LOCKING MECHANISM
999
EXPANSION PLUG BRACKET
999
DISC SPRING CAB LOCKING MECHANISM
