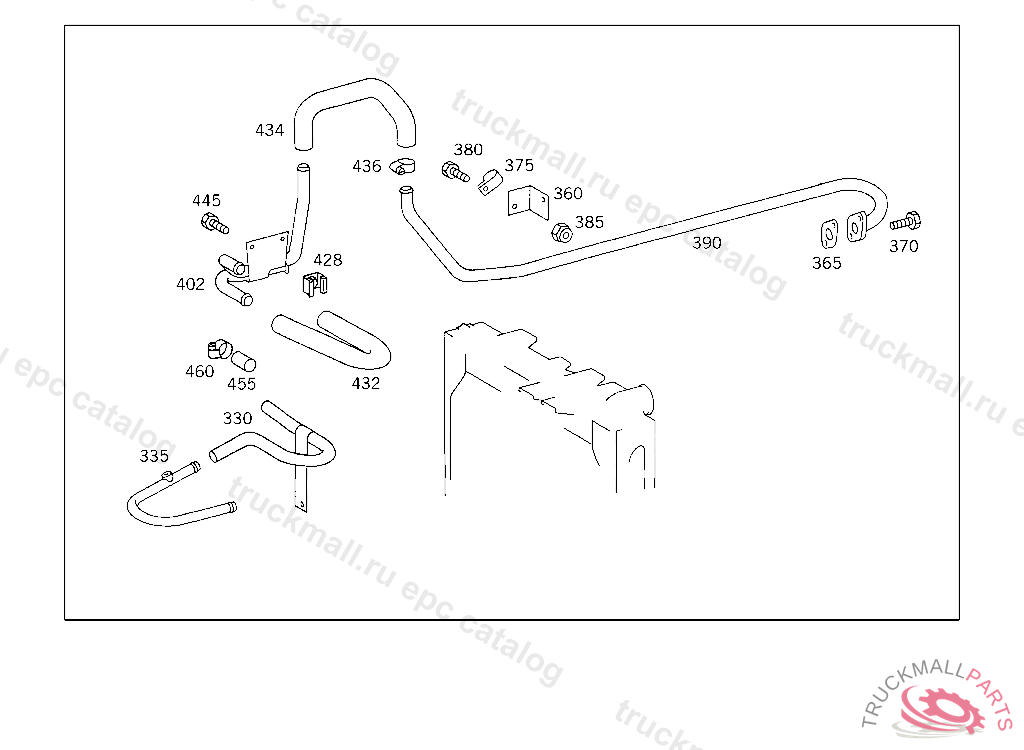

Поз.
Артикул
Описание
330
BREATHER PIPE DE-AERATION LINE
335
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
360
BRACKET FEED LINE TO THERMOSTAT
365
GASKET HEATING PIPE TO ENGINE
370
SCREW EXHAUST PIPE TO BRACKET
375
CLAMP FEED LINE TO THERMOSTAT
380
SCREW COVER PLATE TO BRACKET
385
NUT PUMP TO BRACKET
385
NUT , Replaced By: N913004006001
390
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
390
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
390
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
390
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
390
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
402
LINE HEATING AND BREATHING
402
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
402
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
402
LINE ,5 920677, Replaced By: A6525001072
428
NUT RETAINER , Replaced By: A0019906791
428
NUT RETAINER LICENSE PLATE TO BRACKET
432
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
434
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
436
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
436
CLAMP , Replaced By: N000000000667
445
SCREW , Replaced By: N304017006016
445
SCREW PUMP TO BRACKET
455
LOCKING CAP INTERMEDIATE PIPE TO PARTICLE FILTER
460
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
SEAL RINGTO 000 553 03 05,000 553 18 05,
999
BRACKET SEALING LIP TO EXPANSION TANK
999
PIN SEALING LIP TO EXPANSION TANK
999
LOCK
999
SCREW WATER DRAIN
