Mercedes A0004290527 - КОЛЬЦО ПРОСТАВОЧНОЕ

2629,3535,3538,4635,46444645,4648,4850 659.233

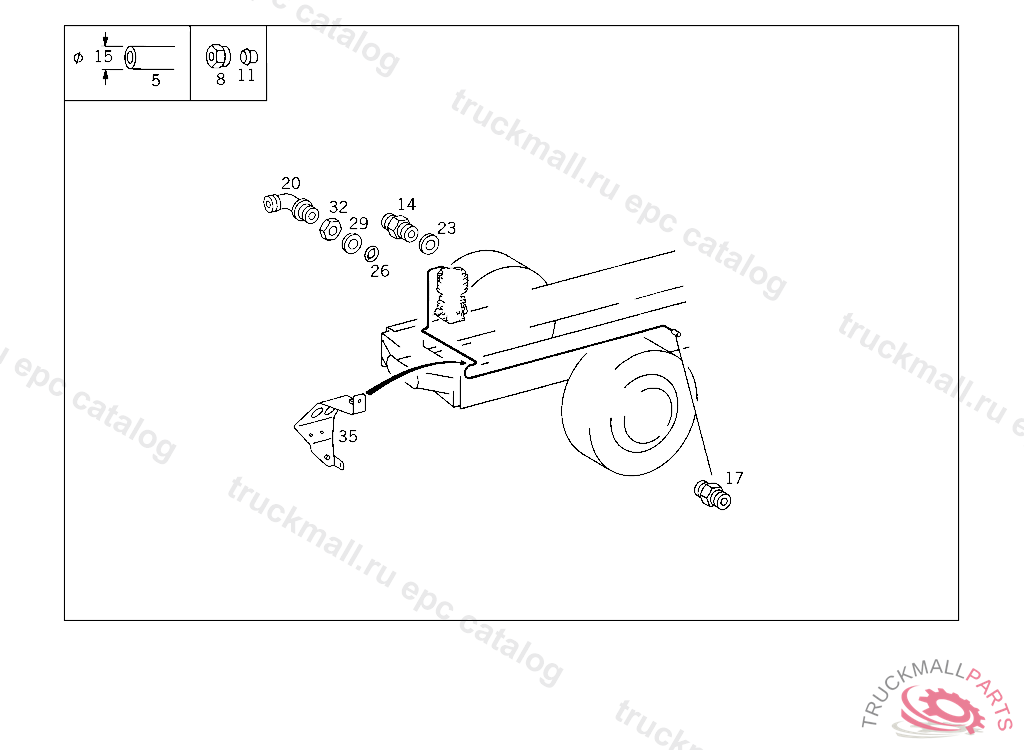

42 BRAKES - 001 TWIN AIR COMPRESSOR LINE IL.1

Поз.
Артикул
Описание
5
A0004291401
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
N915017015100
UNION NUT LINE CONNECTION
11
N003861015004
GLAND LINE CONNECTION
14
A6209970272
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
17
N003902015002
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
20
A6209900071
ELBOW FITTING , Replaced By: A0039901671
20
A0039901671
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
23
N007603026404
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
26
A0039973848
SEAL RING LINE CONNECTION
29
A0004290527
THRUST RING SUCTION LINE TO OIL PUMP
32
N074305026202
NUT SUCTION LINE TO OIL PUMP
35
A6454200486
BRACKET 3/2-WAY SOLENOID VALVE
35
A6454200386
BRACKET , Replaced By: A6454200486
999
A3184281240
BRACKET COMPRESSED AIR LINE TO ENGINE
