Mercedes
TRUCK
2629,3535,3538,4635,46444645,4648,4850
659.233
30 CONTROL

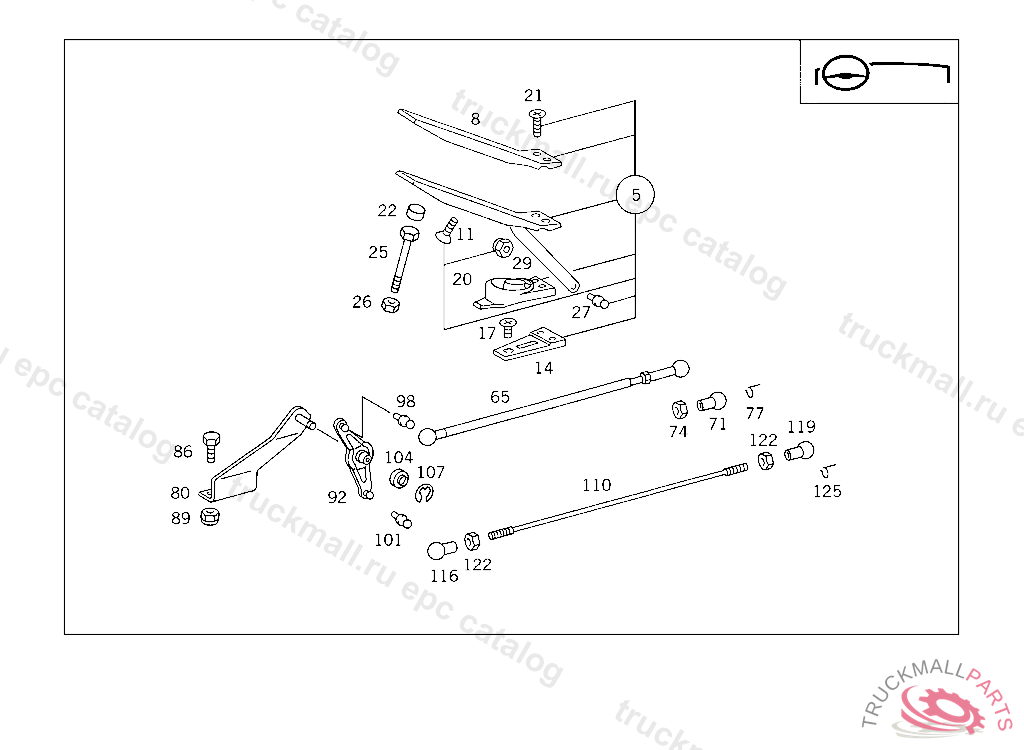

060 ACCELERATOR PEDAL CONTROL IL. 1

Mercedes N000965006058 - Болт

2629,3535,3538,4635,46444645,4648,4850 659.233

30 CONTROL - 060 ACCELERATOR PEDAL CONTROL IL. 1

Поз.
Артикул
Описание
5
A6243000304
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
A6153000104
PAD ACCELERATOR PEDAL
11
N007991005007
SCREW ACCELERATOR PEDAL
14
A6153010084
SHIM ACCELERATOR PEDAL
17
N000965006058
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
A6153010097
BOOT ACCELERATOR PEDAL
21
N000965006003
SCREW ACCELERATOR PEDAL TO CAB M 6X25
22
A3813010041
STOP ACCELERATOR PEDAL
25
N304014008002
SCREW VALVE TO BRACKET
25
N000931008254
SCREW VALVE TO BRACKET, Replaced By: N304014008002
26
N304032008006
NUT
27
A0009911015
BALL PIVOT LOAD SENSOR
29
N913004006002
NUT , Replaced By: N913004006001
29
N913004006001
NUT PUMP TO BRACKET
65
A6203000615
ROD LOAD SENSOR CONTROL
71
A0009912422
BALL SOCKET PULL ROD TO LEVER
74
N000934006007
NUT BALL PIVOT TO LEVER
77
N071805010403
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
80
A6203000536
BEARING BRACKET INTERMEDIATE BEARING
86
N000933010128
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
89
N910113010000
NUT STRAP TO BRACKET
89
N913004010008
NUT , Replaced By: N910113010000
92
A6203000628
LEVER INTERMEDIATE BEARING
98
N071803010202
BALL STUD. BALL PIVOT TOP B10X4,5 MM
101
N071803013208
BALL PIVOT BOTTOM B13X5 MM
104
A6153010088
COVERING INTERMEDIATE BEARING
107
N006799010001
LOCK PLATE INTERMEDIATE BEARING
110
N900331008421
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
116
N071805013203
BALL SOCKET ROD TO BALL PIVOT
119
A4069910022
BALL SOCKET ROD TO BALL PIVOT
122
N304032008006
NUT
125
N071805013402
SECURING CLIP. CIRCLIP
