Mercedes N304017008021 - АВТОЗАПЧАСТЬ
2629,3535,3538,4635,46444645,4648,4850 659.233

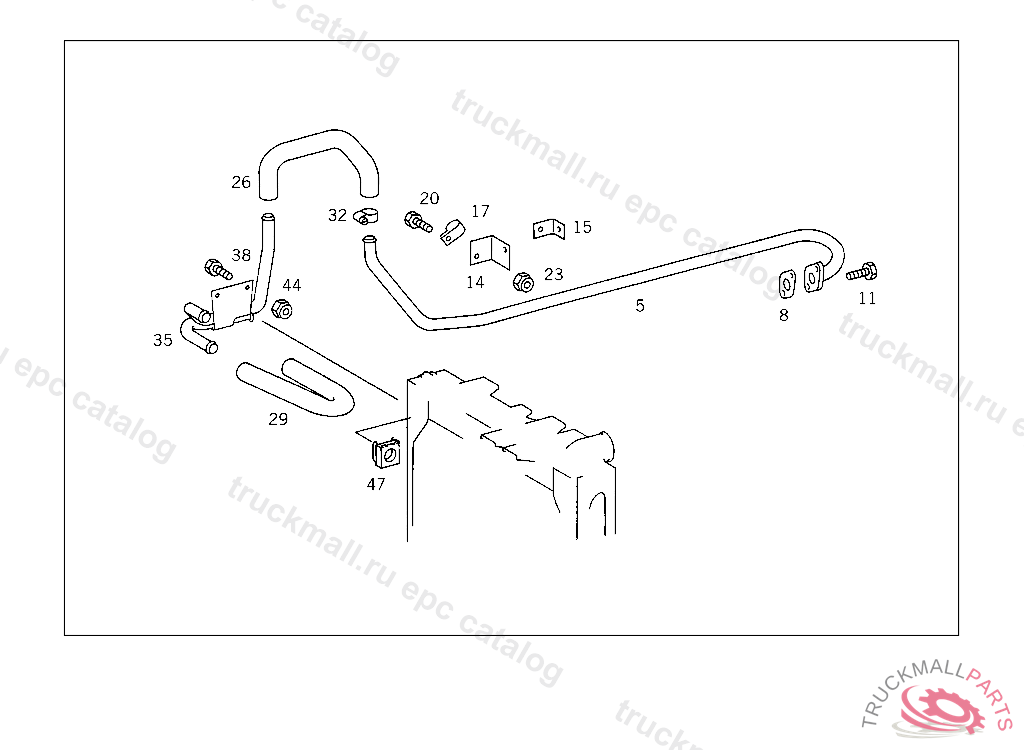

26 TRANSMISSION - 001 TRANSMISSION VIBRATION ABSORBER IL.2
Поз.
Артикул
Описание
5
A6555000072
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
8
N917003022003
GASKET HEATING PIPE TO ENGINE
11
N304017008021
SCREW PIPE CLAMP
11
N000933008147
SCREW , Replaced By: N304017008021
14
A6555060240
BRACKET FEED LINE TO THERMOSTAT
17
A3609950601
CLAMP FEED LINE TO THERMOSTAT
20
N000933006130
SCREW COVER PLATE TO BRACKET
23
N913004006002
NUT , Replaced By: N913004006001
23
N913004006001
NUT PUMP TO BRACKET
26
A6555060035
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
29
A6555060235
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
32
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
32
N916017020000
CLAMP , Replaced By: N000000000667
35
A6555000272
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
35
A6555000372
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
38
N304017006016
SCREW PUMP TO BRACKET
38
N000933006183
SCREW , Replaced By: N304017006016
44
N913004006002
NUT , Replaced By: N913004006001
44
N913004006001
NUT PUMP TO BRACKET
47
A0009902291
NUT RETAINER , Replaced By: A0019906791
47
A0019906791
NUT RETAINER LICENSE PLATE TO BRACKET
