Mercedes
CAR
300 TE 4 MATIC
124.290 TO 09/89
47 FUEL SYSTEM

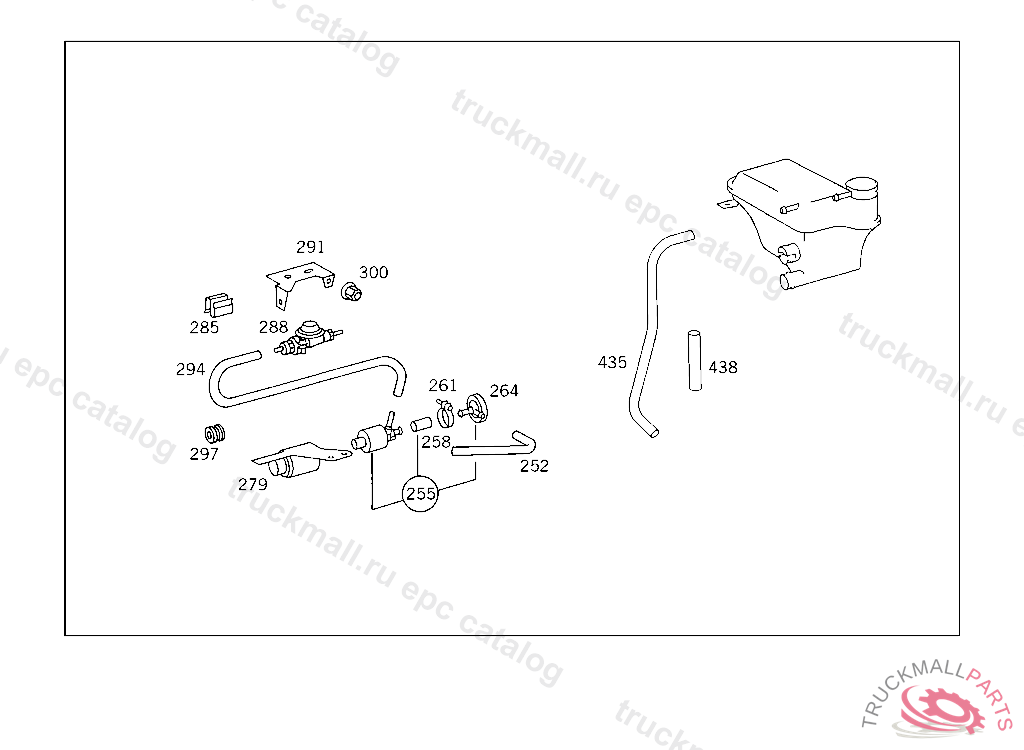

001 CLOSED FUEL-EVAPORATION-CONTROL SYSTEM (FOR TYPES 124,201, SEE STANDARD MICROFIC IL.6

Mercedes N916002010100 - ХОМУТ

300 TE 4 MATIC 124.290 TO 09/89

47 FUEL SYSTEM - 001 CLOSED FUEL-EVAPORATION-CONTROL SYSTEM (FOR TYPES 124,201, SEE STANDARD MICROFIC IL.6

Поз.
Артикул
Описание
252
A1244760226
HOSE FROM FUEL NOZZLE TO FUEL LINE,F 122352
255
A0004702394
AUXILIARY PUMP FUEL-OIL PUMP,F 122352
255
A2014700394
AUXILIARY PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.F 002928, Replaced By: A0004702394
258
A2014761126
HOSE4.5X10X900MM
261
N916002010100
CLAMP LINE MOUNTING
264
A0004760063
DIAPHRAGM ,F 122352
279
A1245001131
BRACKET ADDITIONAL FUEL PUMP, B 054061 ALSO INSTALLED ON B 054101,B 061113
285
A1149880178
CLIP (HOSE LINE TO BRAKE BOOSTER)
285
A1089880878
CLIP , Replaced By: A1149880178
288
A0004761832
VALVE (PRESSURE RELIEF VALVE),F 122352F 032883
291
A1245064040
BRACKET ,F 122352F 032883
294
A1244763526
HOSE FROM PRESSURE RELIEF VALVE TO FUEL-OIL PUMP, B 054061 ALSO INSTALLED ON B 054101,B 061113A 667677
297
A3179970281
GROMMET CLOCK
