Mercedes A1247840121 - Подшипник

300 TE 4 MATIC 124.290 TO 09/89

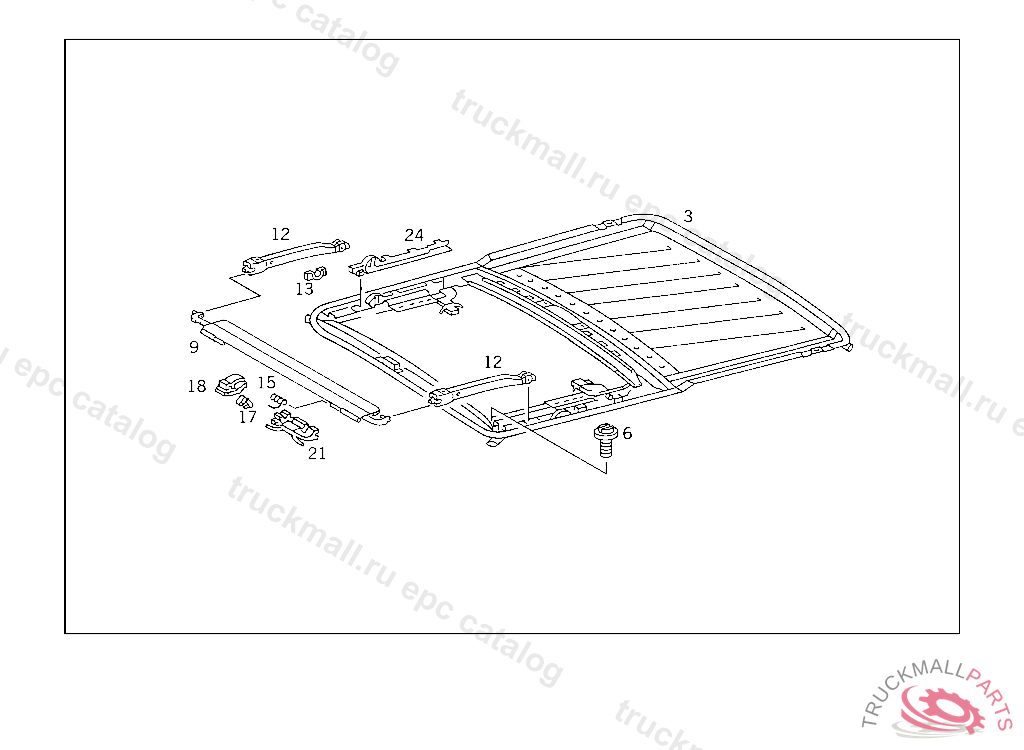

78 ELECTRIC SLIDING/LIFTING ROOF - 045 SLIDING/LIFTING ROOF FRAME

Поз.
Артикул
Описание
3
A1247802229
FRAME WITH DRAFT DEFLECTOR, DURING ASSEMBLY, BEND THE REAR BOW BRACKETS (4 PIECES) UPWARD
6
A1107820071
SCREW BOTTOM FRAME
9
A2017800144
DRAFT DEFLECTOR ,A 843088, Replaced By: A2017800344, +001A1247820535, +001A1247820635, +002A1247820046
9
A2017800344
DRAFT DEFLECTOR
12
A1267800038
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. B 041042, Replaced By: A1247800138
12
A1247800138
LEVER LEFT,A108734
12
A1247800238
LEVER RIGHT,A108734
15
A1247820535
SPRING LEFT
15
A1247820635
SPRING RIGHT
15
A1237840235
SPRING , Replaced By: A1247820635, +001A1247820046
15
A1237840135
SPRING , Replaced By: A1247820535, +001A1247820046
17
A1247820046
STAY
18
A1237840521
MOUNTING CENTRAL
21
A1247840221
MOUNTING FRONT RIGHT
21
A1247840121
MOUNTING FRONT LEFT
24
A1247820131
GUIDE ON FRAME,LEFT
24
A1247820231
GUIDE ON FRAME,RIGHT
