Поз.
Артикул
Описание
5

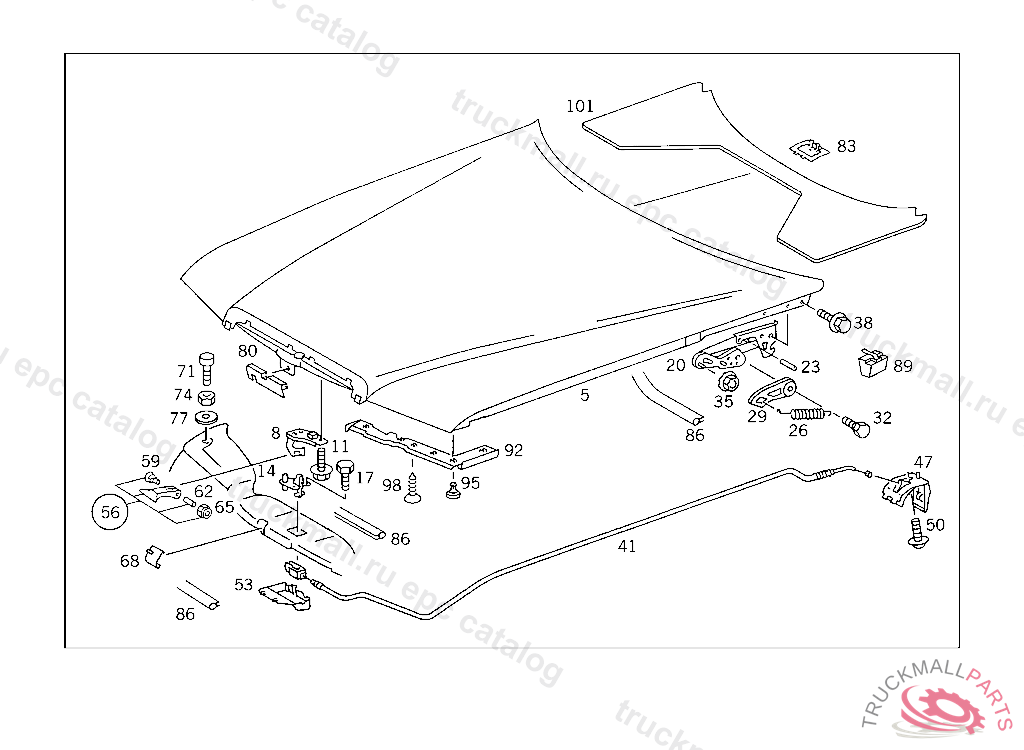

ENGINE HOOD , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 081205, Replaced By: A1248800357
5
ENGINE HOOD
8
ENGINE HOOD CATCH UPPER PART
11
SCREW
11
SCREW , Replaced By: A1249900901
14
ENGINE HOOD CATCH LOWER PART
17
SCREW , Replaced By: N304017006034
17
SCREW COVER PLATE TO COVER PLATE M 6 X 10
20
HINGE RIGHT,LESS INTERIOR LOCKING MECHANISM,F 085718 ATTENTION: PRIOR TO INSTALLATION,CHECK ENGINE HOOD TILT LOCKING LEVER ON THE LEFT
20
HINGE LEFT,LESS DOOR INNER LOCK,F 085717 ATTENTION: PRIOR TO INSTALLATION,CHECK ENGINE HOOD TILT LOCKING LEVER ON THE RIGHT
20
HINGE LEFT,WITH INTERIOR LOCKING MECHANISM,F 085718 ATTENTION: PRIOR TO INSTALLATION,CHECK ENGINE HOOD TILT LOCKING LEVER ON THE LEFT
20
HINGE RIGHT,WITH DOOR INNER LOCK,F 085717 ATTENTION: PRIOR TO INSTALLATION,CHECK ENGINE HOOD TILT LOCKING LEVER ON THE RIGHT
23
BUSHING
26
SPRING ENGINE HOOD HINGE,RIGHT
26
SPRING ENGINE HOOD HINGE,LEFT
29
LEVER ENGINE HOOD HINGE,LEFT
29
LEVER ENGINE HOOD HINGE,RIGHT
29
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 081484, Replaced By: A1298870174
29
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 081484, Replaced By: A1298870274
32
SCREW , Replaced By: A1249900901
32
SCREW
35
NUT HINGE TO WHEELHOUSE
38
SCREW HINGE TO ENGINE HOOD
41
ENGINE HOOD RELEASE CABLE
41
ENGINE HOOD RELEASE CABLE
47
HANDLE ENGINE HOOD RELEASE CABLE
50
SCREW HANDLE TO BRACKET
53
COVERING ENGINE HOOD CATCH
56
HANDLE HANDLE FOR ENGINE HOOD SAFETY HOOK
59
PIN
62
SPACER TUBE
65
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
65
NUT , Replaced By: N913004006003
65
NUT , Replaced By: N910113006001
68
DEFLECTOR SAFETY HOOK
71
STOP SCREW , Replaced By: A2019880211
71
BUFFER , Replaced By: A2019880511
71
BUFFER LEFT, FROM CHASSIS: 010 077937
74
NUT BALL PIVOT TO LEVER
77
WASHER , Replaced By: N009021006208
77
WASHER COMPRESSED AIR LINE TO BRACKET
80
SEAL ENGINE HOOD,FRONT CENTRAL
83
COVERING ENGINE HOOD STIFFENING,REAR
86
BOOT BOTTOM COVERING, ORDER BY THE METER
89
SEAL ENGINE HOOD,LATERAL REAR
92
SEAL , Replaced By: A1248891998
92
SEAL , Replaced By: A1248892098
92
SEAL ENGINE HOOD BRACKET,FRONT RIGHT
92
SEAL ENGINE HOOD BRACKET,FRONT LEFT
95
RIVET SEAL TO ENGINE HOOD BRACKET,FRONT
98
SHEET METAL SCREW
