Поз.
Артикул
Описание

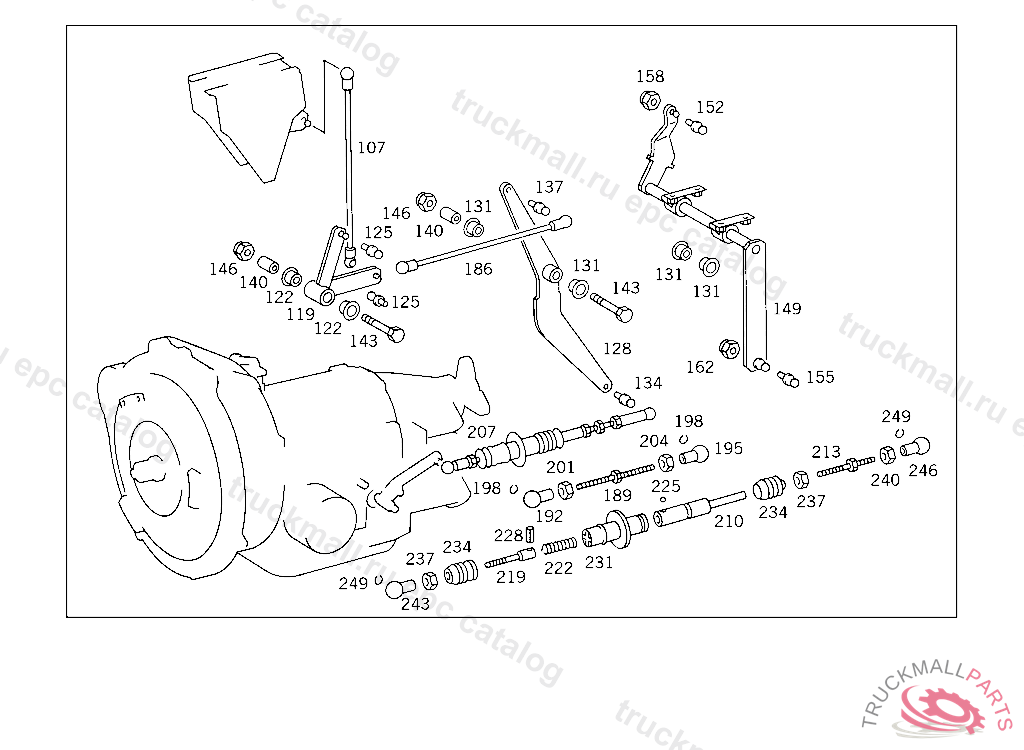

107
ROD FROM SHIFT LEVER TO LEVER
119
LEVER SHIFT LEVER LOWER PART
122
BUSHING , Replaced By: A1242920050
125
BALL PIVOT
128
LEVER SHIFT LEVER LOWER PART
131
BUSHING BRAKE PEDAL
131
BUSHING , Replaced By: A1242920050
134
BALL PIVOT
137
BALL PIVOT
140
SPACER TUBE LEVER TO COVERING
143
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
143
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
146
NUT STRAP TO BRACKET
149
SHIFT LEVER , TO BE ADAPTED DURING ASSEMBLY
152
BALL STUD. BALL PIVOT ROD TO LEVER
155
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
158
NUT DIODE TO BRACKET,5 922534
162
NUT SWITCH TO FLOOR PLATE
186
ROD FROM SHIFT LEVER TO LEVER
189
PULL ROD SHIFTING ROD
192
BALL SOCKET ROD TO BALL PIVOT
195
BALL SOCKET PULL ROD
198
SNAP RING
201
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
204
NUT INTERMEDIATE SPEED STOP
207
PULL ROD SHIFTING ROD
207
PULL ROD SHIFTING ROD
210
CONNECTOR
213
PULL ROD SHIFTING ROD
213
PULL ROD
219
ROD
222
SPRING
225
BALL P.T.O. SHAFT
228
CLAMPING SLEEVE PLANETARY CARRIER
231
STOP
234
BOOT PULL ROD
234
BOOT , Replaced By: A3575450245
237
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
240
NUT INTERMEDIATE SPEED STOP
243
BALL SOCKET PULL ROD
246
BALL SOCKET PULL ROD
249
SNAP RING
999
STRAP
999
KNOB
