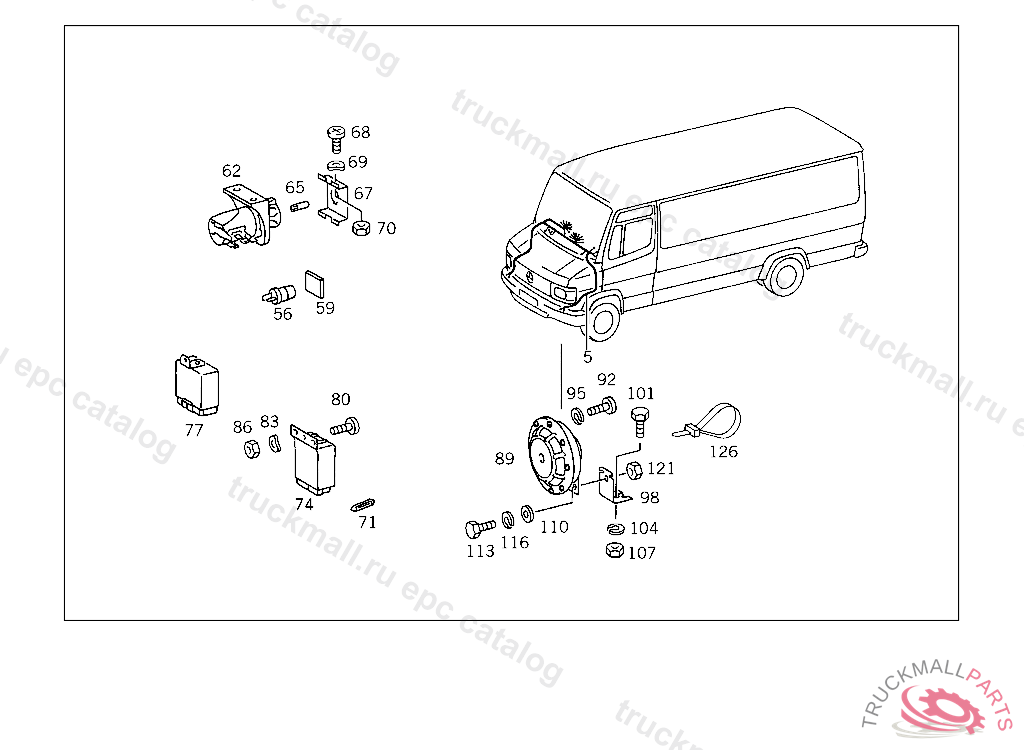

Поз.
Артикул
Описание
5
ELECTRIC CABLE FROM FUSE BOX TO ALARM SWITCH AND TO SUCCESSIVE TONE CONTROL UNIT, N 000000 P 084863
5
ELECTRIC CABLE FROM FUSE BOX TO ALARM SWITCH AND TO SUCCESSIVE TONE CONTROL UNIT, N 000000 P 084863
5
ELECTRIC CABLE FROM FUSE BOX TO ALARM SWITCH AND TO SUCCESSIVE TONE CONTROL UNIT, N 000001 P 084864
5
ELECTRIC CABLE FROM FUSE BOX TO ALARM SWITCH AND TO SUCCESSIVE TONE CONTROL UNIT, N 000001 P 084864
5
ELECTRIC CABLE FROM FUSE BOX TO ALARM SWITCH AND TO SUCCESSIVE TONE CONTROL UNIT, N 000001 P 084864
5
ELECTRIC CABLE FROM FUSE BOX TO ALARM SWITCH AND TO SUCCESSIVE TONE CONTROL UNIT, N 000000 P 084863
5
ELECTRIC CABLE FROM FUSE BOX TO ALARM SWITCH AND TO SUCCESSIVE TONE CONTROL UNIT, N 000000 P 084863
5
ELECTRIC CABLE FROM FUSE BOX TO ALARM SWITCH AND TO SUCCESSIVE TONE CONTROL UNIT, N 000001 P 084864
56
BULB FUSE BOX
56
BULB TELL-TALE LAMP 24 V/1,2 W
59
LENS , Replaced By: A0015459590
59
LENS REVOLVING BEAM SIGNAL LAMP
62
SWITCH SWITCH TO CENTRAL CONSOLE
62
SWITCH AUDIBLE WARNING
62
SWITCH AUDIBLE WARNING
65
BULB HAZARD WARNING LIGHT SWITCH
67
BRACKET ALARM SWITCH
68
SCREW
68
SCREW , Replaced By: N007985003150
69
SPRING WASHER , 123.120 263417 123.123 255592 123.102,103,125 257644 123.130 240997 123.105,132 242388 123.183 016222 123.190 022642
70
NUT PLUG SOCKET TO BRACKET,5 906887
71
FUSE , Replaced By: N072581005100
71
FUSE , Replaced By: N072581008101
71
FUSE (SPARE FUSE) 5 A
71
FUSEA16
71
FUSEA8
74
RELAY
74
CONTROL UNIT ALARM SYSTEM
77
CONTROL UNIT , Replaced By: A0008208526
77
RELAY
77
CONTROL UNIT SUCCESSIVE TONE
80
SCREW STEP SWITCH
83
SPRING WASHER ALTERNATOR CONNECTION D+
86
NUT , Replaced By: N304032005005
86
NUT IN CASE OF SUBSEQUENT INSTALLATION
89
HORN , Replaced By: A0045424420
89
HORN , Replaced By: A0045424920
89
HORN , Replaced By: A0035422320
89
HORN , Replaced By: A0035420520
89
HORN HIGH NOTE
89
HORN LOW NOTE 375 HZ
89
HORN HIGH NOTE 500HZ
89
FANFARE HORN
89
HORN LOW NOTE BOSCH
92
SCREW ELECTRIC CABLE TO HORN
95
LOCK WASHER T-FITTING TO BRACKET
98
BRACKET HORN
101
SCREW STRUT TO CROSS MEMBER M 10X25
104
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
107
NUT
110
WASHER RADIATOR TO RUBBER MOUNTING
113
SCREW BRACKET TO CONSOLE
116
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
121
NUT
126
LOOM TIE LINE MOUNTING 280 MM
