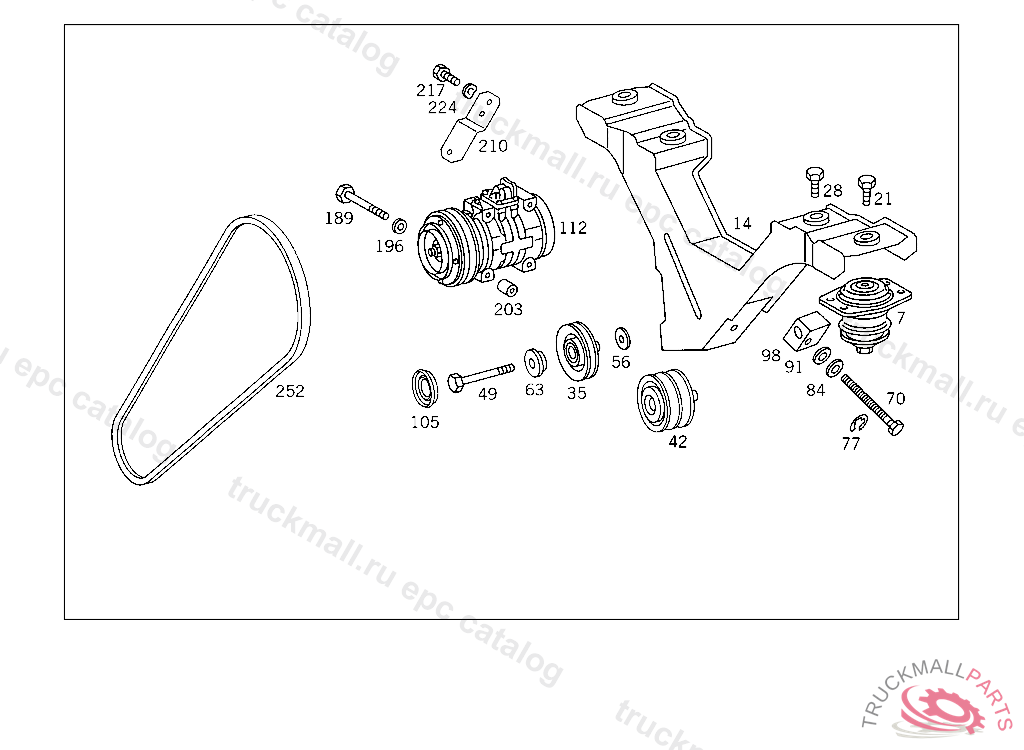

Поз.
Артикул
Описание
7
RUBBER MOUNTING ENGINE FRONT SUSPENSION
7
RUBBER MOUNTING FRONT
14
ENGINE SUPPORT ENGINE FRONT SUSPENSION
21
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 14X60
28
SCREW , Replaced By: N000960016261
28
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
28
SCREW , Replaced By: N308676016014
35
TIGHTENER PULLEY
42
TIGHTENER PULLEY ,5 345186
49
SCREW , Replaced By: N304017010055
49
SCREW , Replaced By: N304017010050
49
SCREW , Replaced By: N304014010004
49
HEXAGON HEAD BOLT CLAMP TO EXHAUST PIPE
56
WASHER , Replaced By: N009021010209
56
WASHER BRACKET TO COVERING
63
SPACER WASHER TIGHTENER PULLEY TO SUPPORT
70
SCREW TIGHTENER PULLEY TO SUPPORT
77
LOCK PLATE INTERMEDIATE BEARING
84
WASHER BRACKET TO SIDE MEMBER
91
FITTED WASHER TIGHTENER PULLEY TO SUPPORT
98
THREADED UNION TIGHTENER PULLEY TO SUPPORT
105
CAP
105
CAP , Replaced By: A3661320385
112
COMPRESSOR , Replaced By: A0002304211
112
COMPRESSOR
189
SCREW , Replaced By: N304014008021
189
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
196
WASHER EXHAUST MUFFLER TO STRAP
196
WASHER , Replaced By: N000125008443
203
BUSHING COOLING WATER LINE TO TRANSMISSION
203
BUSHING COMPRESSOR TO SUPPORT,5 484925
210
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 484924, Replaced By: A6732410240
210
BRACKET COMPRESSOR TO SUPPORT
217
SCREW , Replaced By: N304017008034
217
SCREW BRACKET TO CROSS CONNECTION STRUT
224
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
252
V-BELT , Replaced By: A0069972092
252
V-BELT12.5X1175
252
V-BELT SET3 PIECES 12.5X1200
999
SEAL RING PULLEY
999
PLATE COMPRESSOR TO SUPPORT,5 484925
999
ENGINE CROSS MEMBER FRONT BOTTOM
999
THREADED UNION COMPRESSOR TO SUPPORT
999
SCREW 3/2-WAY VALVE TO BRACKET M 8X105
999
SCREW , Replaced By: N304014008009
999
SCREW , Replaced By: N304017008021
999
SCREW 3/2-WAY VALVE TO BRACKET
999
SCREW PIPE CLAMP
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
