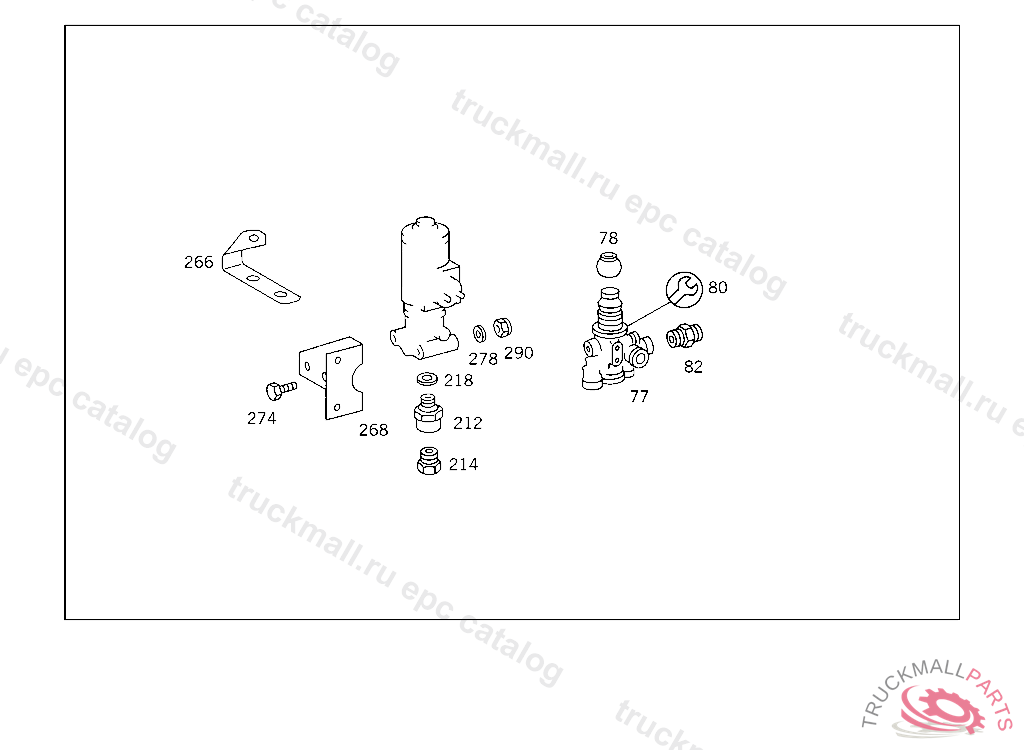

Поз.
Артикул
Описание
77
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
77
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
77
VALVE EXHAUST BRAKE 3/2-WAY VALVE WABCO
77
VALVE EXHAUST BRAKE 3/2-WAY VALVE BOSCH
78
CUP 3/2-WAY VALVE WABCO
80
REPAIR KIT 3/2-WAY VALVE BOSCH
80
REPAIR KIT 3/2-WAY VALVE BOSCH
80
REPAIR KIT 3/2-WAY VALVE WABCO
82
FITTING 3/2-WAY VALVE,CONNECTION: "20",5 7668945 800000-5 806949
212
FITTING LINE CONNECTION
212
FITTING LINE CONNECTION
212
FITTING LINE CONNECTION
214
SCREW. UNION SCREW , Replaced By: A0009973734
214
SCREW. UNION SCREW LINE CONNECTION
214
SCREW. UNION SCREW LINE CONNECTION
214
SCREW. UNION SCREW LINE CONNECTION
218
SEAL RING LINE CONNECTION
218
SEAL RING LINE CONNECTION
266
BRACKET SOLENOID VALVE,5 7668945 800000-5 806949
266
BRACKET LINE MOUNTING
268
BRACKET SOLENOID VALVE
274
SCREW , Replaced By: N308676012026
274
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
274
SCREW VALVE TO BRACKET M 8X55
274
SCREW VALVE TO BRACKET M 8X55
274
SCREW VALVE TO BRACKET M 8X55
274
SCREW , Replaced By: N304017008043
278
WASHER BRACKET TO FRAME
290
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
290
NUT END PIECE TO EXHAUST PIPE
290
NUT , Replaced By: N913004008001
290
NUT , Replaced By: N913004008001
290
NUT , Replaced By: N913004008001
999
CONNECTOR DISTRIBUTOR TO CAB
999
CLAMP6/14-15 MM
