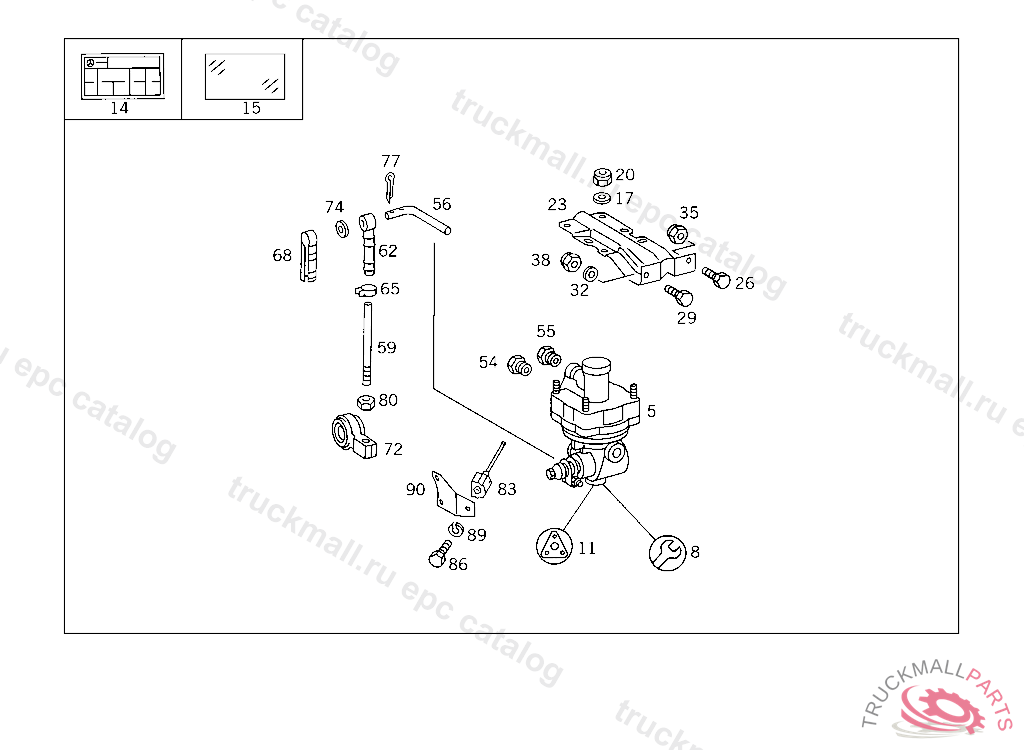

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
REPAIR KIT BRAKE POWER REGULATOR WABCO
11
REPAIR KIT BRAKE POWER REGULATOR BOSCH
11
REPAIR KIT BRAKE POWER REGULATOR KNORR
14
GUIDE SIGN LOAD-DEPENDING BRAKE
15
ADHESIVE FOIL GUIDE SIGN
17
WASHER EXHAUST MUFFLER TO STRAP
17
WASHER , Replaced By: N000125008443
20
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
20
NUT , Replaced By: N913004008001
23
BRACKET BRAKE BOOSTER ASSEMBLIES
26
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
29
SCREW LEFT AND RIGHT CONSOLES TO CAB
29
SCREW , Replaced By: N308676012015
32
WASHER BRACKET TO FRAME
35
NUT STRAP TO BRACKET
35
NUT , Replaced By: N910113010000
38
NUT SUPPORT TO SIDE MEMBER
54
SCREW. UNION SCREW LINE CONNECTION
55
SCREW. UNION SCREW , Replaced By: A0009973734
55
SCREW. UNION SCREW LINE CONNECTION
56
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
59
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
62
CONNECTOR PULL ROD TO LEVER
65
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
65
CLAMP , Replaced By: N000000000665
68
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
72
BALL SOCKET PULL ROD
74
WASHER , Replaced By: N000125008443
74
WASHER EXHAUST MUFFLER TO STRAP
77
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
80
NUT
83
METAL SPRING BELLOWS BRAKE POWER REGULATOR CONTROL,5 557360K 049885
86
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
89
LOCK WASHER FITTING TO BRACKET
90
BRACKET BRACKET TO REAR AXLE HOUSING
