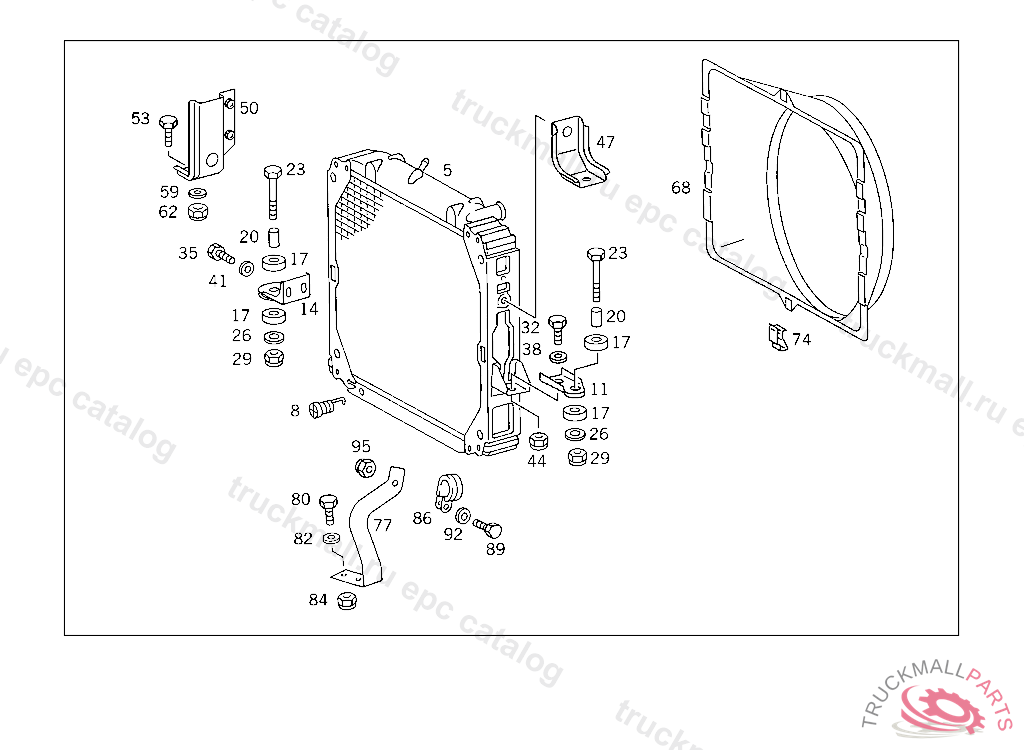

Поз.
Артикул
Описание
5
RADIATOR
8
SCREW WATER DRAIN
11
SUPPORT RADIATOR,LEFT
14
SUPPORT RADIATOR,RIGHT
17
RUBBER MOUNTING SUPPORT TO SIDE MEMBER
20
SPACER TUBE SUPPORT TO SIDE MEMBER
23
SCREW BRACKET TO BELL HOUSING
26
WASHER SUPPORT TO SIDE MEMBER
29
NUT , Replaced By: N910113010000
29
NUT STRAP TO BRACKET
32
SCREW , Replaced By: N308676012038
32
SCREW BRACKET TO TRANSMISSION
35
SCREW COMPRESSED AIR LINE MOUNTING M 10X14
35
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
35
SCREW , Replaced By: N304017010028
38
WASHER COVER PLATE TO FRAME
41
WASHER RADIATOR TO RUBBER MOUNTING
41
WASHER , Replaced By: N000125010532
44
NUT SUPPORT TO SIDE MEMBER
47
BRACKET RADIATOR,LEFT TOP
50
BRACKET RIGHT ANTINOISE CAPSULE
53
SCREW EXHAUST PIPE TO BRACKET
59
WASHER RADIATOR TO RUBBER MOUNTING
59
WASHER , Replaced By: N000125010532
62
NUT STRAP TO BRACKET
62
NUT , Replaced By: N910113010000
68
AIR BAFFLE RADIATOR
74
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
77
BRACKET OIL DIPSTICK
80
SCREW PIPE CLAMP
80
SCREW , Replaced By: N304017008021
82
WASHER , Replaced By: N000125008443
82
WASHER EXHAUST MUFFLER TO STRAP
84
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
84
NUT , Replaced By: N913004008001
84
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
86
CLAMP OIL DIPSTICK TO BRACKET
86
CLAMP OIL DIPSTICK TO RADIATOR
89
SCREW , Replaced By: N304017008021
89
SCREW PIPE CLAMP
92
WASHER , Replaced By: N000125008443
92
WASHER EXHAUST MUFFLER TO STRAP
95
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
95
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
95
NUT , Replaced By: N913004008001
