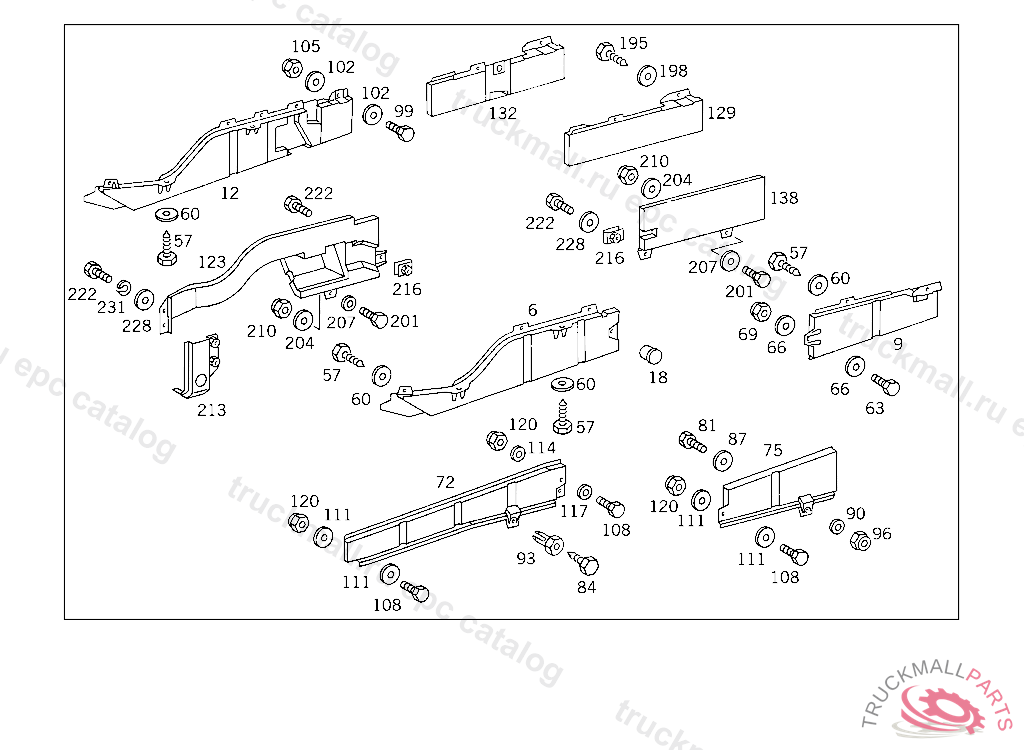

Поз.
Артикул
Описание
6
ANTINOISE CAPSULE LEFT TOP
9
ANTINOISE CAPSULE LEFT TOP, UP TO IDENT NO. 5 143360,FROM IDENT NO. SEE SA 24587/01
12
ANTINOISE CAPSULE LEFT TOP
18
PLUG
18
PLUG
57
SCREW ANTINOISE CAPSULE,TOP,TO CAB SIDE MEMBER, UP TO IDENT NO. 5 143360,FROM IDENT NO. SEE SA 24587/01
57
SHEET METAL SCREW , Replaced By: N000000000989
57
SHEET METAL SCREW RIGHT TOP ANTINOISE CAPSULE TO CAB B 6.3X25
60
WASHER , Replaced By: N009021006208
60
WASHER COMPRESSED AIR LINE TO BRACKET
63
SCREW , Replaced By: N304017008034
63
SCREW BRACKET TO CROSS CONNECTION STRUT
66
WASHER , Replaced By: N009021008213
66
WASHER BRACKET TO LEFT SIDE MEMBER
69
NUT , Replaced By: N913004008001
69
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
72
ANTINOISE CAPSULE LEFT BOTTOM
75
ANTINOISE CAPSULE LEFT BOTTOM, UP TO IDENT NO. 5 143360,FROM IDENT NO. SEE SA 24587/01
81
SCREW , Replaced By: N304017010002
81
SCREW BRACKET TO SIDE MEMBER
84
SHEET METAL SCREW RIGHT ANTINOISE CAPSULE TO FRAME
84
SHEET METAL SCREW RIGHT ANTINOISE CAPSULE TO FRAME
87
WASHER , Replaced By: N009021010209
87
WASHER BRACKET TO COVERING
90
WASHER , Replaced By: N006902011102
90
WASHER , Replaced By: N006902011100
90
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
93
LOCK RIGHT ANTINOISE CAPSULE TO FRAME
93
LOCK RIGHT ANTINOISE CAPSULE TO FRAME
96
NUT STRAP TO BRACKET
96
NUT , Replaced By: N910113010000
99
SCREW BRACKET TO CROSS CONNECTION STRUT
99
SCREW , Replaced By: N304017008034
102
WASHER , Replaced By: N009021010209
102
WASHER BRACKET TO COVERING
105
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
105
NUT , Replaced By: N913004008001
108
SCREW BRACKET TO CROSS CONNECTION STRUT
108
SCREW BRACKET TO CROSS CONNECTION STRUT
108
SCREW , Replaced By: N304017008034
111
WASHER , Replaced By: N009021008213
111
WASHER BRACKET TO LEFT SIDE MEMBER
114
WASHER EXHAUST MUFFLER TO STRAP
114
WASHER EXHAUST MUFFLER TO STRAP
114
WASHER , Replaced By: N000125008443
117
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
117
WASHER , Replaced By: N006902011100
117
WASHER , Replaced By: N006902011102
120
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
120
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
120
NUT , Replaced By: N913004008001
123
ANTINOISE CAPSULE RIGHT TOP
123
ANTINOISE CAPSULE RIGHT TOP
123
ANTINOISE CAPSULE RIGHT TOP
129
ANTINOISE CAPSULE RIGHT TOP, UP TO IDENT NO. 5 143360,FROM IDENT NO. SEE SA 24587/01
132
ANTINOISE CAPSULE RIGHT TOP
138
ANTINOISE CAPSULE RIGHT BOTTOM, UP TO IDENT NO. 5 143360,FROM IDENT NO. SEE SA 24587/01
195
SHEET METAL SCREW , Replaced By: N000000000989
195
SCREW ANTINOISE CAPSULE,TOP,TO CAB SIDE MEMBER, UP TO IDENT NO. 5 143360,FROM IDENT NO. SEE SA 24587/01
195
SHEET METAL SCREW RIGHT TOP ANTINOISE CAPSULE TO CAB B 6.3X25
198
WASHER , Replaced By: N009021006208
198
WASHER COMPRESSED AIR LINE TO BRACKET
201
SCREW BRACKET TO SIDE MEMBER
201
SCREW BRACKET TO SIDE MEMBER
201
SCREW , Replaced By: N304017010002
204
WASHER BRACKET TO COVERING
204
WASHER BRACKET TO COVERING
204
WASHER , Replaced By: N009021010209
207
WASHER , Replaced By: N006902011102
207
WASHER , Replaced By: N006902011100
207
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
207
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
210
NUT , Replaced By: N910113010000
210
NUT STRAP TO BRACKET
210
NUT STRAP TO BRACKET
213
BRACKET RIGHT ANTINOISE CAPSULE
216
BRACKET RIGHT ANTINOISE CAPSULE
222
SCREW PIPE CLAMP
222
SCREW PIPE CLAMP
222
SCREW , Replaced By: N304017008021
228
WASHER , Replaced By: N009021008213
228
WASHER BRACKET TO LEFT SIDE MEMBER
228
WASHER BRACKET TO LEFT SIDE MEMBER
228
WASHER STRUT TO CROSS MEMBER
228
WASHER , Replaced By: N007349010007
231
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
SCREW CLAMP TO BRACKET,5 597426
999
SCREW BRACKET TO BRACKET
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW HAND PUMP TO BRACKET
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017008021
999
BRACKET RIGHT ANTINOISE CAPSULE
999
BRACKET , Replaced By: A6733170684
999
BRACKET , Replaced By: A3914750026
999
COVER PLATE RIGHT BOTTOM
999
ANTINOISE CAPSULE RIGHT BOTTOM
999
ANTINOISE CAPSULE RIGHT TOP
999
ANTINOISE CAPSULE LEFT TOP
999
ANTINOISE CAPSULE LEFT BOTTOM
999
LOCK ANTINOISE CAPSULE TO ANTINOISE CAPSULE
999
BRACKET BRACKET TO FRAME SIDE MEMBER
999
DAMPING STRIP
999
DAMPING STRIP
999
DAMPING STRIP RIGHT,5 462573
999
DAMPING STRIP RIGHT,5 462573
999
DAMPING STRIP ,5 462572
999
DAMPING STRIP ,5 462572
999
DAMPING STRIP ,5 462572
999
DAMPING STRIP
999
DAMPING STRIP
999
ANTINOISE CAPSULE RIGHT TOP
999
ANTINOISE CAPSULE RIGHT TOP
999
ANTINOISE CAPSULE RIGHT TOP
999
SHIM CONSOLE TO FRAME, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
999
SCREW , Replaced By: N910142008009
999
SCREW , Replaced By: N910142008001
999
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
999
NUT BRACKET TO BRACKET
