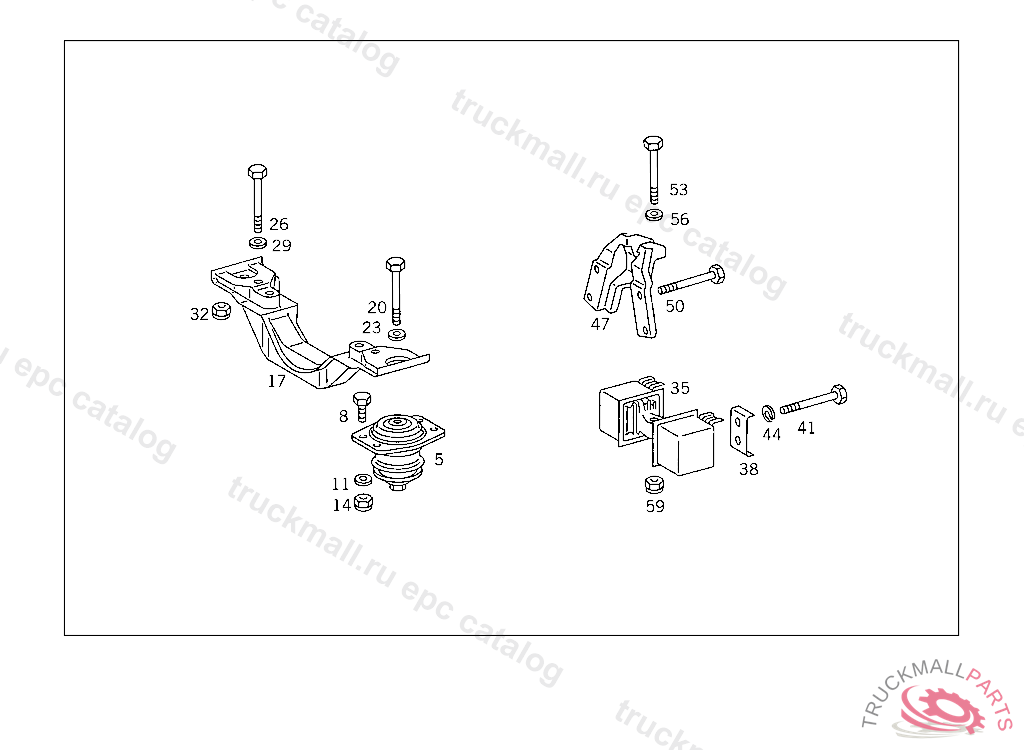

Поз.
Артикул
Описание
5
RUBBER MOUNTING FRONT
8
SCREW REAR EXHAUST PIPE TO MUFFLER
8
SCREW END PIECE TO EXHAUST PIPE M 10X25
8
SCREW BRACKET TO FRAME SIDE MEMBER
11
WASHER STRUT TO CROSS MEMBER
11
WASHER , Replaced By: N007349010007
14
NUT , Replaced By: N910113010000
14
NUT STRAP TO BRACKET
17
ENGINE SUPPORT ENGINE FRONT SUSPENSION,5 548534
20
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
23
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
26
SCREW ENGINE TO ENGINE FRONT SUPPORT M16X135,5 548534
26
SCREW TRAILER COUPLING TO REAR CROSS MEMBER M 16X65
29
WASHER CONSOLE TO FRAME
32
NUT INTERMEDIATE PIECE TO SUPPORT
32
NUT INTERMEDIATE PIECE TO SUPPORT
32
NUT , Replaced By: N910113016003
35
RUBBER MOUNTING REAR
35
RUBBER MOUNTING REAR
35
RUBBER MOUNTING REAR
38
REINFORCEMENT RUBBER MOUNTING TO REAR CROSS MEMBER
41
SCREW STRUT TO CONSOLE
44
LOCK WASHER FITTING TO BRACKET
47
BRACKET ENGINE REAR MOUNTING
50
SCREW CONNECTOR TO EXHAUST MANIFOLD
53
SCREW , Replaced By: N308676018010
53
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
56
WASHER ENGINE MOUNTING TO SUPPORTING ARM
59
NUT RUBBER MOUNTING TO BRACKET
999
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
