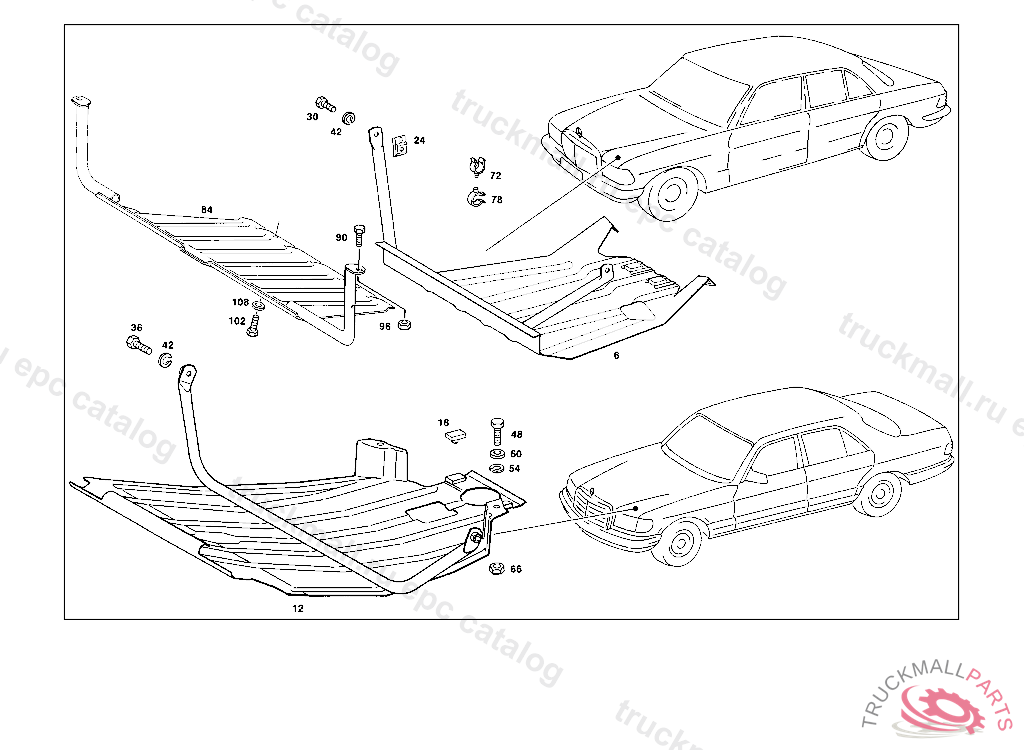

Поз.
Артикул
Описание
6
PROTECTIVE PLATE OIL PAN
12
PROTECTIVE PLATE OIL PAN
18
RUBBER BUFFER
24
NUT RETAINER PROTECTIVE PLATE TO SIDE MEMBER
30
SCREW CLAMP TO BRACKET AND TO PIPE
36
SCREW PIPE CLAMP
36
SCREW , Replaced By: N304017008021
42
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
48
SCREW , Replaced By: N304017008021
48
SCREW PIPE CLAMP
54
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
60
WASHER EXHAUST MUFFLER TO STRAP
60
WASHER , Replaced By: N000125008443
66
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
66
NUT , Replaced By: N913004008001
66
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
72
CLAMP HOSE TO HOSE 20 MM
78
CLAMP , Replaced By: A0005465143
84
PROTECTIVE PLATE RADIATOR, TO BE ADAPTED DURING ASSEMBLY
90
SCREW PIPE CLAMP
90
SCREW , Replaced By: N304017008021
96
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
96
NUT , Replaced By: N913004008001
96
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
102
SCREW , Replaced By: N304017008021
102
SCREW PIPE CLAMP
108
WASHER , Replaced By: N009021008213
108
WASHER BRACKET TO LEFT SIDE MEMBER
999
GROMMET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
