Поз.
Артикул
Описание

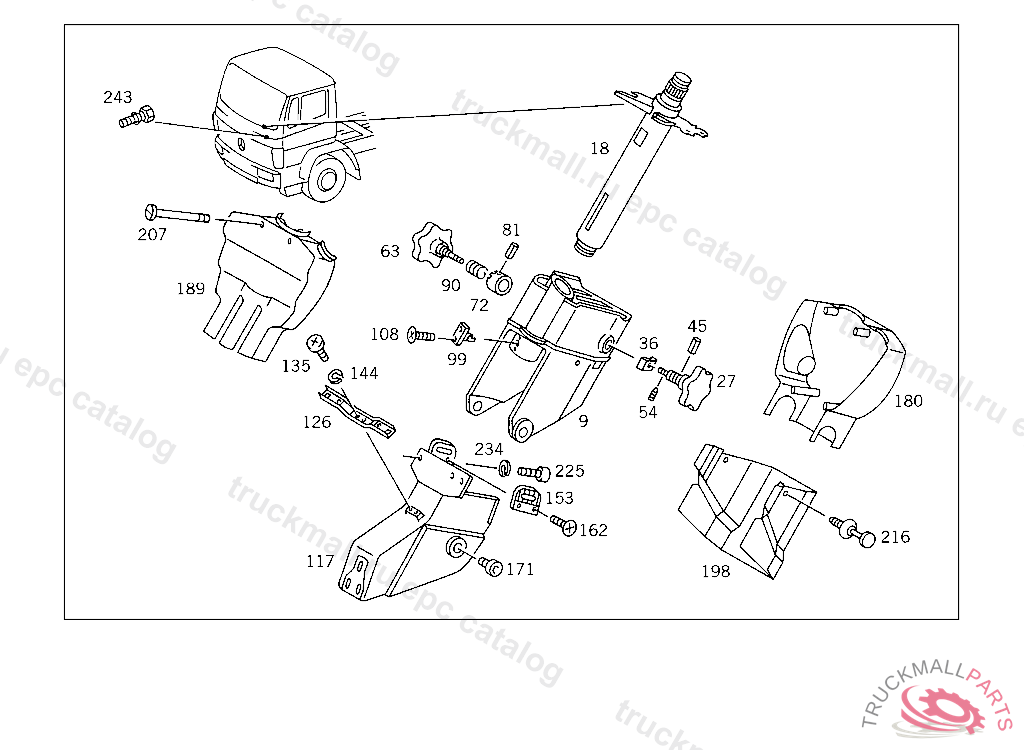

9
STEERING COLUMN END
18
BEARING STEERING SHAFT,5 485790
18
BEARING STEERING SHAFT,5 485789
18
BEARING STEERING SHAFT,5 485789
18
BEARING STEERING SHAFT, NOT USED
27
HANDLE , Replaced By: A6554600369
27
HANDLE LEFT,4 727154
36
THRUST PLATE STEERING WHEEL HEIGHT ADJUSTMENT,4 727154
45
CLAMPING SLEEVE , Replaced By: A6559910061
45
DOWEL PIN STEERING WHEEL TILT ADJUSTMENT,4 188879
54
HEADLESS SETSCREW LEFT HANDLE
63
HANDLE STEERING COLUMN TILT ADJUSTMENT
72
THRUST PLATE HANDLE
81
ROLL PIN. CLAMPING SLEEVE BRACKET TO STEERING COLUMN END
90
SPRING , Replaced By: A2029932601
90
SPRING HANDLE
99
GUIDE STEERING SHAFT,5 485789
108
SCREW WASHER TO STEERING COLUMN BRACKET M 4X10,4 231945
108
SCREW (SHEAR-OFF SCREW) STEERING SHAFT BEARING IN STEERING GEAR HOUSING
117
STEERING COLUMN BRACKET STEERING COLUMN
117
STEERING COLUMN BRACKET STEERING COLUMN
126
BRACKET AT STEERING COLUMN BRACKET
135
SCREW CLAMP MOUNTING M 6X16
135
SCREW , Replaced By: N000000001146
144
SPRING WASHER LICENSE PLATE TO BRACKET
153
WASHER AT STEERING COLUMN BRACKET
162
SCREW WASHER TO STEERING COLUMN BRACKET M 5X12,4 231946
171
PIN STEERING COLUMN BRACKET TO STEERING COLUMN END
180
SHELL STEERING COLUMN PANELLING, NOT USED
180
SHELL STEERING COLUMN PANELLING
189
SHELL STEERING COLUMN PANELLING
189
SHELL STEERING COLUMN PANELLING, NOT USED
198
SHELL STEERING COLUMN PANELLING
207
SCREW STEERING COLUMN PANELLING
216
RIVET BUSHING AND LEVER TO CAB
225
SCREW STEERING COLUMN TO CAB
234
SPRING WASHER , Replaced By: N000137008212
234
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
243
SCREW STEERING COLUMN TO CAB
999
LOOM TIE LINE MOUNTING 280 MM
999
COVERING IDLE-SPEED-ADJUSTER COVERING, NO.8316INO.7C52INO.7B90INO.9051I II I
999
COVERING IDLING ADJUSTER, NO.8316 INO.7C52 INO.7B90 INO.9051 III I
999
STRAP STEERING SHAFT BEARING TO CAB
999
SCREW , Replaced By: A0004622271
999
BOOT STEERING COLUMN MOUNTED SWITCH, NO.8316 INO.7C52 IIIII I
999
SHELL STEERING COLUMN PANELLING, NO.8316 INO.7C52 INO.7B90 INO.9051 III I
999
SHELL STEERING COLUMN PANELLING, NO.8316INO.7C52INO.7B90INO.9051I II I
999
GUIDE STEERING SHAFT,5 485789
999
STEERING SHAFT
999
STEERING SHAFT
999
CABLE CONDUIT CABLE PASSAGE THRU STEERING COLUMN JACKET TUBE
999
BRACKET CABLE PASSAGE THRU STEERING COLUMN JACKET TUBE
999
BEARING , Replaced By: A6764600137
999
BEARING , Replaced By: A6764600237
999
BEARING , Replaced By: A6764600137
999
STEERING SHAFT
999
STEERING SHAFT
999
STUD BOLT BRACKET TO TRANSMISSION
999
SCREW DIODE CASE TO OPERATING UNIT CASE
999
WASHER BRACKET TO FENDER BRACKET
999
CLAMPING SLEEVE STEERING COLUMN BRACKET
999
NUT
