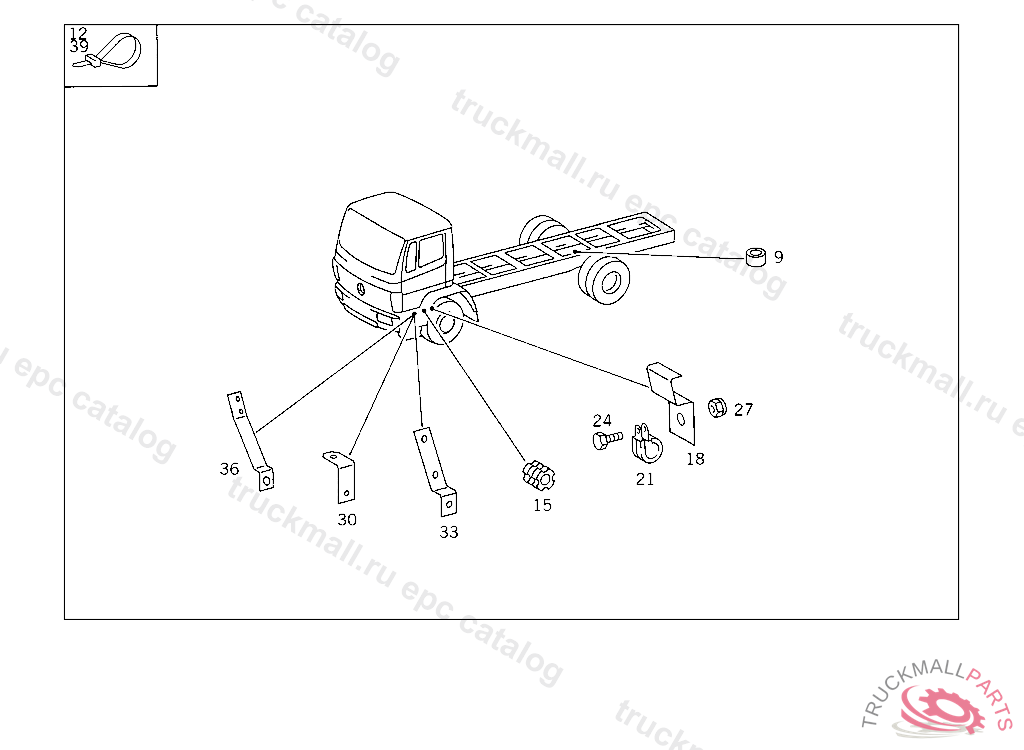

Поз.
Артикул
Описание
9
SPACER TUBE REAR AXLE REGULATING SOLENOID VALVE
9
SPACER TUBE , Replaced By: A4609915140
12
LOOM TIE LINE MOUNTING
15
BRACKET LINE MOUNTING
18
BRACKET SENSOR CABLE TO DIAPHRAGM CYLINDER
21
CLAMP SENSOR CABLE TO BRACKET
24
SCREW PUMP TO BRACKET
24
SCREW , Replaced By: N304017006016
27
NUT PUMP TO BRACKET
27
NUT , Replaced By: N913004006001
30
BRACKET AT BRAKE VALVE
30
BRACKET , Replaced By: A6522930240
33
BRACKET
36
BRACKET
39
LOOM TIE LINE MOUNTING 280 MM
999
SPACER TUBE BRACKET MOUNTING
999
SPACER TUBE , Replaced By: A3579915740
999
BRACKET FUEL LINES TO TRANSMISSION
999
BRACKET JUNCTION BOX TO FRAME
999
BRACKET SENSOR CABLE
999
BRACKET SENSOR CABLE
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW VALVE TO BRACKET, Replaced By: N304014008002
999
SCREW , Replaced By: N304017008021
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW VALVE TO BRACKET
999
SCREW PIPE CLAMP
999
NUT STRAP TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
