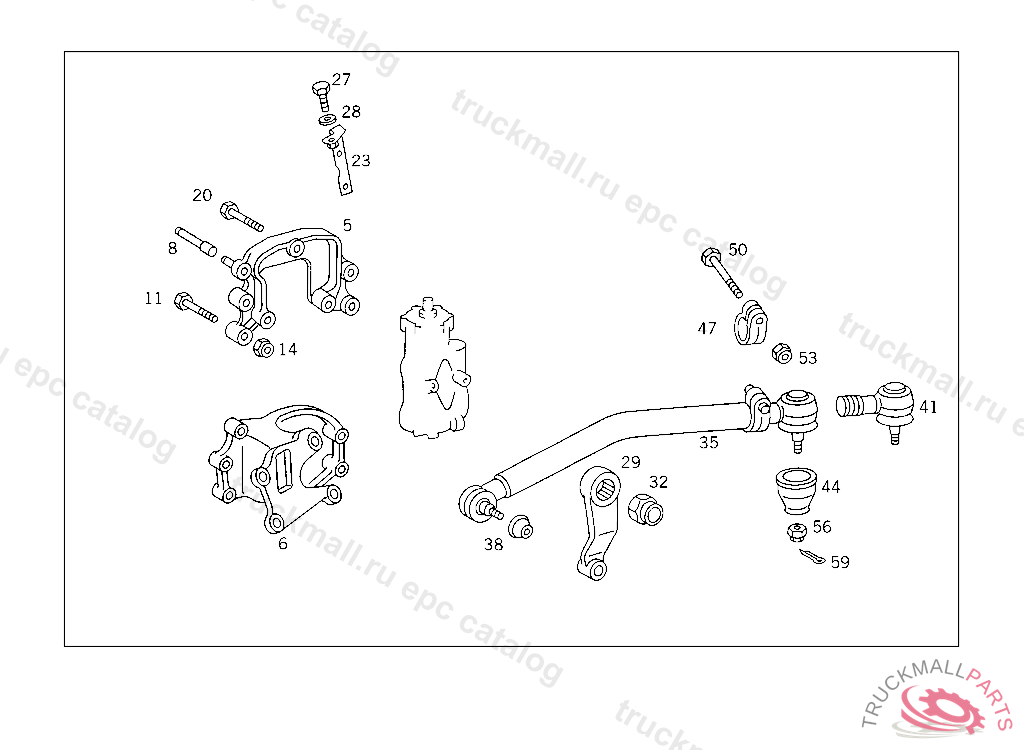

Поз.
Артикул
Описание
5
STEERING SUPPORT (STEERING BRACKET)
5
STEERING BRACKET ,K 055089
5
STEERING BRACKET
6
STEERING SUPPORT ,K 055089
8
PIN
11
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
11
SCREW , Replaced By: N000960016206
14
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
20
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
20
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
20
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
20
SCREW , Replaced By: N308676016007
23
BRACKET BRACKET TO STEERING BRACKET,K 055089
28
WASHER EXHAUST MUFFLER TO STRAP
29
PITMAN ARM ,5 424630
29
PITMAN ARM ,5 424630
32
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
35
DRAG LINKEHRENREICH,5 424630
35
DRAG LINKLEMFOERDER,5 424630
35
DRAG LINKEHRENREICH,5 424630
35
DRAG LINKLEMFOERDER,5 424630
38
BOOT FIXED PART OF JOINT
41
DRAG LINK END TO BE SCREWED INTO DRAG LINK EHRENREICH
41
DRAG LINK END ,K 055088
44
BOOT SCREWED PART OF JOINT
47
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
47
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
50
SCREW TORSION BAR TO SHACKLE,5 903514
50
SCREW ,5 903514, Replaced By: N000960012353
53
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
53
NUT , Replaced By: N910113012003
56
NUT , Replaced By: N000979020000
59
COTTER PINROCKINGER TYP 260 G140
999
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
999
SCREW , Replaced By: N910105010040
999
SCREW SUPPORT TO TRANSMISSION M 16X85
999
SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
999
SCREW BEARING BRACKET TO REAR AXLE M 20X1.5X40
999
SCREW PLATE TO FRAME M20 X 1.5 X 50
999
PITMAN ARM ,K 244310
999
PITMAN ARM ,K 244310
999
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
999
SCREW STEERING TO STEERING BRACKET M 20X1.5X40,K 244310
