Поз.
Артикул
Описание

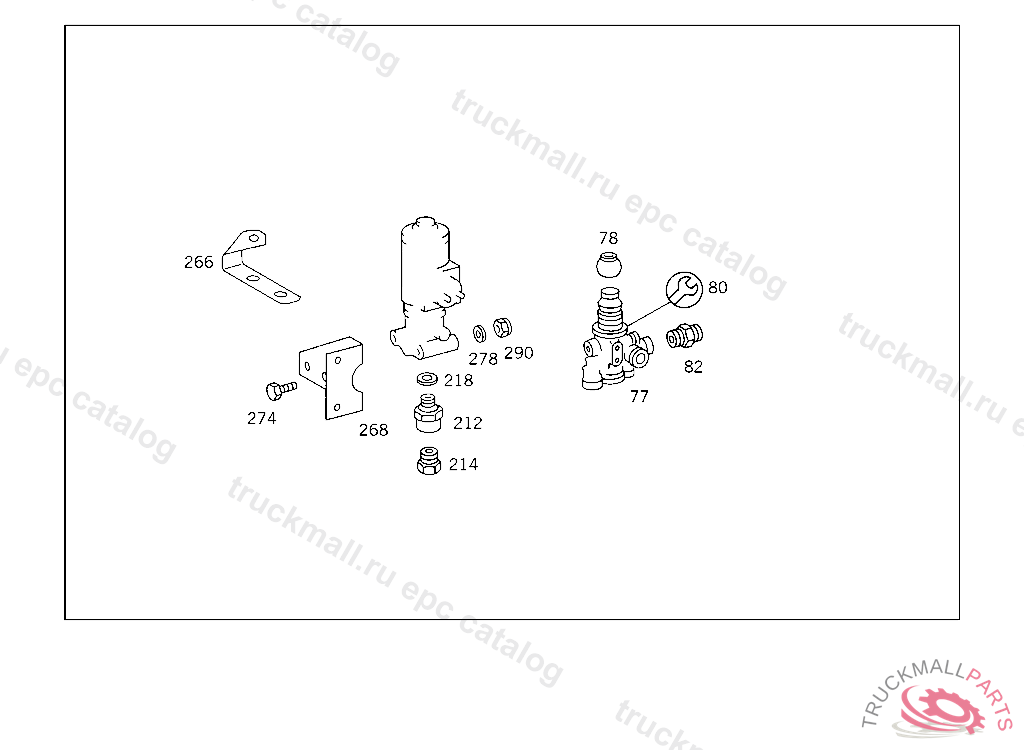

77
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
77
VALVE EXHAUST BRAKE 3/2-WAY VALVE BOSCH
77
VALVE EXHAUST BRAKE 3/2-WAY VALVE WABCO
77
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
78
CUP 3/2-WAY VALVE WABCO
80
REPAIR KIT 3/2-WAY VALVE WABCO
80
REPAIR KIT 3/2-WAY VALVE BOSCH
80
REPAIR KIT 3/2-WAY VALVE BOSCH
82
FITTING 3/2-WAY VALVE,CONNECTION: "20",5 7668945 800000-5 806949
212
FITTING LINE CONNECTION
214
SCREW. UNION SCREW , Replaced By: A0009973734
214
SCREW. UNION SCREW LINE CONNECTION
218
SEAL RING LINE CONNECTION
266
BRACKET SOLENOID VALVE,5 7668945 800000-5 806949
266
BRACKET LINE MOUNTING
268
BRACKET SOLENOID VALVE
274
SCREW VALVE TO BRACKET M 8X55
274
SCREW , Replaced By: N304017008043
274
SCREW , Replaced By: N308676012026
274
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
278
WASHER BRACKET TO FRAME
290
NUT , Replaced By: N913004008001
290
NUT END PIECE TO EXHAUST PIPE
290
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
CLAMP6/14-15 MM
999
CONNECTOR DISTRIBUTOR TO CAB
