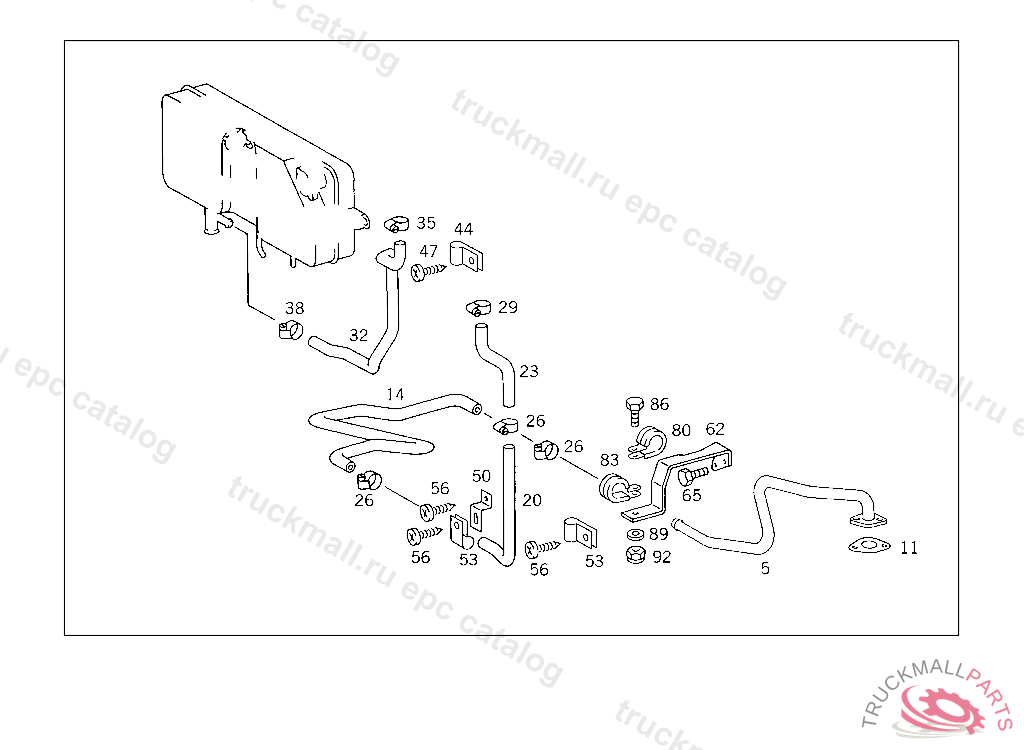

Поз.
Артикул
Описание
5
PIPE SOCKET (HEATING LINE),FROM ENGINE TO HEATER
11
GASKET PIPE SOCKET TO CYLINDER HEAD, UP TO IDENT NO.5 448662, FROM IDENT NO. 5 448663 SEE UNIT MICROFICHE
11
GASKET , Replaced By: A3662030380
14
HOSE (HEATING LINE),FROM ENGINE TO HEATER
20
PIPE (HEATING LINE),FROM ENGINE TO HEATER
23
HOSE (HEATING LINE),FROM ENGINE TO HEATER
26
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
26
CLAMP , Replaced By: N000000000667
29
CLAMP HOSE TO FITTING AND TO OIL TANK
29
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
32
HOSE (HEATING LINE) FROM EXPANSION TANK TO HEATER
35
CLAMP HOSE TO FITTING AND TO OIL TANK
35
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
38
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
38
CLAMP , Replaced By: N000000000667
44
CLAMP HOSE TO FIRE WALL
47
SHEET METAL SCREW
47
SHEET METAL SCREW , Replaced By: N007981003214
50
BRACKET COOLING WATER LINE TO FIRE WALL
53
CLAMP FEED LINE TO THERMOSTAT
56
SHEET METAL SCREW BRACKET TO CAB
62
BRACKET DE-AERATION LINE, UP TO IDENT NO.5 448662, FROM IDENT NO. 5 448663 SEE UNIT MICROFICHE
65
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
80
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
83
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
86
SCREW , Replaced By: N304017008034
86
SCREW BRACKET TO CROSS CONNECTION STRUT
89
WASHER EXHAUST MUFFLER TO STRAP
89
WASHER , Replaced By: N000125008443
92
NUT , Replaced By: N913004008001
92
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
