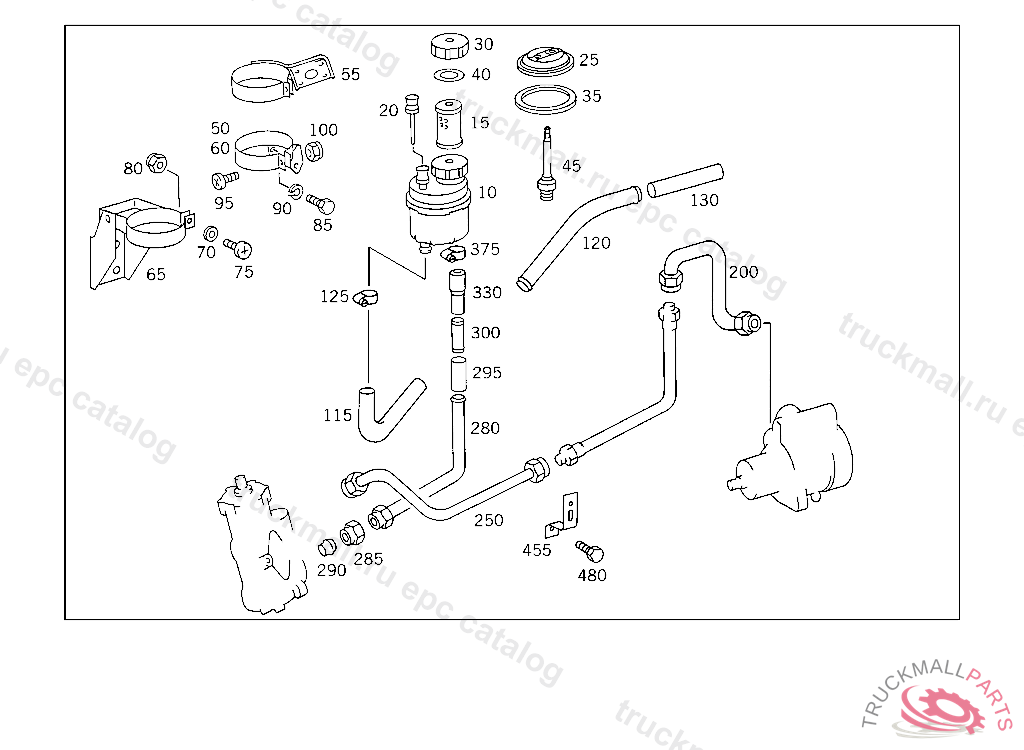

Поз.
Артикул
Описание
10
TANK OIL
10
TANK , Replaced By: A0004664502
15
PIPETO 000 466 38 02
20
OIL DIPSTICK , Replaced By: A0004660867
20
OIL DIPSTICK
25
COVERTO 000 466 38 02
30
FILLER CAP
35
SEAL RINGTO 000 466 38 02
40
SEAL RING
45
FILTER CARRIERTO 000 466 38 02
50
BRACKET OIL TANK,5 094745
55
BRACKET OIL TANK,K 055088
60
BRACKET OIL TANK,K 055089
65
BRACKET OIL TANK,5 553319
65
BRACKET , Replaced By: A6754601035, +001A6752600262
70
SPACER WASHER BRACKET TO FRAME
75
SCREW OIL TANK TO BRACKET
80
NUT , Replaced By: N913004006001
80
NUT PUMP TO BRACKET
85
SCREW CENTRAL LOCK TO CAB M 10X16
90
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
95
SCREW BEARING BRACKET TO SIDE MEMBER
100
NUT COMBINATION CYLINDER TO BEARING BRACKET
100
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
115
HOSE , Replaced By: A6254660381
115
HOSE ,K 055044
115
HOSE FROM OIL TANK TO SUCTION LINE
120
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,K 055044K 136985
120
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 163366
120
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,K 136986
120
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
120
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
120
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
120
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 529813
120
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 529814K 055043
125
CLAMP , Replaced By: N000000000667
125
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
130
HOSE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
200
LINE FROM PUMP TO HIGH PRESSURE HOSE,5 374583
250
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX,5 529814K 055043
250
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX, Replaced By: A0005516156
250
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX,K 055044
250
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX,5 529813
250
TUBE FROM HIGH PRESSURE HOSE TO STEERING
280
LINE12 MM, ORDER BY THE METER4 691315
280
LINE , Replaced By: A0004291001
285
UNION NUT LINE CONNECTION, Replaced By: N000000006239
285
UNION NUT LINE CONNECTION
290
SEAL CONE LINE CONNECTION
290
GLAND , Replaced By: A0019901967
295
HOSE , Replaced By: A0009974752
295
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
300
LINE (RETURN LINE),FROM STEERING TO OIL TANK
300
LINE , Replaced By: A6734662065
300
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6744661865
330
HOSE ,K 055044
330
HOSE (RETURN LINE),FROM STEERING TO OIL TANK,K 055043
375
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
375
CLAMP HOSE TO FITTING AND TO OIL TANK
455
BRACKET , Replaced By: A3164290040
455
BRACKET DELIVERY AND RETURN LINES,K 055018
455
BRACKET DELIVERY AND RETURN LINES,5 529813
455
BRACKET OIL LINE MOUNTING
480
SCREW DISTRIBUTOR TO CAB
480
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
480
SCREW , Replaced By: N304017010028
999
LINE (DELIVERY LINE) FROM FITTING TO STEERING
999
JOINT R.H. THREAD LEMFOERDER,5 180856
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
999
SCREW BRACKET TO CONSOLE M 12X1.5X65
999
FITTING DELIVERY LINE TO PUMP
999
PROTECTIVE CAP
999
WASHER LEVER TO BRACKET 30X10.5X4 MM
999
BRACKET FEED LINE AND RETURN LINE,5 346007
999
LINE , Replaced By: A0004291001
999
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,5 955601
999
BOOT STEERING SHAFT
999
BRACKET , Replaced By: A6173020440
999
BRACKET AIR INTAKE PIPE
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
999
LINE , Replaced By: A0004292301
999
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX,5 163366
999
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 163366
999
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX,K 244309
999
PITMAN ARM
999
PITMAN ARM
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
999
STEERING SHAFTLEMFOERDR,520 MM,5 404617
999
STEERING SHAFT , Replaced By: A6824607309
999
DRAG LINKLEMFOERDER
999
PITMAN ARM
999
PITMAN ARM , Replaced By: A6754631701
999
PITMAN ARM ,K 055089
999
PITMAN ARM ,K 055089
999
PITMAN ARM ,K 244310
999
PITMAN ARM ,K 244310
999
PITMAN ARM ,K 244310
999
PITMAN ARM ,K 244310
999
DRAG LINKEHRENREICH,5 424630
999
DRAG LINKEHRENREICH,5 424630
999
DRAG LINKLEMFOERDER,K 055089
999
DRAG LINKLEMFOERDER,K 055089
999
PITMAN ARM ,5 424630
999
PITMAN ARM ,5 424630
999
SCREW , Replaced By: N308676016020
999
SCREW-IN FITTING FROM DELIVERY LINE TO STEERING
999
SCREW CONSOLE TO FRAME
