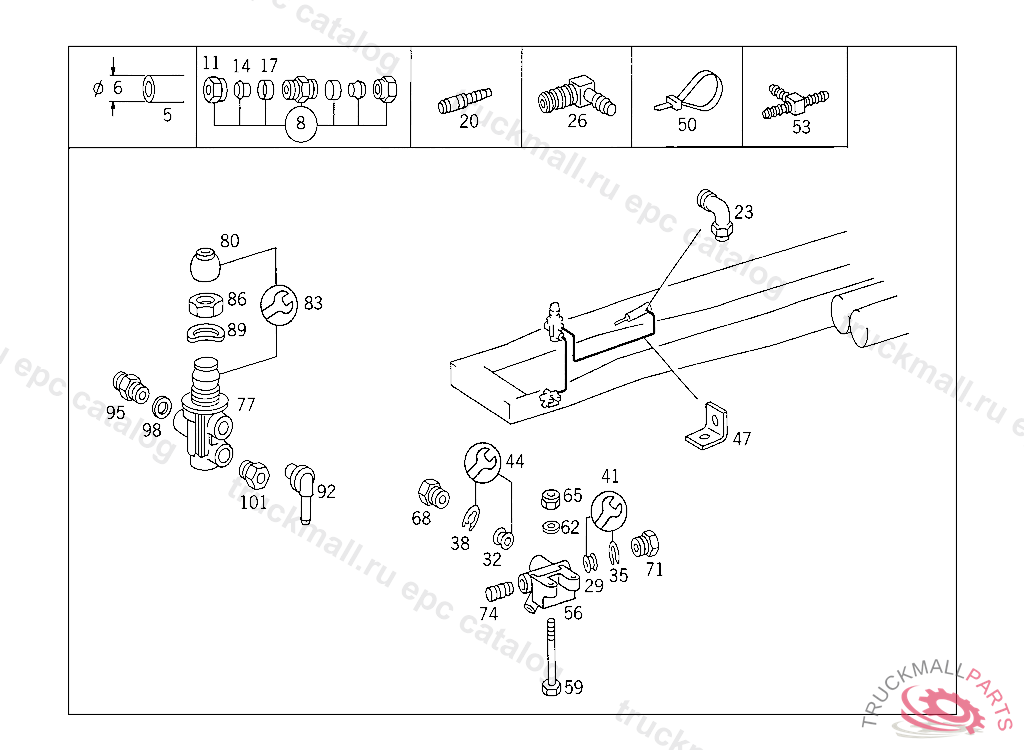

Поз.
Артикул
Описание
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
5
PLASTIC PIPE RISING PIPE 4X6 MM
8
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
11
UNION NUT
14
GLAND , Replaced By: A0019901667
14
SEAL CONE
17
SLEEVE LEAK LINE
20
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
20
CONNECTOR , Replaced By: A0029905378
23
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
23
FITTING , Replaced By: A0019909871
23
FITTING FROM PUMP TO CYLINDER
26
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
29
LOCK RING LINE CONNECTION
29
SEAL RING , Replaced By: A0009940747
32
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
35
LOCK , Replaced By: A0009945448
35
LOCK LINE CONNECTION
38
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
41
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
41
REPAIR KIT , Replaced By: A0309971748
44
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
47
BRACKET SENSOR CABLE TO FRONT AXLE
50
LOOM TIE LINE MOUNTING
53
DISTRIBUTOR HOSE WIDTH, 6 MM
56
DISTRIBUTOR ENGINE SHUT-OFF,5 766894
59
SCREW CONNECTOR
62
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
62
WASHER COMPRESSED AIR LINE TO BRACKET
65
NUT , Replaced By: N913004006001
65
NUT PUMP TO BRACKET
68
SCREW. UNION SCREW LINE CONNECTION
71
SCREW. UNION SCREW , Replaced By: A0009973734
71
SCREW. UNION SCREW LINE CONNECTION
74
PLUG DISTRIBUTOR,CONNECTIONS: "03,04,05",TO M 16,5 766894
77
VALVE EXHAUST BRAKE 3/2-WAY VALVE BOSCH
77
VALVE EXHAUST BRAKE 3/2-WAY VALVE WABCO
80
CUP 3/2-WAY VALVE WABCO
83
REPAIR KIT 3/2-WAY VALVE BOSCH
83
REPAIR KIT 3/2-WAY VALVE WABCO
86
NUT SUCTION LINE TO OIL PUMP
89
SPRING WASHER AT CAB FLOOR
92
PIPE SOCKET 3/2-WAY VALVE,CONNECTION: "30"
95
FITTING 3/2-WAY VALVE,CONNECTION: "20",5 7668945 800000-5 806949
98
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
101
SCREW. UNION SCREW LINE CONNECTION
101
SCREW. UNION SCREW , Replaced By: A0009973734
999
INSULATING HOSE LINE MOUNTING, ORDER BY THE METER
999
BRACKET DISTRIBUTOR TO CAB
