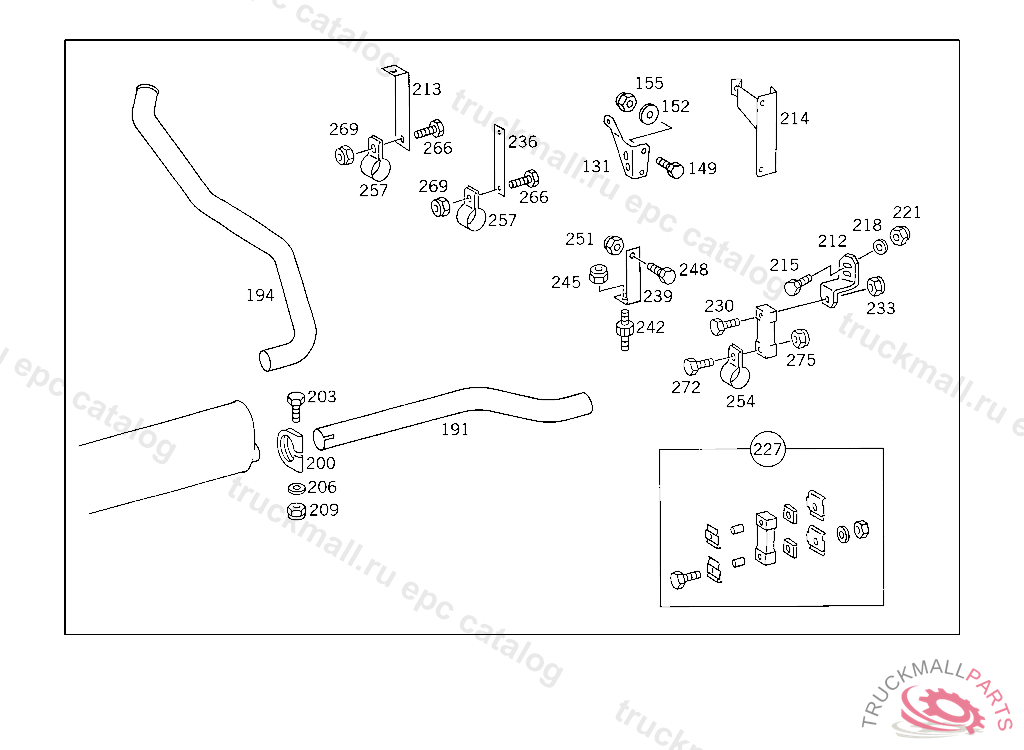

Поз.
Артикул
Описание
131
BRACKET EXHAUST MUFFLER
149
SCREW REAR EXHAUST PIPE TO MUFFLER
149
SCREW BRACKET TO SIDE MEMBER
149
SCREW SUPPORT TO CROSS MEMBER M 10X28
149
SCREW , Replaced By: N304017010002
152
WASHER , Replaced By: N007349010007
152
WASHER STRUT TO CROSS MEMBER
155
NUT STRAP TO BRACKET
155
NUT , Replaced By: N910113010000
194
REAR EXHAUST PIPE (TAIL PIPE),5 398761
194
REAR EXHAUST PIPE (TAIL PIPE),5 398760
200
CLAMP REAR EXHAUST PIPE TO MUFFLER
203
SCREW 3/2-WAY VALVE TO BRACKET
203
SCREW 3/2-WAY VALVE TO BRACKET M 8X105
203
SCREW , Replaced By: N304014008009
206
WASHER , Replaced By: N000125008443
206
WASHER EXHAUST MUFFLER TO STRAP
209
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
209
NUT , Replaced By: N913004008001
212
BRACKET EXHAUST PIPE SUSPENSION,5 743553-5 8000005 803730
213
BRACKET TAIL PIPE TO BRACKET
213
BRACKET HAND PUMP
214
BRACKET REAR EXHAUST PIPE
215
SCREW PIPE CLAMP
215
SCREW REAR EXHAUST PIPE TO MUFFLER
215
SCREW BRACKET TO SIDE MEMBER
215
SCREW , Replaced By: N304017010002
215
SCREW , Replaced By: N304017008021
218
WASHER , Replaced By: N006902011102
218
WASHER , Replaced By: N006902011100
218
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
218
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
221
NUT , Replaced By: N913004008001
221
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
227
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
230
SCREWM 8X40
233
NUT , Replaced By: N913004008001
233
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
236
BRACKET EXHAUST PIPE SUSPENSION,5 743553-5 8000005 803730
239
BRACKET , Replaced By: A3524920441
239
BRACKET PROTECTIVE PLATE
242
RUBBER BUFFER BRACKET TO SUPPORT
251
NUT STRAP TO BRACKET
257
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
266
SCREW BRACKET TO SIDE MEMBER
266
SCREW , Replaced By: N304017010002
269
NUT , Replaced By: N910113010000
269
NUT STRAP TO BRACKET
272
SCREW BRACKET TO SIDE MEMBER
275
NUT , Replaced By: N910113010000
275
NUT STRAP TO BRACKET
999
WASHER , Replaced By: N006902011102
999
EXHAUST PIPE FRONT,REAR PART
999
BRACKET REAR EXHAUST PIPE
999
EXHAUST PIPE FRONT,FRONT PART
999
BRACKET AT SIDE MEMBER,5 478324
999
BRACKET , Replaced By: A3524920141
999
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
999
WASHER , Replaced By: N006902011100
999
BRACKET , Replaced By: A3834927941
999
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET , Replaced By: A3834927941
999
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
