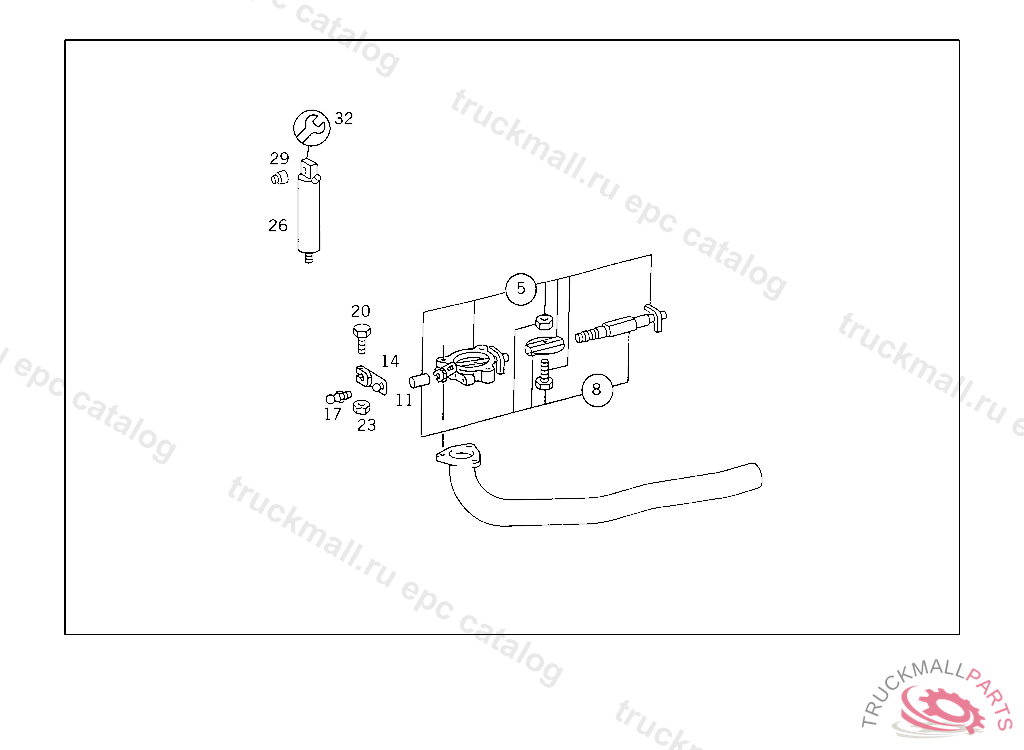

Поз.
Артикул
Описание
5
THROTTLE HOUSING PARTS KIT,K 181318N 817421 - N 825202
8
VALVE PARTS KIT,K 181318N 817421 - N 825202
11
BUSHING
14
LEVER EXHAUST-BRAKE THROTTLE VALVE
14
LEVER , Replaced By: A3661400232, +001N913017006000, +001N914126006025
17
BALL PIVOT BOTTOM B13X5 MM
20
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
20
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
20
SCREW , Replaced By: N000000001479
20
SCREW , Replaced By: N910105006005
23
NUT , Replaced By: N913023006001
23
NUT , Replaced By: N910112006001
23
NUT BALL PIVOT TO LEVER
23
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
26
CYLINDER INCREASE IN NUMBER OF REVOLUTIONS KNORR
26
CYLINDER INTERMEDIATE SPEED STOP
26
CYLINDER (POWER CYLINDER),EXHAUST BRAKE, Replaced By: A0004307926
26
CYLINDER , Replaced By: A0004305926
26
WORKING CYLINDER (POWER CYLINDER),EXHAUST BRAKE
29
BUSHING"WABCO"
32
REPAIR KITTO 000 430 48 26,KNORR
999
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
VALVE PARTS KIT,K 181319
999
THROTTLE HOUSING , Replaced By: A3661405353
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 077169/N 817421 - 825202, Replaced By: A3661440440
999
BRACKET POWER CYLINDER, TO BE ADAPTED DURING ASSEMBLY
999
BALL SOCKET SHIFTING CYLINDER TO SHIFT LEVER
999
BALL SOCKET
999
NUT , Replaced By: N304035008001
999
SCREW , Replaced By: A0099900101
999
NUT
999
SECURING CLIP. CIRCLIP
999
NUT
999
NUT POWER CYLINDER TO BRACKET
999
SCREW BRACKET TO THROTTLE HOUSING M 8X20
