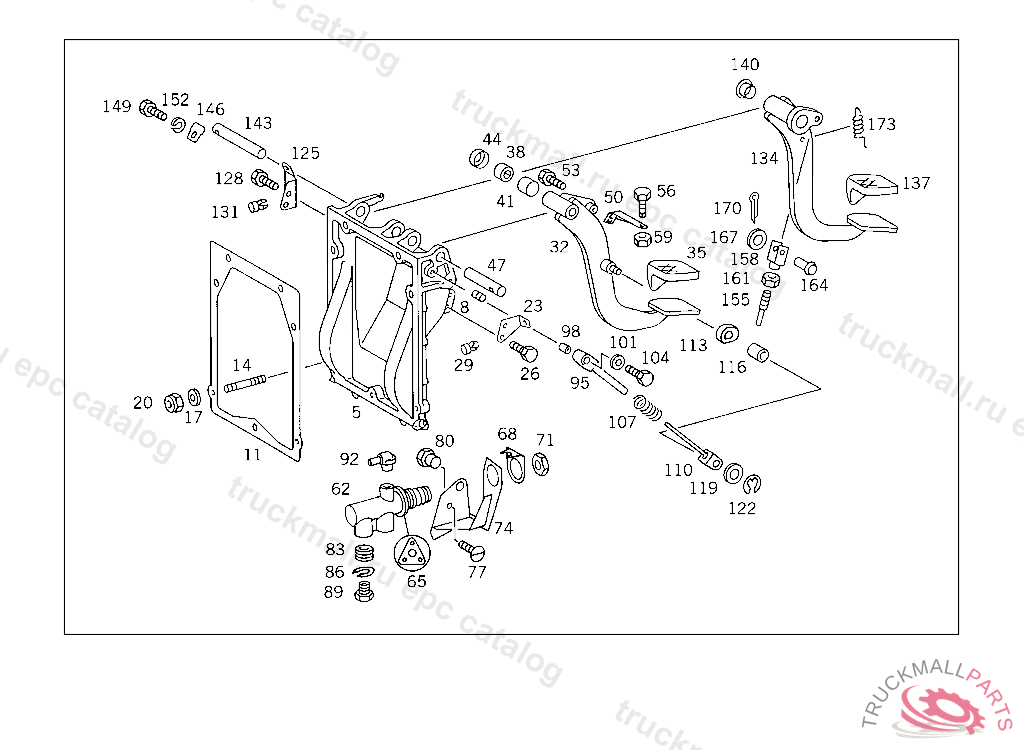

Поз.
Артикул
Описание
5
BEARING BRACKET (PEDAL BEARING BRACKET)
5
BEARING BRACKET (PEDAL BEARING BRACKET)
8
THREADED INSERT
11
GASKET BEARING BRACKET TO CAB
14
STUD
17
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
20
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
NUT , Replaced By: N913004008001
23
STOP CLUTCH PEDAL,5 219889
26
SCREW , Replaced By: N304017006018
26
SCREW COVER PLATE TO COVER PLATE M 6 X 12
29
STOP CLUTCH PEDAL AND BRAKE PEDAL
32
PEDAL CLUTCH
32
PEDAL CLUTCH
35
PAD BRAKE
38
NEEDLE BEARING CLUTCH PEDAL
38
NEEDLE BEARING CLUTCH PEDAL
41
SPACER TUBE CLUTCH PEDAL
44
WASHER CLUTCH PEDAL TO BEARING BRACKET
47
PIN CLUTCH PEDAL TO BEARING BRACKET
50
LEVER 3/2-WAY VALVE OPERATION
53
SCREW , Replaced By: N304017006016
53
SCREW PUMP TO BRACKET
56
SCREW CLUTCH PEDAL
59
NUT
59
NUT , Replaced By: N304035008001
62
VALVE 3/2-WAY VALVE
65
GASKET KIT 3/2-WAY VALVE
68
LOCK 3/2-WAY VALVE TO BRACKET, DISCONTINUED,PART IS NO LONGER REQUIRED
71
NUT SUCTION LINE TO OIL PUMP
74
BRACKET 3/2-WAY
77
SCREW BRACKET TO TAIL LAMP BRACKET
80
NUT BRACKET TO PEDAL BEARING BRACKET
83
LOCK RING LINE CONNECTION
83
SEAL RING , Replaced By: A0009940747
86
LOCK , Replaced By: A0009945448
86
LOCK LINE CONNECTION
89
SCREW. UNION SCREW LINE CONNECTION
89
SCREW. UNION SCREW , Replaced By: A0009973734
92
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
92
BREATHER , Replaced By: A3933280065
95
GUIDE CLUTCH PEDAL RESET
98
BUSHING ROD TO BEARING BRACKET
101
WASHER ROD TO BEARING BRACKET
104
SCREW DISTRIBUTOR,3/2-WAY VALVE,SHIFT CYLINDER
107
SPRING CLUTCH PEDAL RESET
110
ROD ROD TO BEARING BRACKET
113
STOP CLUTCH PEDAL RESET,5 219889
113
STOP , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6732910186
116
BUSHING ROD TO BEARING BRACKET
119
WASHER , Replaced By: N000125010532
119
WASHER RADIATOR TO RUBBER MOUNTING
122
LOCK PLATE RELEASE LEVER TO SHAFT
125
STOP BRAKE PEDAL
128
SCREW COVER PLATE TO COVER PLATE M 6 X 12
128
SCREW , Replaced By: N304017006018
131
STOP BRAKE PEDAL
134
PEDAL BRAKE
134
PEDAL BRAKE
137
PAD BRAKE
140
BUSHING , Replaced By: A1242920050
140
BUSHING BRAKE PEDAL
143
PIN BRAKE PEDAL TO BEARING BRACKET
146
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
149
SCREW , Replaced By: N304017006016
149
SCREW PUMP TO BRACKET
152
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
155
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
158
YOKE OPERATING ROD,K 202311
161
NUT , Replaced By: N304035008001
161
NUT
164
PIN ROD TO BRAKE PEDAL
167
WASHER BRACKET TO CROSS MEMBER
170
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
170
COTTER PIN LEVER TO ROD
173
SPRING BRAKE PEDAL RELEASE SPRING
999
REPAIR KIT DEAD CENTER SPRING
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
