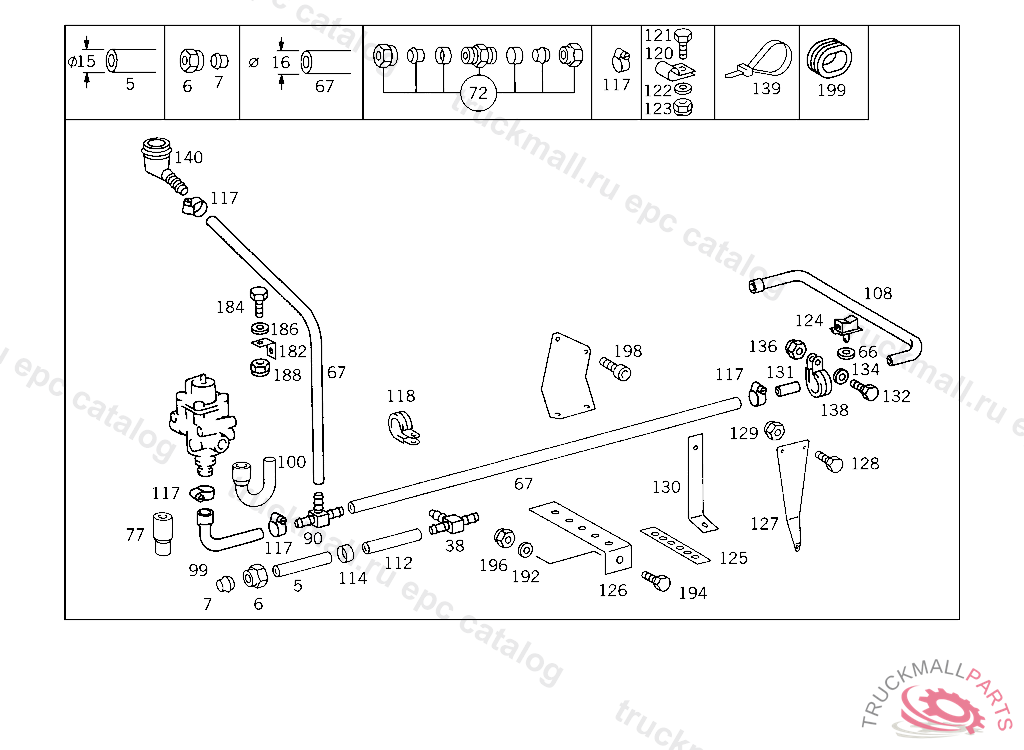

Поз.
Артикул
Описание
5
LINE FROM PRESSURE REGULATOR TO SLIDE, LENGTH AVAILABLE 3000 MM
6
UNION NUT LINE CONNECTION
7
GLAND LINE CONNECTION
38
T-FITTING BETWEEN THE LINES
66
WASHER BRACKET TO LEFT SIDE MEMBER
66
WASHER BRACKET TO LEFT SIDE MEMBER
66
WASHER , Replaced By: A3609902340
66
WASHER , Replaced By: N009021008213
67
HOSE , Replaced By: A0009872927
67
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
72
FITTING (PARTS KIT),LINE RUPTURE
77
MUFFLER PRESSURE REGULATOR BREATHING
77
BREATHER PIPE PRESSURE REGULATOR
90
T-FITTING BETWEEN THE LINES
99
BREATHER PIPE COMPRESSED AIR LINE TO EXHAUST MUFFLER
100
HOSE DE-AERATION PIPE TO EXPANSION TANK
108
HOSE PIPE LINE TO CONNECTION FITTING AND TO PRESSURE REGULATOR
108
BREATHER PIPE PIPE LINE TO CONNECTION FITTING AND TO PRESSURE REGULATOR,5 7098915 800307
112
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
114
SLEEVE
117
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
117
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
117
HOSE CLAMP LINE MOUNTING
117
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
117
CLAMP25-40X13 MM
117
CLAMP HOSE TO FITTING AND TO OIL TANK
117
CLAMP , Replaced By: N000000000667
117
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
117
CLAMP , Replaced By: N000000000665
117
CLAMP , Replaced By: A0059970190
117
CLAMP , Replaced By: N000000000667
118
CLAMP LINE MOUNTING
120
CLAMP FEED LINE TO THERMOSTAT
120
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
120
CLAMP , Replaced By: A6739950001
120
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
121
SCREW , Replaced By: N304017006018
121
SCREW COVER PLATE TO COVER PLATE M 6 X 12
121
SCREW COVER PLATE TO BRACKET
122
WASHER COMPRESSED AIR LINE TO BRACKET
122
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
123
NUT , Replaced By: N913004006001
123
NUT PUMP TO BRACKET
124
BRACKET LINE MOUNTING
125
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
126
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
127
BRACKET LINE MOUNTING,5 936366812731
127
BRACKET LINE MOUNTING,5 936365812730
128
SCREW , Replaced By: N304017006016
128
SCREW PUMP TO BRACKET
129
NUT PUMP TO BRACKET
129
NUT , Replaced By: N913004006001
130
BRACKET , Replaced By: A6674290640
130
BRACKET LINE MOUNTING,5 7245845 801938
131
SPACER TUBE HOSE TO FITTING,5 7098915 800307
131
SPACER TUBE HOSE TO FITTING,5 709892-5 7245835 800308-5 801937
131
SPACER TUBE , Replaced By: A1149910140
132
SCREW , Replaced By: N304014008021
132
SCREW VALVE TO BRACKET, Replaced By: N304014008002
132
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
132
SCREW VALVE TO BRACKET
132
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
134
WASHER RADIATOR TO RUBBER MOUNTING
134
WASHER EXHAUST MUFFLER TO STRAP
134
WASHER , Replaced By: N000125008443
134
WASHER , Replaced By: N000125010532
136
NUT , Replaced By: N913004008001
136
NUT , Replaced By: N910113010000
136
NUT STRAP TO BRACKET
136
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
138
CLAMP OIL DIPSTICK TO RADIATOR
139
LOOM TIE LINE MOUNTING 280 MM
139
LOOM TIE LINE MOUNTING
140
CONNECTOR 90 DEG. OFFSET
140
CONNECTOR BLEEDING
140
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
140
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
140
CONNECTOR 75 DEGREES
140
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
140
CONNECTOR BLEEDING
182
ANGLE LINE MOUNTING
184
SCREW BRACKET TO HEAT SHIELD M 6X15
184
SCREW PUMP TO BRACKET
184
SCREW , Replaced By: N304017006016
186
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
186
WASHER COMPRESSED AIR LINE TO BRACKET
188
NUT PUMP TO BRACKET
188
NUT , Replaced By: N913004006001
192
WASHER BRACKET TO FRAME
194
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
194
SCREW , Replaced By: N308676012012
196
NUT SUPPORT TO SIDE MEMBER
198
SCREW , Replaced By: A1199900401
198
SCREW BRACKET TO FRAME SIDE MEMBER M 8X85,5 7098915 800307
199
GROMMET FOR PASSAGE OF LINE
999
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
999
AIR CLEANER COMPLETE TO BOSCH,KNORR
999
REPAIR KIT AIR DEHYDRATOR WABCO
999
REPAIR KIT PRESSURE REGULATOR KNORR,K 126821
999
MUFFLER , Replaced By: A0004302970
999
MUFFLER AIR DEHYDRATOR,CONNECTION: "30"
999
HEATERKNORR
999
HEATERWABCO
999
GASKET KITWABCO
999
AIR DEHYDRATOR WITH PRESSURE REGULATOR KNORR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
AIR DEHYDRATOR WITH PRESSURE REGULATOR KNORR
999
AIR DEHYDRATOR WITH PRESSURE REGULATOR KNORR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
AIR DEHYDRATOR WITH PRESSURE REGULATOR KNORR,K 126821
999
AIR DEHYDRATOR WITH PRESSURE REGULATOR WABCO
999
AIR DEHYDRATOR WITH PRESSURE REGULATOR WABCO
999
AIR DEHYDRATOR WITH PRESSURE REGULATOR WABCO
999
AIR DEHYDRATOR WITH PRESSURE REGULATOR WABCO
999
GASKET KITKNORR
999
SEAL RINGWABCO
999
BRACKET AT SIDE MEMBER
999
BRACKET BRACKET TO CONSOLE
999
WASHER , Replaced By: N000125008443
999
SCREW VALVE TO BRACKET, Replaced By: N304014008002
999
NUT , Replaced By: N913004008001
