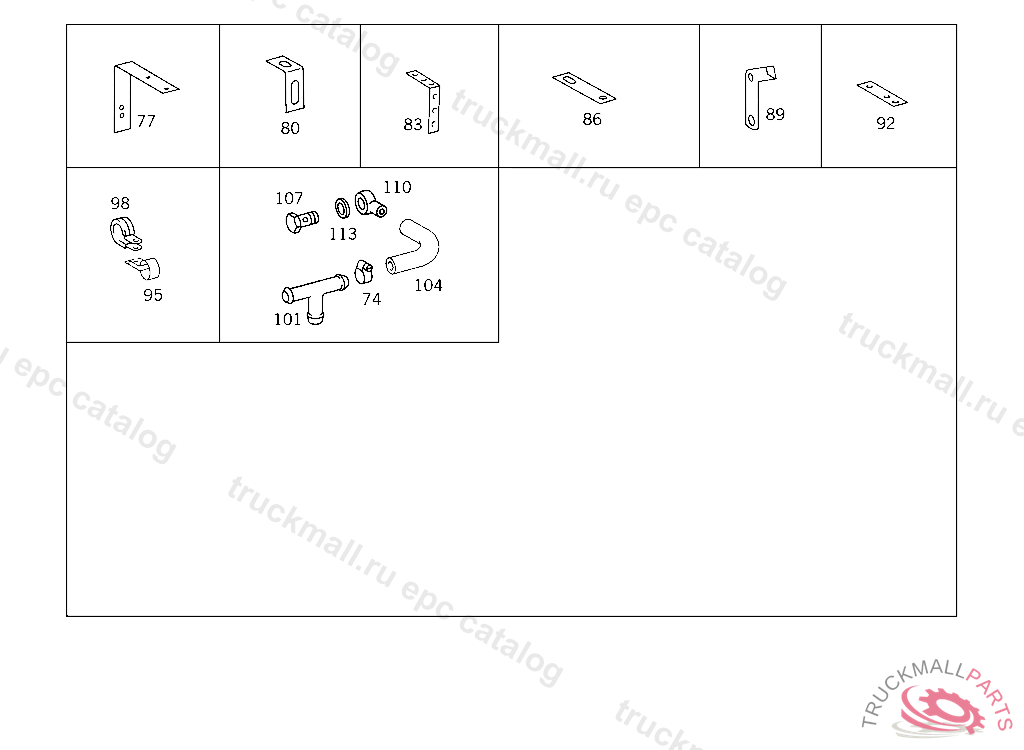

Поз.
Артикул
Описание
74
CLAMP
74
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
74
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
74
CLAMP HOSE TO FITTING AND TO OIL TANK
74
CLAMP , Replaced By: N000000000671
77
BRACKET FEED AND RETURN LINES TO RETARDER 110 MM LANG, TO BE ADAPTED DURING ASSEMBLY
80
BRACKET FUEL LINES TO TRANSMISSION
83
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
83
BRACKET CABLE HARNESS MOUNTING
86
BRACKET AT CROSS MEMBER
89
BRACKET LINE MOUNTING
92
BRACKET COOLING WATER LINE
95
CLAMP OIL FILLER NECK TO BRACKET, 10/20 UP TO IDENT NO. 4 348998, 50/60 UP TO IDENT NO. 4 331113
95
CLAMP LINE MOUNTING
95
CLAMP , Replaced By: A9424310043
95
CLAMP , Replaced By: N000000001641
98
CLAMP LINE MOUNTING
98
CLAMP STAY TO BRACKET
101
LINE DE-AERATION
104
HOSE DE-AERATION LINE, ORDER BY THE METER
104
HOSE DE-AERATION LINE, ORDER BY THE METER, Replaced By: A9575011982
107
HOLLOW SCREW HEATING CONNECTION
110
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
113
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
999
HOSE RETURN FLOW ON ADDITIONAL COOLER
999
HOSE RETURN FLOW ON ADDITIONAL COOLER
999
HOSE RETURN FLOW ON ADDITIONAL COOLER
999
COVER THERMOSTAT HOUSING
999
OUTLET RETURN FLOW ON ADDITIONAL COOLER
999
LINE RETURN FLOW ON ADDITIONAL COOLER
