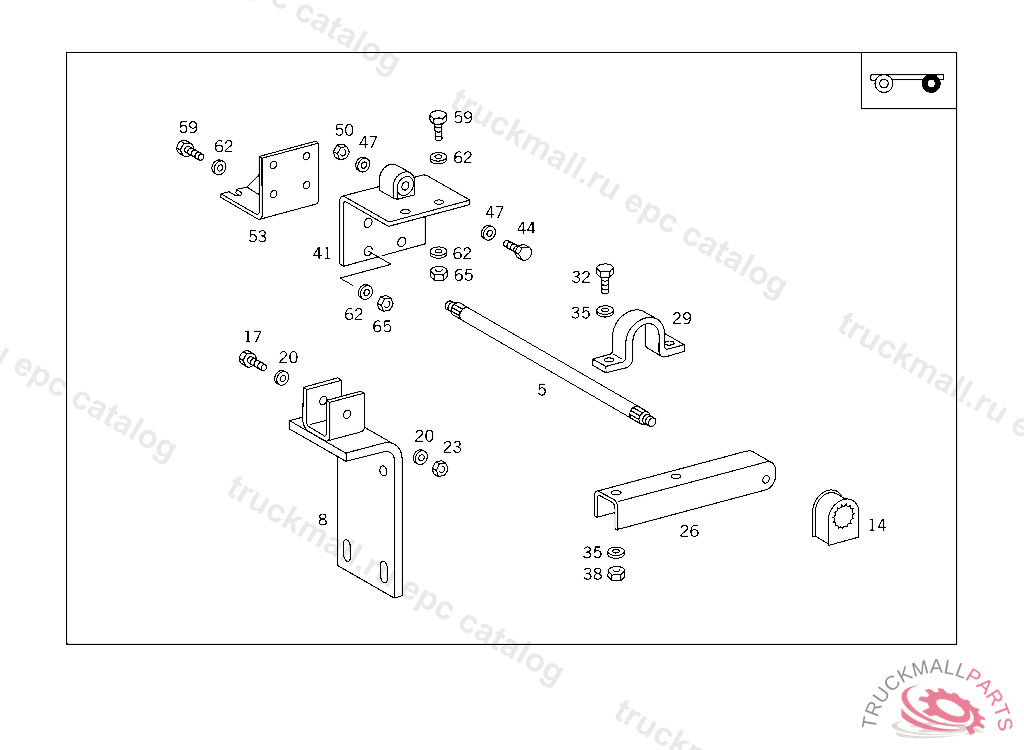

OMC 1421 - 685.452 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
5
TORSION BAR
8
BRACKET STABILIZER
14
INSULATION STABILIZER
17
PART NAME MISSING SCREW 1/2-13
20
PART NAME MISSING WASHER
23
PART NAME MISSING NUT 1/2-13
26
BEARING BRACKET STABILIZER
29
BRACKET
32
PART NAME MISSING SCREW
35
PART NAME MISSING WASHER
38
PART NAME MISSING NUT 1/2-13
41
BRACKET
44
PART NAME MISSING SCREW 1/2-13
47
PART NAME MISSING WASHER
50
PART NAME MISSING NUT 1/2-13
53
BRACKET
59
PART NAME MISSING SCREW
62
PART NAME MISSING WASHER
65
PART NAME MISSING NUT 1/2-13
999
PLATE STABILIZER
999
BUFFER
