Поз.
Артикул
Описание
5

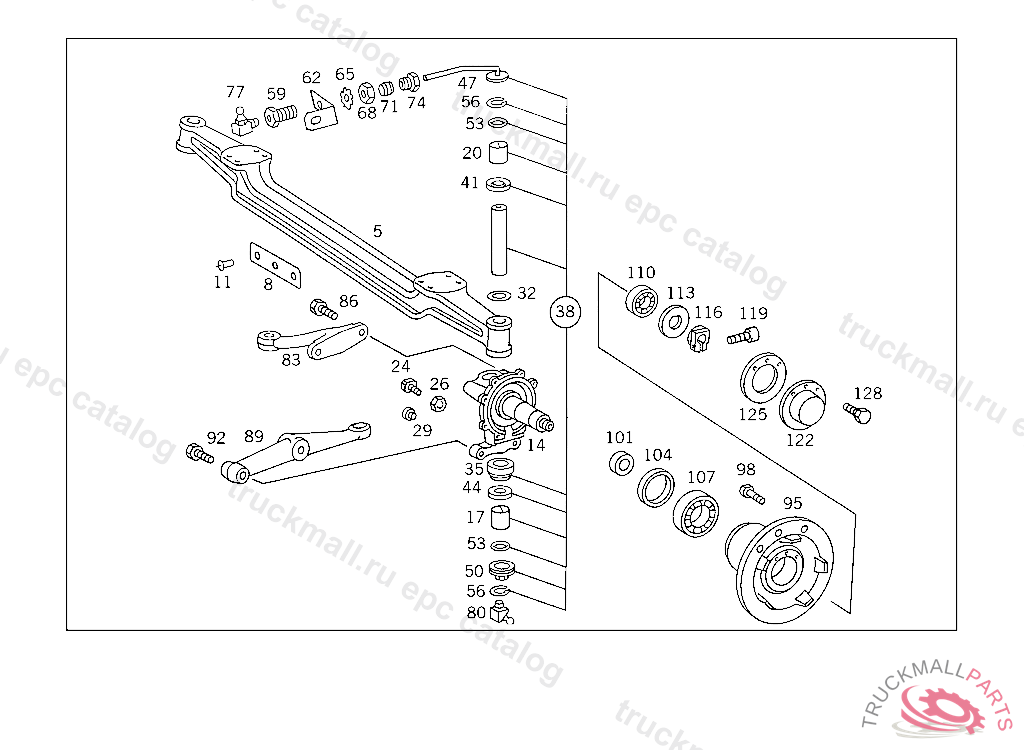

FRONT AXLE BEAM
8
UNIT IDENTIFICATION PLATE
11
RIVET TYPE PLATE TO AXLE HOUSING
14
STEERING KNUCKLE , Replaced By: A6553320201
14
STEERING KNUCKLE , Replaced By: A6553320501
14
STEERING KNUCKLE , Replaced By: A6553320201
14
STEERING KNUCKLE WITH FLANGE
17
BUSHING STEERING KNUCKLE,BOTTOM
20
BUSHING STEERING KNUCKLE,TOP
24
SCREW ADJUSTER STOP
26
NUT , Replaced By: N308673016001
26
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
29
PLUG
32
SPACER WASHER AS REQUIRED 2.50 MM
32
SPACER WASHER AS REQUIRED 1.80 MM
32
SPACER WASHER STEERING KNUCKLE PIN,IF REQUIRED 2.20 MM
32
SPACER WASHER AS REQUIRED 2.40 MM
32
SPACER WASHER AS REQUIRED 1.90 MM
32
SPACER WASHER , Replaced By: A6553320152
32
SPACER WASHER , Replaced By: A6553320252
32
SPACER WASHER , Replaced By: A6553320352
32
SPACER WASHER , Replaced By: A6553320452
32
SPACER WASHER , Replaced By: A6553320552
32
SPACER WASHER , Replaced By: A6553320652
32
SPACER WASHER , Replaced By: A6553320752
32
SPACER WASHER , Replaced By: A6553320852
32
SPACER WASHER , Replaced By: A6553320052
32
SPACER WASHER STEERING KNUCKLE PIN,IF REQUIRED 2.30 MM
32
SPACER WASHER STEERING KNUCKLE PIN,IF REQUIRED 2.10 MM
32
SPACER WASHER STEERING KNUCKLE PIN,IF REQUIRED 2.00 MM
32
SPACER WASHER AS REQUIRED 1.70 MM
35
ROLLER BEARING STEERING KNUCKLE TO FRONT AXLE BEAM 50.60 MM
35
ROLLER BEARING STEERING KNUCKLE TO FRONT AXLE BEAM 50.30 MM
35
CYLINDR. ROLLER BEARING STEERING KNUCKLE TO FRONT AXLE BEAM 50.00 MM
35
ROLLER BEARING STEERING KNUCKLE TO FRONT AXLE BEAM 50.00 MM
35
ROLLER BEARING STEERING KNUCKLE TO FRONT AXLE BEAM 50.60 MM
35
ROLLER BEARING STEERING KNUCKLE TO FRONT AXLE BEAM 50.30 MM
38
KING PIN STANDARD 50.0 MM
38
KING PIN REPAIR SIZE I 50.6 MM
38
KING PIN STANDARD SIZE I 50.3 MM
41
SEAL RING STEERING KNUCKLE,TOP
41
SEAL RING STEERING KNUCKLE,TOP
41
SEAL RING STEERING KNUCKLE,TOP
44
SEAL RING STEERING KNUCKLE,BOTTOM
44
SEAL RING STEERING KNUCKLE,BOTTOM
44
SEAL RING STEERING KNUCKLE,BOTTOM
47
COVER LUBRICATING OIL LINE
50
EXPANSION PLUG STEERING KNUCKLE,BOTTOM
53
SEAL RING END COVER TO STEERING KNUCKLE
56
LOCK RING
59
FITTING LUBRICATING OIL LINE
59
BULKHEAD FITTING RELEASE BEARING LUBRICATION
62
BRACKET LUBRICATING OIL LINE
62
BRACKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3053320140, +001A3053320240
65
TOOTHED WASHER LINE CONNECTION TO FIRE WALL,684146
68
NUT , Replaced By: N308675014000
68
NUT , Replaced By: N308675014002
68
NUT RELEASE BEARING LUBRICATION
71
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
74
UNION SCREW RELEASE COLLAR LUBRICATION
77
GREASE NIPPLE
77
GREASE NIPPLE
80
GREASE NIPPLE FOR SPRING
83
STEERING ARM LEFT
86
SCREW ENGINE SUPPORT TO BELL HOUSING M 22X75
89
STEERING ARM RIGHT
89
STEERING ARM LEFT
92
SCREW STEERING ARM TO STEERING KNUCKLE
95
WHEEL HUB CASTING
95
WHEEL HUB STEEL
95
WHEEL HUB , Replaced By: A6243340101
95
WHEEL HUB
98
WHEEL MOUNTING BOLT STEEL DISC WHEEL M 22X1,5X89
98
WHEEL MOUNTING BOLT DISC WHEEL TO FRONT DRUM HUB
101
RING
104
SEAL RING FRONT WHEEL HUB,INSIDE
104
SEAL RING FRONT WHEEL HUB,INSIDE
107
TAPERED ROLLER BEARING FRONT WHEEL HUB,INSIDE TO A 6243340301
107
TAPERED ROLLER BEARING FRONT WHEEL HUB,INSIDE TO A 6243340301
107
TAPERED ROLLER BEARING FRONT WHEEL HUB,INSIDE TO A 6243340301
107
TAPERED ROLLER BEARING FRONT WHEEL HUB,INSIDE TO A 6243340301
110
TAPERED ROLLER BEARING COUNTERSHAFT,REAR
110
TAPERED ROLLER BEARING COUNTERSHAFT,REAR
110
TAPERED ROLLER BEARING COUNTERSHAFT,REAR
110
TAPERED ROLLER BEARING COUNTERSHAFT,REAR
113
THRUST WASHER FRONT WHEEL HUB TO STEERING KNUCKLE
116
NUT FRONT WHEEL HUB TO STEERING KNUCKLE
116
NUT , Replaced By: A6523300088
119
SCREW , Replaced By: N000912010220
119
SCREW
122
HUB CAP FRONT WHEEL HUB
125
GASKET COVER TO WHEEL HUB
128
SCREW , Replaced By: A0079900801
128
SCREW REDUCTION VALVE TO BRACKET
