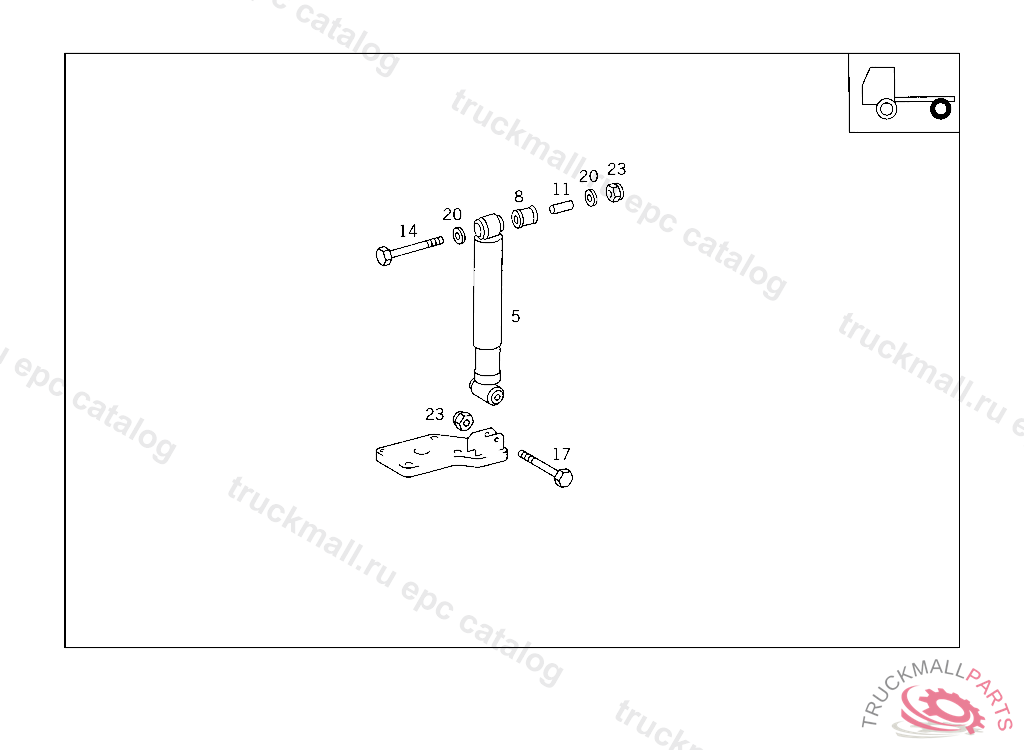

Поз.
Артикул
Описание
5
SHOCK ABSORBER REAR AXLE
5
SHOCK ABSORBER REAR AXLE
8
RUBBER MOUNTINGTO 003 326 46 00
8
RUBBER BUFFER , Replaced By: A0003233144
8
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
8
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
11
BUSHINGTO 003 326 48 00
11
SPACER RINGTO 002 323 86 00,003 323 03 00,
14
SCREW FRONT AXLE II SHOCK ABSORBER,BOTTOM
17
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
17
SCREW , Replaced By: N000960016250
20
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
20
WASHER TORSION BAR TO BEARING BRACKET
23
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
23
NUT COMBINATION CYLINDER TO BEARING BRACKET
