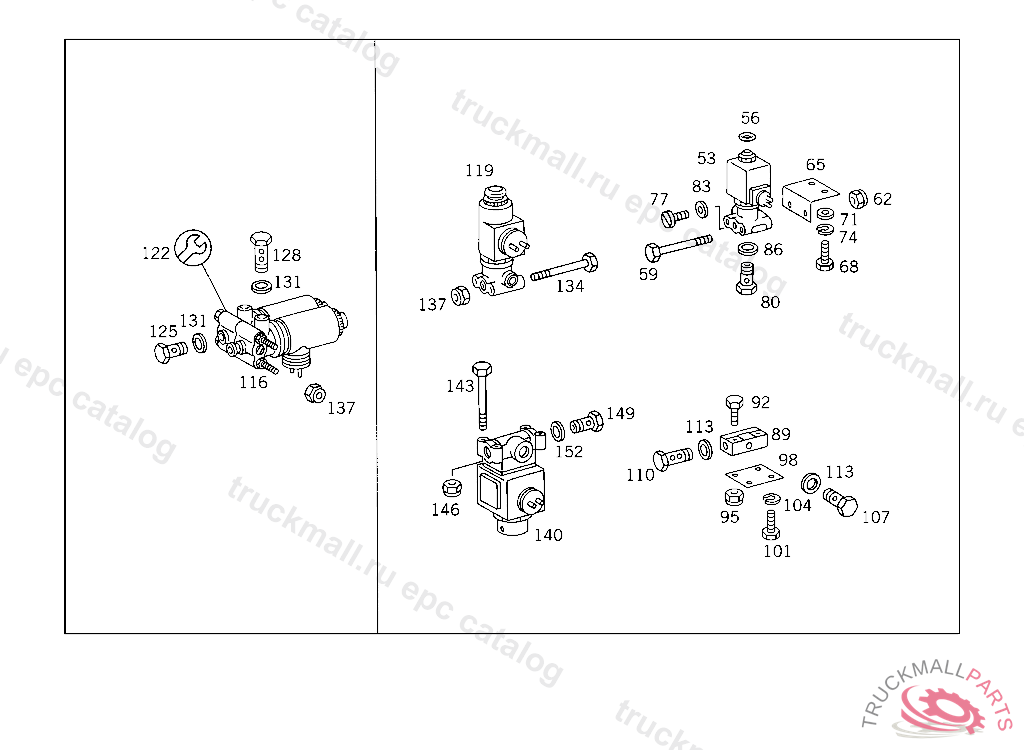

Поз.
Артикул
Описание
53
VALVE (3/2-WAY SOLENOID VALVE) EKS
53
VALVE , Replaced By: A0049975736
56
SEAL RINGWABCO
59
SCREW , Replaced By: N304017008043
59
SCREW VALVE TO BRACKET M 8X55
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
NUT , Replaced By: N913004008001
62
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
65
BRACKET 3/2-WAY SOLENOID VALVE
68
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
68
SCREW , Replaced By: N304017008016
71
WASHER , Replaced By: N000125008443
71
WASHER EXHAUST MUFFLER TO STRAP
74
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
77
SCREW TO PLUG THE FREE CONNECTIONS
80
HOLLOW SCREW HEATING CONNECTION
83
SEAL RINGBOSCH
86
SEAL RING LINE CONNECTION
89
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
92
SCREW TWO-WAY VALVE TO BRACKET
95
NUT TWO-WAY VALVE TO BRACKET
98
BRACKET LINE MOUNTING
101
SCREW END PIECE TO EXHAUST PIPE M 10X25
104
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
107
HOLLOW SCREW FUEL LINE TO FEED PUMP
107
HOLLOW SCREW , Replaced By: N915036010108
110
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
113
SEAL RING FUEL LINE TO FEED PUMP
119
VALVE (SOLENOID VALVE)
128
HOLLOW SCREW LINE CONNECTION
131
SEAL RING LINE CONNECTION
134
SCREW BRACKET TO EXHAUST PIPE,5 528482
137
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
137
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
137
NUT , Replaced By: N913004008001
140
VALVE (SOLENOID VALVE)
143
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
143
SCREW , Replaced By: N304017006012
146
NUT , Replaced By: N913004006001
146
NUT PUMP TO BRACKET
149
HOLLOW SCREW HEATING CONNECTION
152
SEAL RING LINE CONNECTION
