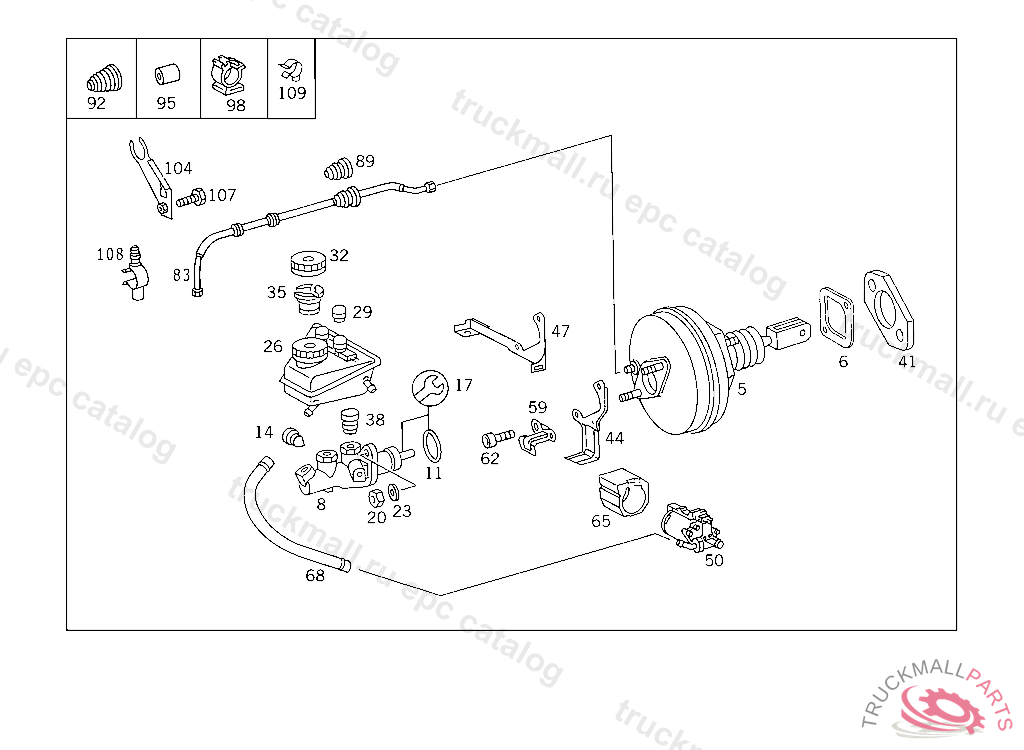

Поз.
Артикул
Описание
5
BRAKE BOOSTER ASSEMBLY , 003,105 F 163538 004,007,106 F 161234
6
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL TO 004 430 00 30/08 30
8
BRAKE MASTER CYLINDER
8
BRAKE MASTER CYLINDER
8
BRAKE MASTER CYLINDER
8
BRAKE MASTER CYLINDER ,C 164264
11
SEAL RING
11
SEAL RING
14
SCREW PLUG BRAKE MASTER CYLINDER
17
REPAIR KIT BRAKE MASTER CYLINDER
17
GASKET KIT. REPAIR KIT BRAKE MASTER CYLINDER, Replaced By: A0014304660
20
NUT
23
WASHER EXHAUST MUFFLER TO STRAP
26
RESERVOIR BRAKE MASTER CYLINDER
26
RESERVOIR , FOR USE WITHOUT ACCELERATION SKID CONTROL(A S R)
29
PROTECTIVE CAP , 000 113166 003 057448 007 046963 083 001049 086 000766 093 000621 102,103 092825 105 116297 183 001424 190 001362
29
PROTECTIVE CAPGIRLING
32
COVER
32
COVER , Replaced By: A2024300014
35
STRAINER
38
BUSHING
41
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL
44
BRACKET , ONLY FOR USE WITH ACCELERATION SKID CONTROL(A S R)
50
PUMP
59
BRACKET TOP
59
BRACKET TOP, ONLY FOR USE WITH ACCELERATION SKID CONTROL(A S R)
62
SCREW DOOR HANDLE TO DOOR
65
RUBBER BUFFER BRAKE MASTER CYLINDER
68
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
83
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY
83
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY
89
GROMMET
108
BRACKET LINE MOUNTING 11 MM
109
CLAMP
