Mercedes A1293271725 - КЛАПАН

SL 320 JAPAN 129.064 320-600 FROM 06/98

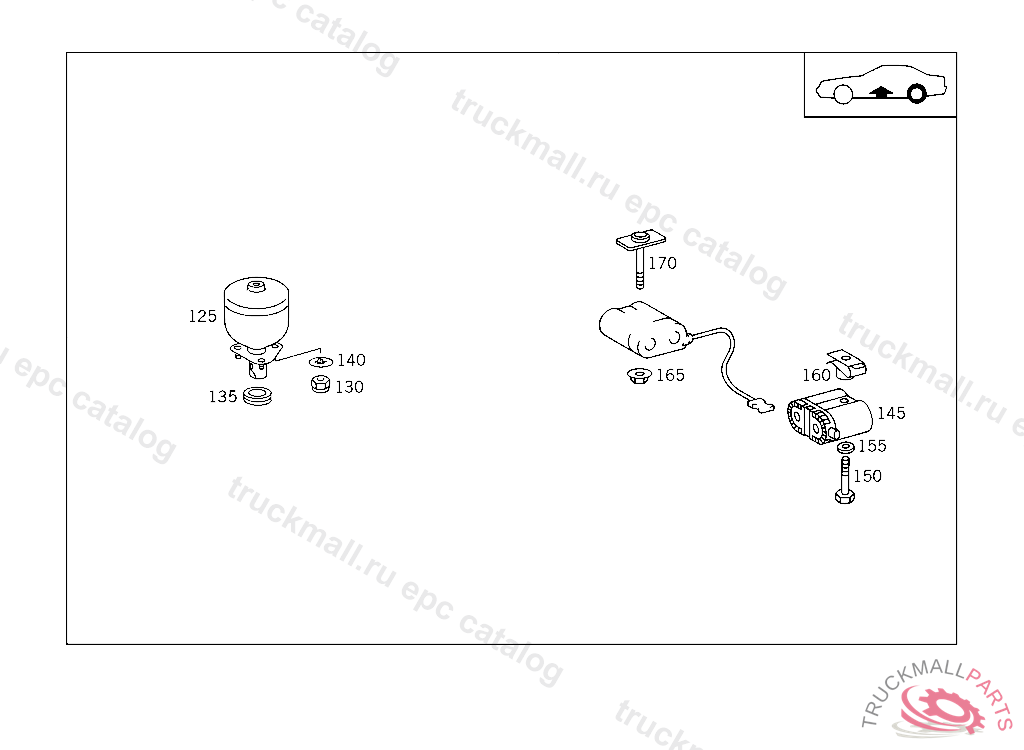

32 SPRINGS,SUSPENSION AND HYDRAULICS - 220 OIL TANK & VALVES OF HYDRAULIC SYSTEM IL. 2

Поз.
Артикул
Описание
125
A1403280515
AIR RESERVOIR (SPRING LOAD ACCUMULATOR)
125
A1403280215
AIR RESERVOIR , Replaced By: A1403280515
130
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
135
A1249970940
SEAL RING SPRING LOAD ACCUMULATOR TO FRAME
140
A2013280073
LOCK
145
A1293271725
VALVE (DAMPING VALVE),REAR LEFT, F 125158 ALSO INSTALLED ON WITH CODE 806
150
N304017008043
SCREW VALVE TO BRACKET M 8X55
150
N000931008327
SCREW , Replaced By: N304017008043
155
N000125008418
WASHER , Replaced By: N000125008443
155
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
160
A0019905891
NUT RETAINER MOUNTING FRAME TO SUPPORT,V 202043
165
N913023008003
NUT HORN TO BRACKET M8
170
A1293200035
PLATE
