Mercedes A1403010374 - Болт

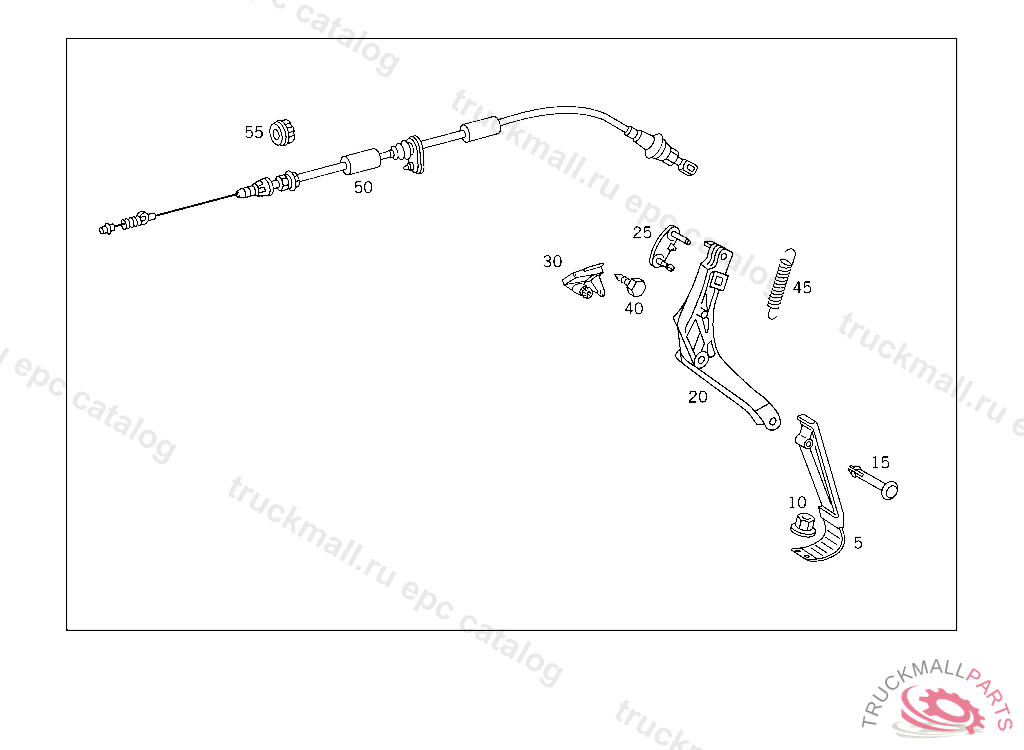

SL 320 JAPAN 129.064 320-600 FROM 06/98

30 CONTROL - 015 CONTROL IL. 1

Поз.
Артикул
Описание
5
A2203000204
ACCELERATOR PEDAL
10
A2103010072
NUT ACCELERATOR PEDAL TO FIRE WALL
15
A1403010374
PIN ACCELERATOR PEDAL TO LEVER
20
A1293011020
LEVER ACCELERATOR PEDAL
20
A1293010920
LEVER ACCELERATOR PEDAL
25
A1243001625
LEVER ,B 838715,J 003393 TO BE ADAPTED DURING ASSEMBLY
30
A1293010218
BEARING ACCELERATOR PEDAL BEARING,A 346276
30
A1293010118
BEARING
40
N007976006305
SHEET METAL SCREW FENDER TO BODY
45
A1299931010
SPRING ACCELERATOR PEDAL,PAG 1631/95N01 , B 50860 , B50861
45
A1299930910
SPRING ACCELERATOR PEDAL
50
A1293003230
WIRE CABLE
50
A1293003330
WIRE CABLE
50
A1293003130
WIRE CABLE
55
A2013010285
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
A1263010141
STOP FULL THROTTLE
