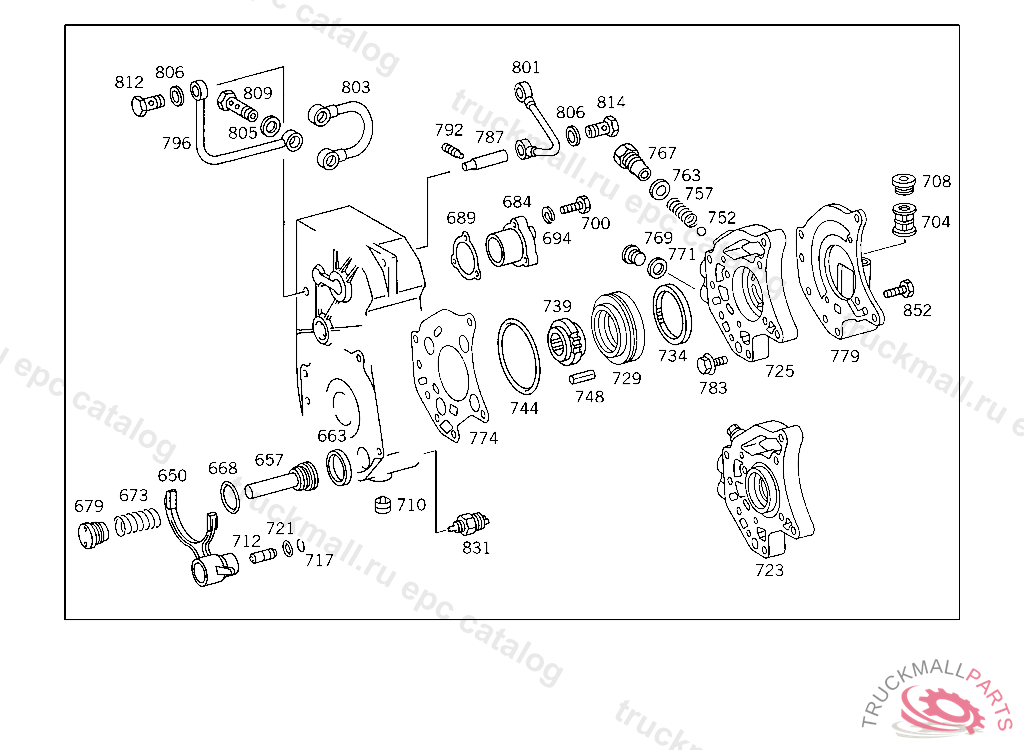

Поз.
Артикул
Описание
650
SHIFTING FORK P.T.O. CONTROL
657
PISTON SHIFTING FORK
657
PISTON , Replaced By: A9452640215
657
PISTON , Replaced By: A9452640515, +001A0002642060
663
RING , Replaced By: A0002642060, +001A9452640615
663
SEAL RING FRONT,021425
668
SEAL RING REAR,021425
668
SEAL RING REAR,021425
673
SPRING SHIFTING FORK
679
BUSHING PISTON
684
CYLINDER HOUSING,FRONT,021424
689
GASKET , Replaced By: A3852811180
689
GASKET CYLINDER TO P.T.O. HOUSING
694
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
700
SCREW BRACKET TO CROSS CONNECTION STRUT
700
SCREW , Replaced By: N304017008034
704
STRAINER (OIL FILTER)
708
SCREW PLUG CASE,LEFT
708
SCREW PLUG , Replaced By: A3899970132
710
SCREW PLUG HOUSING,BOTTOM,183596
710
SCREW PLUG HOUSING,BOTTOM,183596
712
PIN P.T.O. INDICATOR ACTUATION
717
SNAP RING P.T.O. INDICATOR ACTUATION
721
SEAL RING P.T.O. INDICATOR ACTUATION
723
OIL PUMP TRANSMISSION OIL COOLING SYSTEM
725
HOUSING OIL PUMP
725
HOUSING , FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSMISSION 113214, Replaced By: A3872690601, +001A6522604285, +001A6522604385
725
HOUSING ,117915, Replaced By: A3872690701, +001A3872617720
729
PUMP ELEMENT OIL PUMP
734
GEAR OIL PUMP
739
GEAR OIL PUMP
744
SEAL RING OIL PUMP
748
CLAMPING SLEEVE
752
BALL10 MM
757
SPRING PRESSURE RELIEF VALVE
757
SPRING ,021829, Replaced By: A1269931401, +001A3879970331
763
SEAL RING SOLENOID VALVE A 18X24
767
SCREW PLUG PRESSURE RELIEF VALVE
767
SCREW PLUG , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3879970331, +001A1269931401
769
SCREW PLUG HOUSING,BOTTOM, Replaced By: N000908018011
769
SCREW PLUG BELL HOUSING
769
SCREW PLUG, FILLING HOUSING,BOTTOM M18X1.5
771
SEAL RING ON OIL PUMP HOUSING
774
GASKET , Replaced By: A3872613880
774
GASKET , Replaced By: A3872614880
774
GASKET , Replaced By: A3872614980
774
GASKET COVER TO OIL PUMP
779
COVER OIL PUMP TO TRANSMISSION CASE
779
COVER CASE,REAR,183597
783
SCREW OIL PUMP TO TRANSMISSION CASE M 10X110
783
SCREW , Replaced By: N910107010030
783
SCREW OIL PUMP TO TRANSMISSION CASE M 10X55
787
OIL PIPE P.T.O. LUBRICATION
787
OIL PIPE DRIVE SHAFT TO P.T.O. HOUSING
792
HEADLESS SETSCREW OIL PIPE TO TRANSMISSION CASE
796
PIPE SPINDLE TO HOUSING, FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSMISSION 113214
801
PIPE SPINDLE TO HOUSING
801
PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSMISSION 058200, Replaced By: A3872607485
803
PIPE SPINDLE TO HOUSING, FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSMISSION 113214
805
SEAL RINGTO 000 553 03 05,000 553 18 05,
806
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
809
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
812
HOLLOW SCREW , Replaced By: N915036010108
812
HOLLOW SCREW FUEL LINE TO FEED PUMP
814
HOLLOW SCREW LINE MOUNTING,437171
814
HOLLOW SCREW HEATING CONNECTION
831
SWITCH , Replaced By: A0015455709
831
SWITCH
831
SWITCH
852
SCREWM 10X30
999
SEAL RING THRU HOLE
999
COVER
999
GASKET
999
SPACER RING BEARING TO DRIVE SHAFT
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
RETAINING RING. LOCK RING BEARING TO DRIVE SHAFT
999
SCREW PLUG , Replaced By: N000908014009
999
SCREW PLUGTO 000 553 03 05,000 553 18 05,
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING OIL RETURN
999
SCREW COVER TO P.T.O.
