Поз.
Артикул
Описание

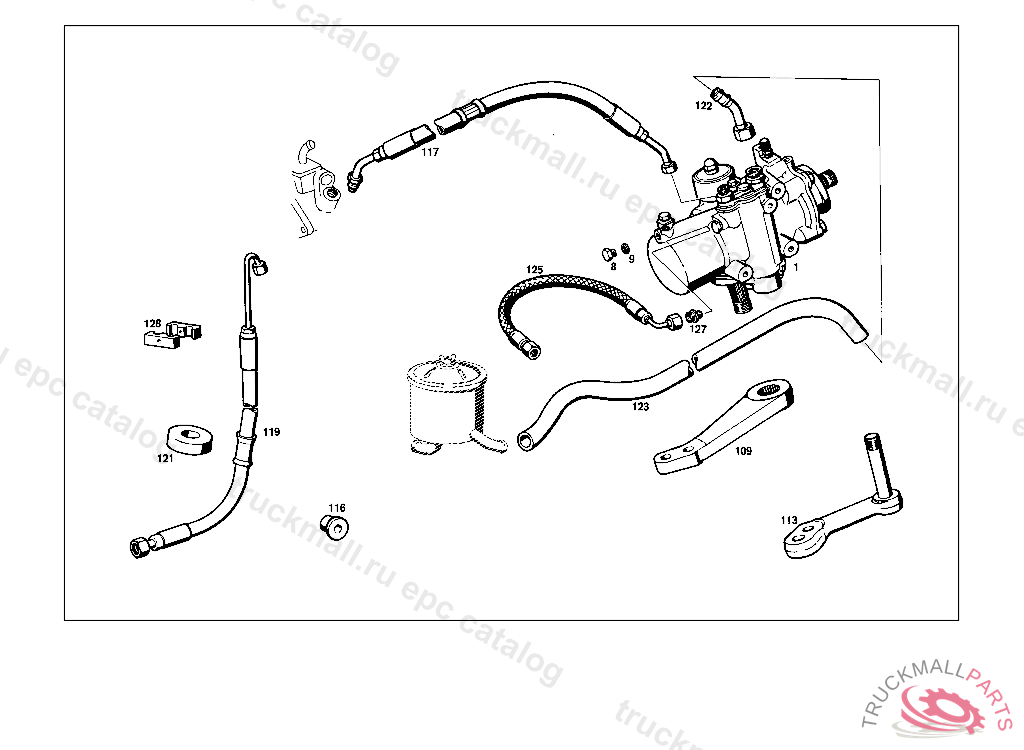

1
STEERING BOX ASSEMBLY , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
SCREW PLUG 4/2-WAY VALVE
9
SEAL RINGTO 001 431 72 14
109
PITMAN ARM , 10 FROM CHASSIS 023661 ALSO INSTALLED ON,SEE FOOTNOTE 38,012 FROM CHASSIS 049856 ALSO INSTALLED ON,SEE FOOTNOTE 39
113
STEERING INTERMEDIATE ARM
116
RUBBER MOUNTING
117
HOSE
119
HOSE
121
RUBBER RING
122
LINE
123
HOSE80 MM, ORDER BY THE METER
125
HOSE
127
SCREW FITTING LUBRICATING LINE
128
BRACKET
999
CLAMP , Replaced By: N000000000667
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT TACHOGRAPH TO BRACKET
999
SCREW
999
NUT , WITH L.H.D,ON MODELS 111.024,025 FROM STEERING 198396 WITH R.H.D,ON MODELS 111.024,025 FROM STEERING 199281
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
HOSE
999
COVER , Replaced By: A1124661905
999
COVER , Replaced By: A1124661905
999
THRUST WASHER 2,0 MM, TO BE ADAPTED DURING ASSEMBLY
999
COVER
999
THRUST WASHER 1,9 MM, AS REQUIRED
999
THRUST WASHER 1,8 MM, AS REQUIRED
999
THRUST WASHER 1,7 MM, AS REQUIRED
999
THRUST WASHER 1,6 MM, AS REQUIRED
999
THRUST WASHER 1,4 MM, AS REQUIRED
999
THRUST WASHER , Replaced By: A1124660962
999
THRUST WASHER 1,3 MM, AS REQUIRED
999
THRUST WASHER 1,2 MM, AS REQUIRED
999
THRUST WASHER 1,1 MM, AS REQUIRED
999
PITMAN ARM
999
PITMAN ARM
999
PITMAN ARM
999
PISTON WITH STEERING WORM AND STEEVE VALVE
999
STEERING BOX ASSEMBLY , Replaced By: A1094601001
999
STEERING BOX COVER
999
PISTON
999
STEERING BOX , Replaced By: A1094600802, +001A1094600211, +001A1094620171, +001A1094660072, +001A0039811810
999
STEERING BOX COVER , Replaced By: A1124602114
999
STEERING BOX , Replaced By: A1094600402, +001A1094600211, +001A1094620171, +001A1094660072, +001A0039811810
999
STEERING BOX COVER , Replaced By: A1124602014
999
STEERING BOX COVER , Replaced By: A1094600315
999
STEERING INTERMEDIATE ARM
999
STEERING BOX ASSEMBLY , Replaced By: A1094601101
999
STEERING BOX ASSEMBLY , Replaced By: A1094601001
999
STEERING BOX ASSEMBLY
999
STEERING BOX ASSEMBLY , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
LINE
999
LINE , Replaced By: A1144600324
999
STEERING SHAFT , 000,001,004,010,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTN.10,10/50,12/52,100,101,104,110,116 UP TO CHASSIS 358853 EXCEPT FOR SEE FOOTN.11,AND FOOTN.7
999
STEERING SHAFT , Replaced By: A1104605009
999
STEERING SHAFT , Replaced By: A1104605009
999
NUT , WITH L.H.D,ON MODELS 111.024,025 FROM STEERING 198396 WITH R.H.D,ON MODELS 111.024,025 FROM STEERING 199281
999
NUT , WITH L.H.D,ON MODELS 111.024,025 FROM STEERING 198396 WITH R.H.D,ON MODELS 111.024,025 FROM STEERING 199281
999
PITMAN ARM , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1124631501
999
STEERING BOX ASSEMBLY
999
STEERING BOX , Replaced By: A1094601101
999
STEERING BOX COVER
999
STEERG. WORM SECTOR SHAFT , WITH L.H.D,ON MODELS 111.024,025 FROM STEERING 198396 WITH R.H.D,ON MODELS 111.024,025 FROM STEERING 199281
999
CLAMP
999
HOSE , Replaced By: A1099970882
999
HOSE , Replaced By: A1099970882
999
NEEDLE BEARING , WITH L.H.D,ON MODELS 111.024,025 FROM STEERING 198396 WITH R.H.D,ON MODELS 111.024,025 FROM STEERING 199281
999
SEAL RING , Replaced By: A0059975946
999
SEAL RING , Replaced By: A0059975846
999
ANGULAR CONTACT BEARING , Replaced By: A0009814027
999
ANGULAR CONTACT BEARING , Replaced By: A0009813927
999
ROLLER BEARING
