Поз.
Артикул
Описание

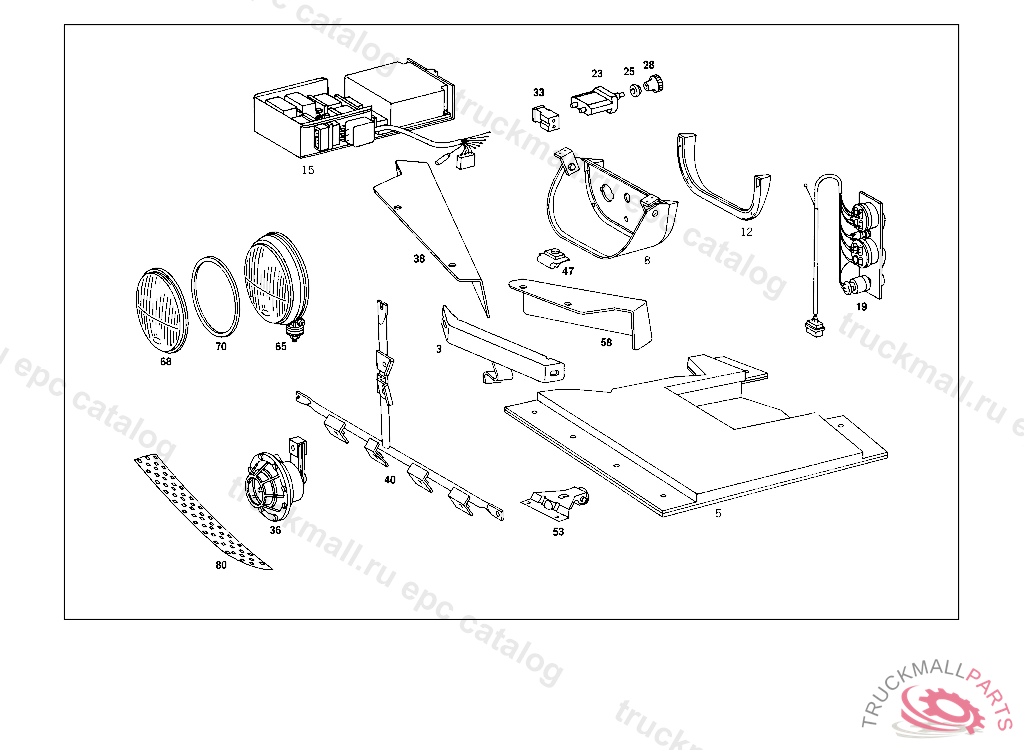

3
BRACKET LEFT
5
COVERING
8
CONSOLE
12
GARNISH MOULDING
15
BASIC UNIT
15
BASIC UNIT , Replaced By: A1158200597
19
BASIC UNIT , Replaced By: A1158200010
19
SWITCH
23
SWITCH
25
ESCUTCHEON
28
KNOB
33
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
33
PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
36
HORN
38
COVERING RIGHT
40
BRACKET
47
NUT RETAINER
47
NUT RETAINER , Replaced By: A0009909191
53
PLATE
58
COVERING
65
LIGHTING UNIT , ONLY REPLACEABLE BY PAIRS, Replaced By: A0008202761
65
LIGHTING UNIT HALOGEN FOGLAMP,CRYSTAL CLEAR HELLA, UP TO CHASSIS: 114.010 047997 114.015 054817 115.010 054893 115.015 057530 115.110 135996 115.115 063372
68
LENS , UP TO CHASSIS: 114.010 047997 114.015 054817 115.010 054893 115.015 057530 115.110 135996 115.115 063372
70
SEAL , UP TO CHASSIS: 114.010 047997 114.015 054817 115.010 054893 115.015 057530 115.110 135996 115.115 063372
80
GRILLE LEFT
999
SHEET METAL NUT CONDENSER TO FRONT STIFFENING
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER T-FITTING TO BRACKET
999
NUT
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
BULB FOGLIGHT YC-12V 55W
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
SCREW , Replaced By: N007985004107
999
SHEET METAL SCREW , Replaced By: N000000000453
999
SHEET METAL SCREW TACHOGRAPH
999
SHEET METAL SCREW , Replaced By: N007981002322
999
SHEET METAL SCREW TYPE PLATE,K 262628
999
SHEET METAL SCREW
999
SHEET METAL SCREW BRACKET TO WINDOW SILL
999
NUT , Replaced By: N304032008006
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW EXHAUST PIPE TO BRACKET
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017006018
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER BRACKET TO SUPPORT
999
WASHER , Replaced By: N000125004319
999
SCREW ,374026
999
SHEET METAL SCREW MODULE TO HOUSING
999
GRILLE RIGHT
999
BRACKET
999
BRACKET RIGHT
999
LOOM TIE
999
SPACER RING
999
GROMMET , Replaced By: A0089971781
999
BRACKET
999
BRACKET
999
GROMMET
999
HORN LOW NOTE
999
LOOM TIE TO MOUNT PLASTIC PIPING
999
LOOM TIE , Replaced By: A0019974390
999
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
999
LENS *** BOSCH
999
GROMMET BREATHER LINE
999
LOCK , Replaced By: A1409941045
999
LOCK. CLIP FASTENER HOUSING UPPER PART TO LOWER PART
999
CLIP13 MM, Replaced By: A0129884678
999
SEAL , FROM CHASSIS: 108.016 035214, ALSO INSTALLED ON: 034467,034500,034853,034928,034942,035068,035089,035127,035142,035155,035160,035164,035165,035200. 108.018,019 036081, ALSO INSTALLED ON: 035298,035333,035839,035870,035924,036016,036017,036025,036026,036033,036035,036038,036040,036044, 036045,036050. FROM CHASSIS:109.016 002222 109.056 000001
