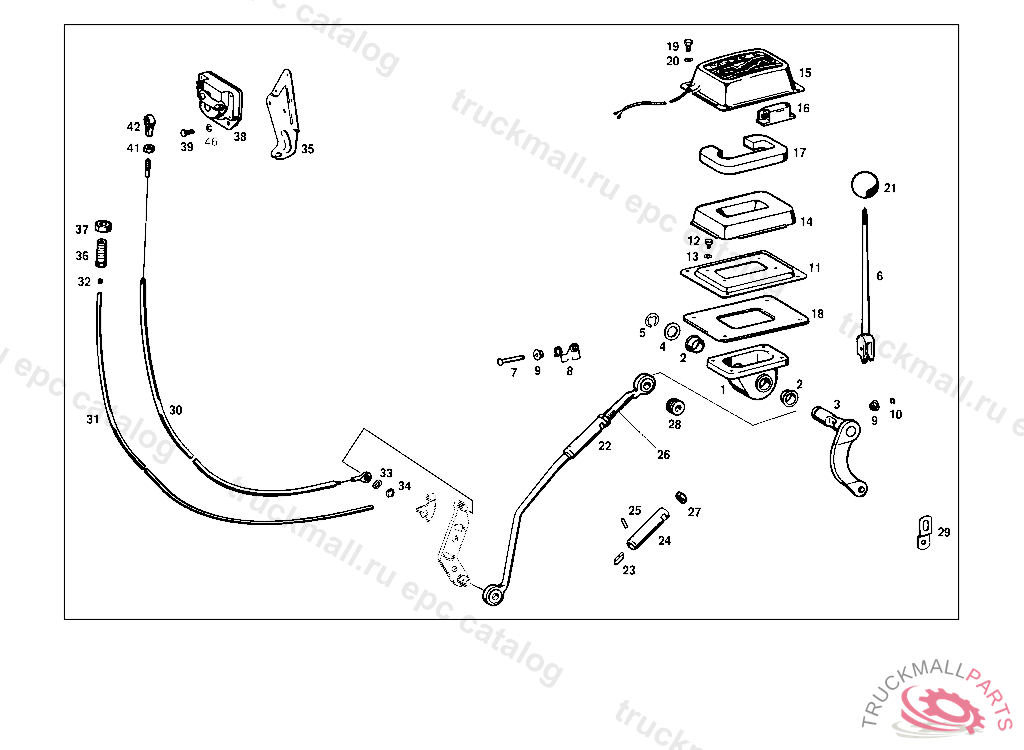

Поз.
Артикул
Описание
1
CASE
2
BUSHING
3
LEVER
4
WASHER
5
LOCK RING REVERSE SPEED STOP
6
SHIFT LEVER
7
PIN
8
SPRING
9
BUSHING
10
LOCK
11
BRACKET
12
SCREW SHUT-OFF VALVE TO BRACKET
13
LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET
14
BOOT
15
GUIDE PLATE
16
PLATE
17
SHIM
18
SHIM
19
SCREW COVER PLATE TO COVER PLATE M 6 X 12
19
SCREW , Replaced By: N304017006018
20
SPRING WASHER LICENSE PLATE TO BRACKET
21
HANDLE , 108.018,019 071883 EXCEPT FOR 071802,071873 109.016 UNTIL PRODUCTION STOP 109.056 003758 111.024,025 005065 111.026,027 002941
22
SHIFTING ROD
23
SEAL
24
GUIDE
25
RIVET
26
END PIECE
27
NUT
28
BUSHING
29
LOCK
30
WIRE CABLE
31
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
32
SEAL RING
33
SPRING WASHER LICENSE PLATE TO BRACKET
34
LOCK PLATE
35
BRACKET
36
SPACER TUBE
37
NUT
38
SWITCH,AUTOMATIC
39
SCREW COVER PLATE TO COVER PLATE M 6 X 10
39
SCREW , Replaced By: N304017006034
41
NUT CLAMP TO BRACKET
42
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
42
BALL SOCKET , Replaced By: A0009918922
46
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
BALL PIVOT
999
LOCK , Replaced By: N912002006000
999
SHIFTING ROD
999
LEVER , Replaced By: A1122600237
999
SHIFTING ROD , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1112606833
999
CASE
999
GUIDE PLATE , Replaced By: A1112600028
999
END PIECE
999
SHIM , Replaced By: A1112670084
999
SCREW
999
SHEET METAL SCREW , Replaced By: N000000002062
